Chapter 5. Front Panel Operation; Introduction; Figure 5-1. Cdm-750 Front Panel View - Comtech EF Data CDM-750 Installation And Operation Manual

5.1

Introduction

Feature Description
1 LED Indicators
2 Keypad
Vacuum
3 Fluorescent
Display (VFD)
4 Rack Handles
Chapter 5. FRONT PANEL
Function
The LEDs indicate, in a summary fashion, the status of the modem.
Enter data via the keypad. The keypad comprises six individual
keyswitches. The keys have a positive 'click' action that provides
tactile feedback. Data, prompts, and messages are displayed on
the VFD.
The VFD is an active display, with adjustable brightness, showing
two lines of 40 characters each. Nested menus display all available
options and prompts that guide you in carrying out required actions.
These handles allow easy placement into and removal from a rack.

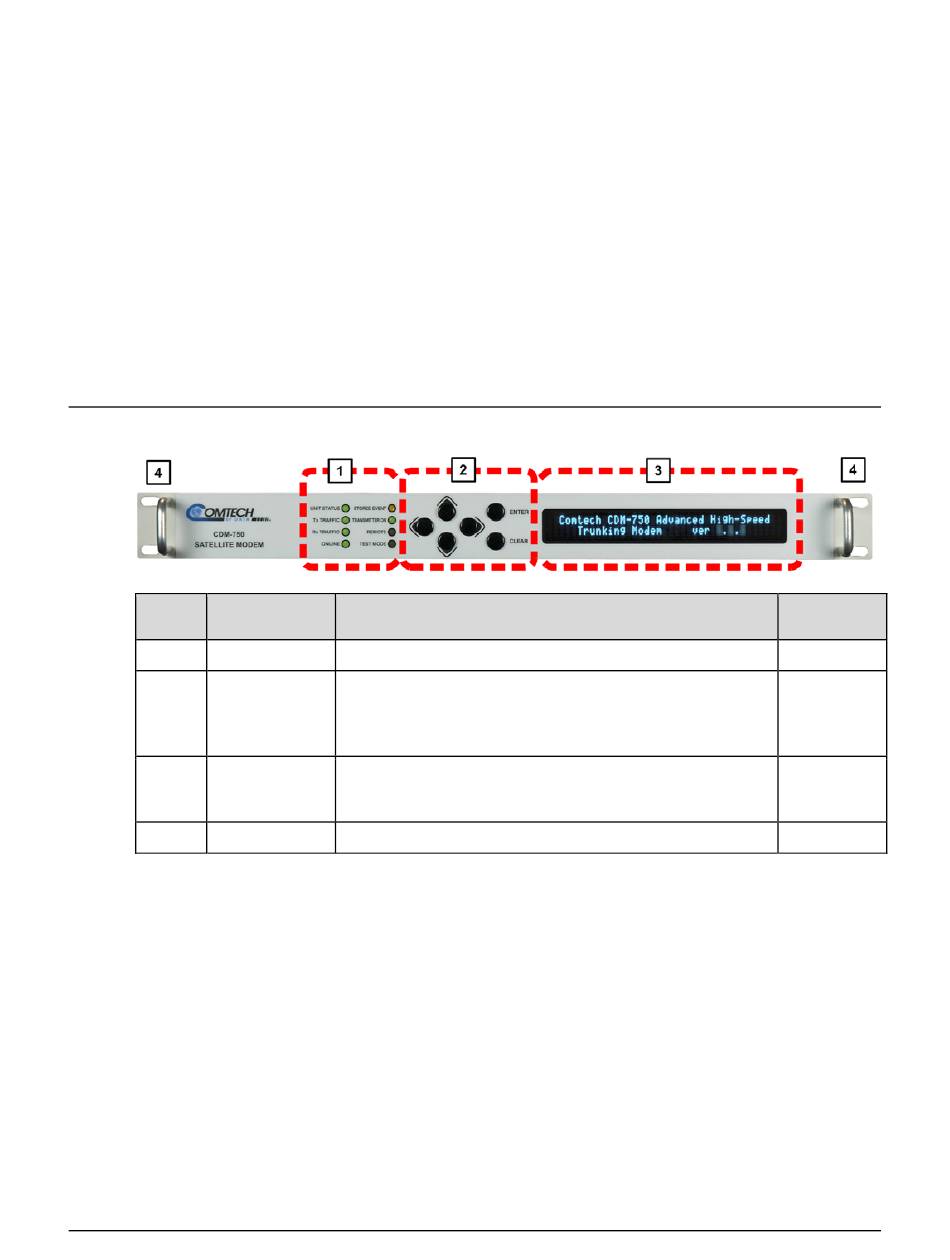

Figure 5-1. CDM-750 Front Panel View

5–1
OPERATION
See Chapter
Section...
5.1.1
5.1.2
5.1.3
2.2
