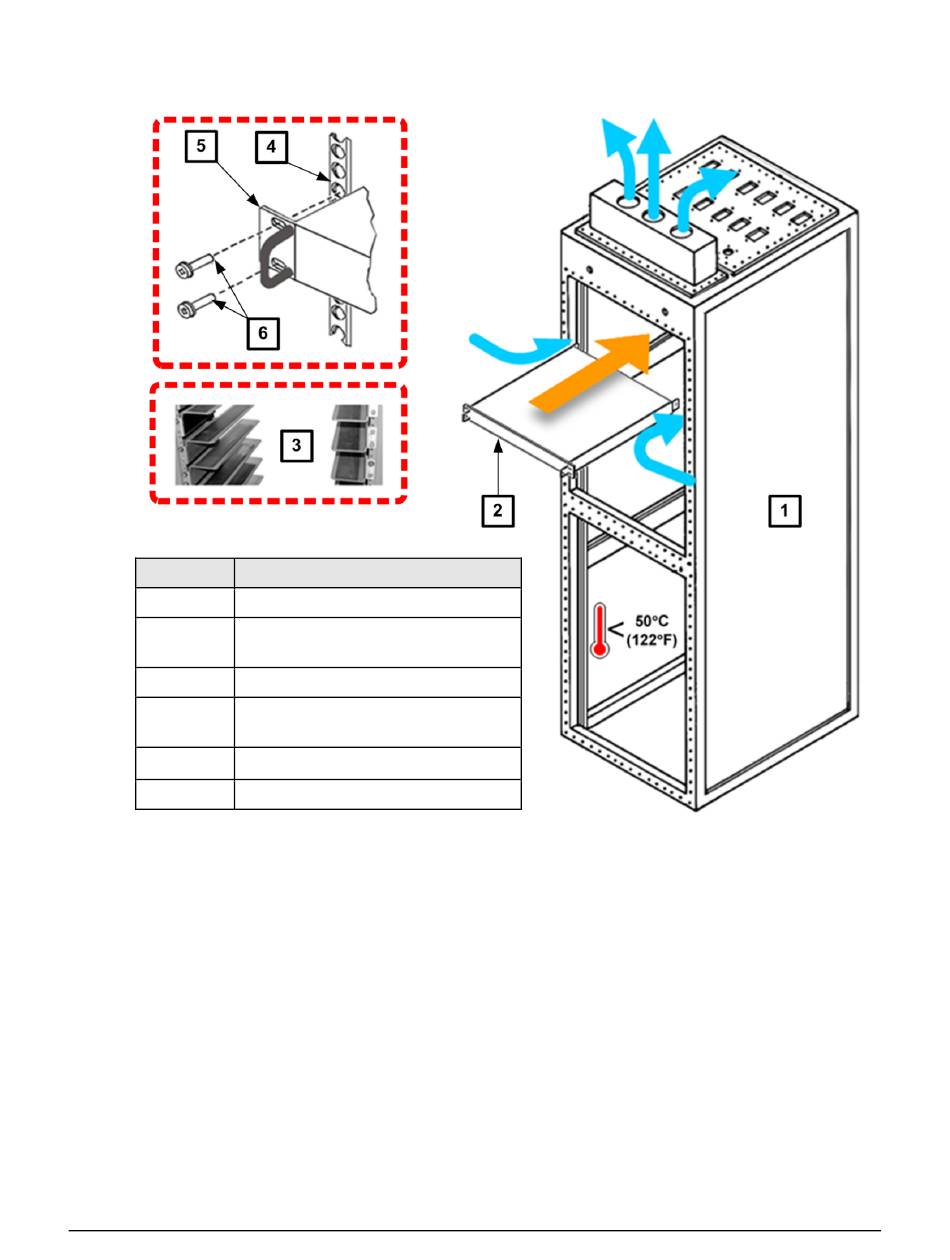

Figure 2-2. Installing Into A Rack Enclosure - Comtech EF Data CDM-750 Installation And Operation Manual

CDM-750 Advanced High-Speed Trunking Modem
Installation
Feature Description
1 Custom Rack Enclosure
CDM‐750 Advanced High‐Speed
2
Trunking Modem
3 Standard Rack Shelving
Rack Enclosure Threaded Front
4
Mounting Rail (typical)
5 Unit Front Panel
6 User‐supplied Screws
Mount the CDM‐750 in its assigned position in the rack enclosure. Use, as required:
•
A standard rack‐mounted shelf;
•
User‐supplied screws to secure the front panel to the rack enclosure threaded front
mounting rails;
•
Comtech EF Data's optional
Support Brackets Kit (
•
Comtech EF Data's optional FP/SL0006 Bearingless Rack Slide Set

Figure 2-2. Installing into a Rack Enclosure

KT‐0000168 (4") or KT‐0000195 (10") Rear‐Mounting
Figure 2‐3).
