CDM-750 Advanced High-Speed Trunking Modem
Appendix B
B.1.1
Typical PIIC Module Installation
Follow these steps to install the optional PIIC module(s) (Figure B‐1):
Step
Task
1
Remove the PIIC slot blank panel(s) by loosening the captive thumbscrews.
2
Install the PIIC module(s) into position using the chassis' internal card guides. Slide
the module straight back into the chassis until the module is firmly plugged into the
mating receptacle(s).
3
Secure the captive thumbscrews of the module(s).

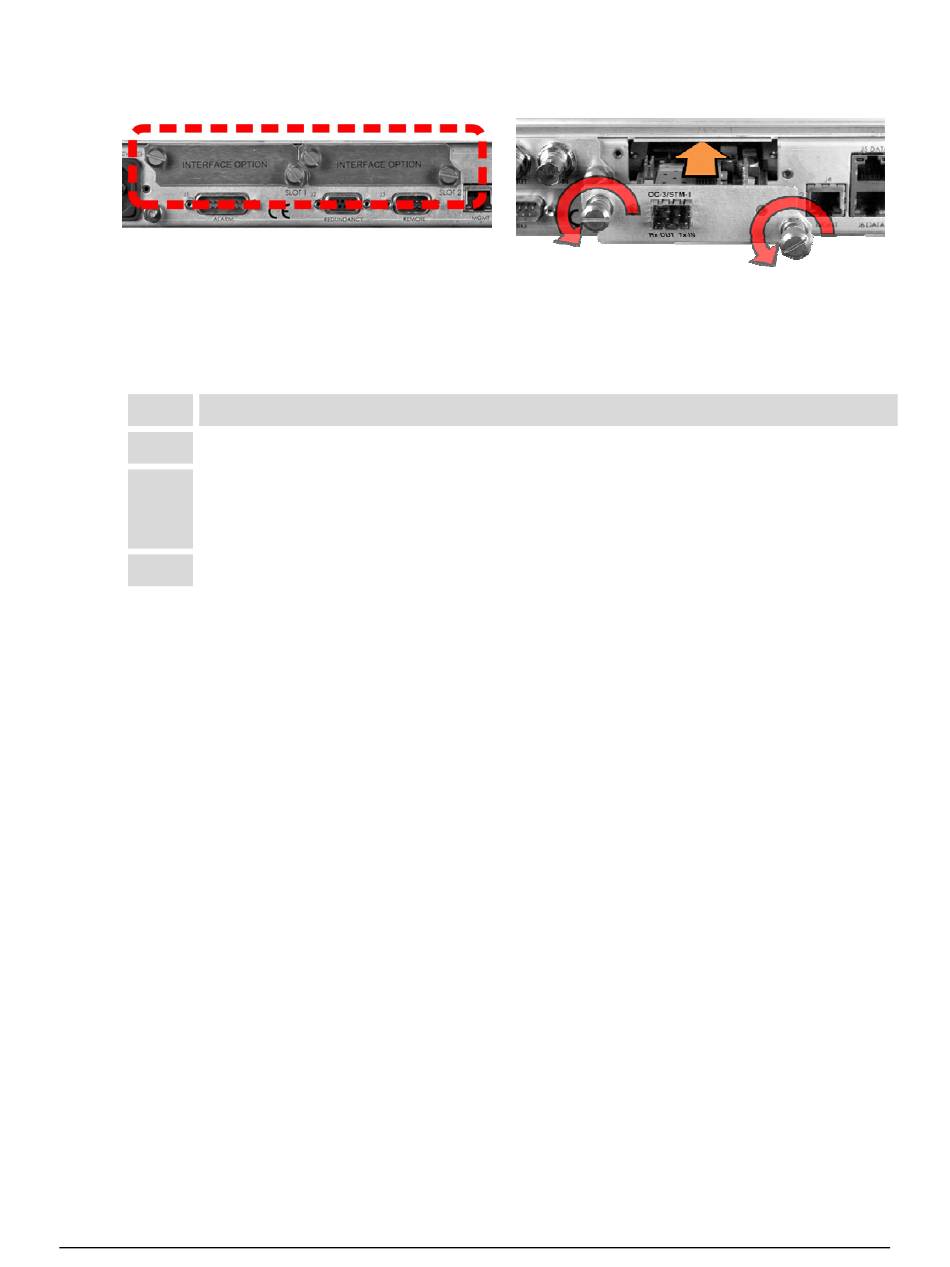

Figure B-1. Typical PIIC Module Installation
B–2
Revision 2
MN-CDM750
