CDM-750 Advanced High-Speed Trunking Modem
Appendix B
B.2

Optional PIIC Modules

B.2.1

G.703 E3/T3/STS-1 PIIC Module (CEFD P/N PL-0000795)

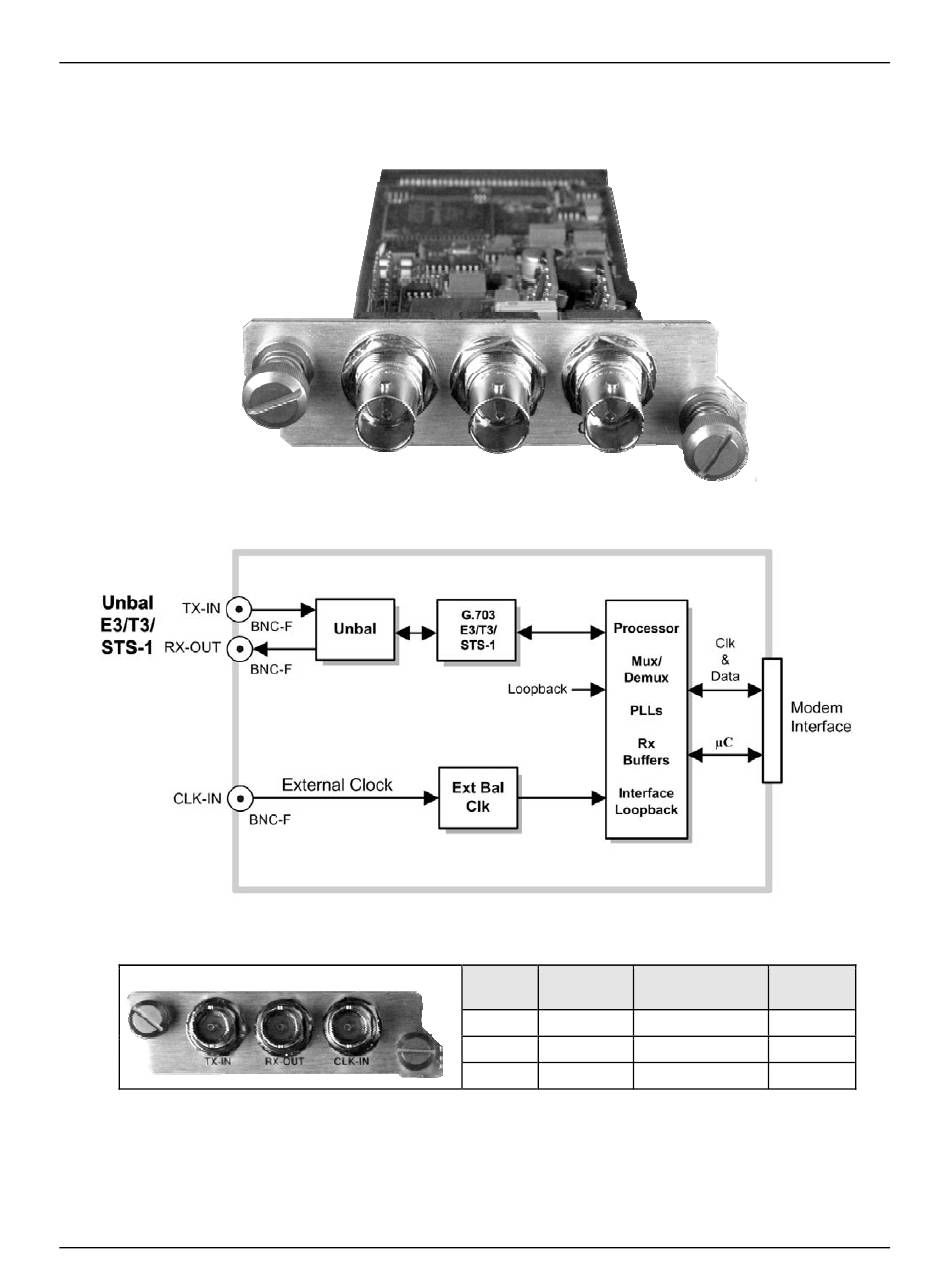

Figure B-3. G.703 E3/T3/STS-1 PIIC Module Block Diagram
Figure B-4. G.703 E3/T3/STS-1 PIIC Module Panel Connectors
Figure B-2. G.703 E3/T3/STS-1 PIIC Module
Name
TX-IN
TX-OUT
CLK-IN
B–4
Connector
Description
Type
BNC Data In
BNC Data Out
BNC External Clock Input
Revision 2
MN-CDM750
Direction
(I/O)
I
O
I
