CDM-750 Advanced High-Speed Trunking Modem
Front Panel Operation

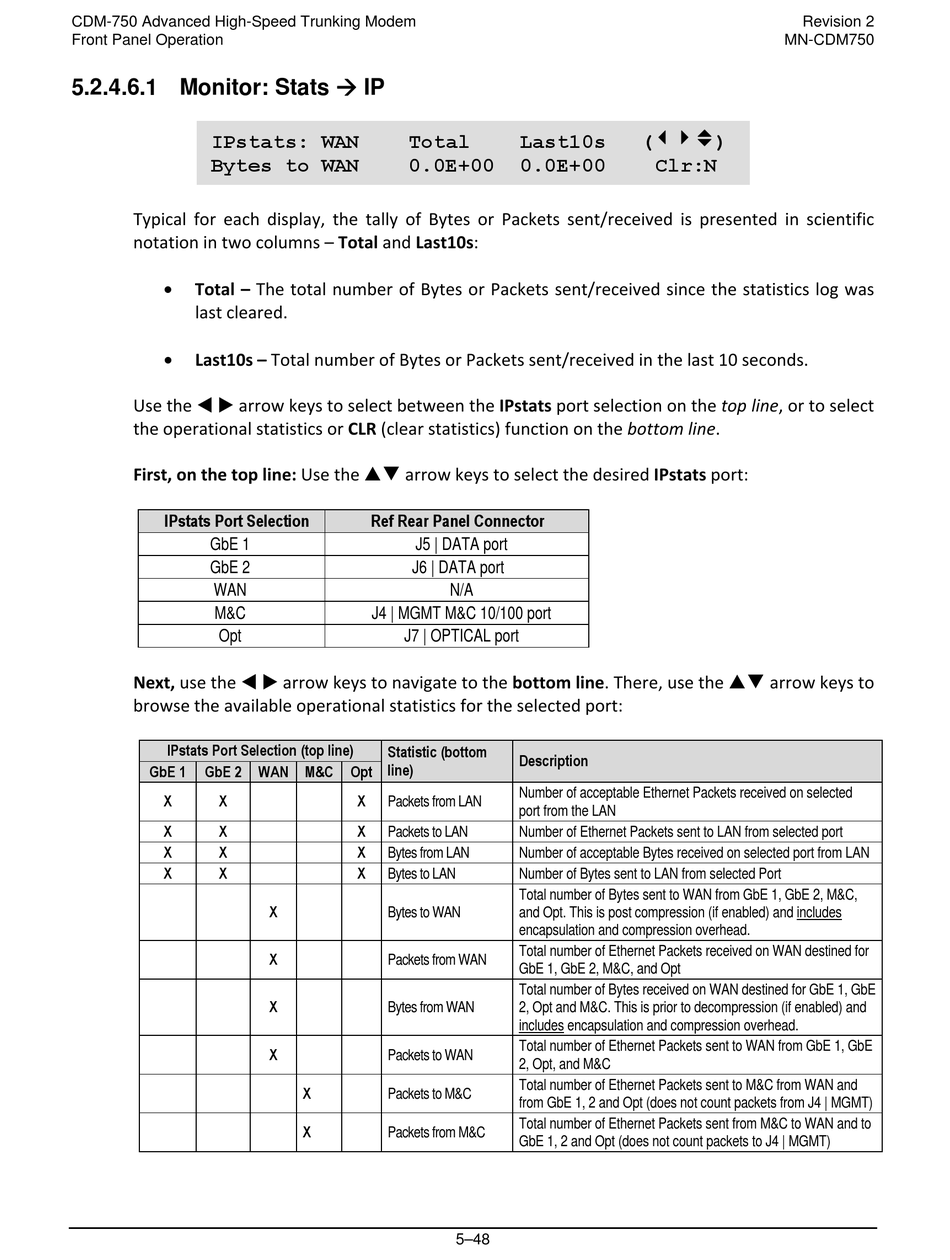

5.2.4.6.1 Monitor: Stats
IPstats: WAN
Bytes to WAN
Typical for each display, the tally of Bytes or Packets sent/received is presented in scientific
notation in two columns – Total and Last10s:
•
Total – The total number of Bytes or Packets sent/received since the statistics log was
last cleared.
•
Last10s – Total number of Bytes or Packets sent/received in the last 10 seconds.
Use the arrow keys to select between the IPstats port selection on the top line, or to select
the operational statistics or CLR (clear statistics) function on the bottom line.
First, on the top line: Use the
IPstats Port Selection
GbE 1
GbE 2
WAN
M&C
Opt
Next, use the arrow keys to navigate to the bottom line. There, use the
browse the available operational statistics for the selected port:
IPstats Port Selection (top line)
GbE 1 GbE 2
X X
X X
X X
X X
IP
Total
0.0E+00
arrow keys to select the desired IPstats port:
Ref Rear Panel Connector
J5 | DATA port
J6 | DATA port
J4 | MGMT M&C 10/100 port
J7 | OPTICAL port
Statistic (bottom
line)
WAN M&C Opt
X Packets from LAN
X Packets to LAN
X Bytes from LAN
X Bytes to LAN
X Bytes to WAN
X Packets from WAN
X Bytes from WAN
X Packets to WAN
X Packets to M&C
X Packets from M&C
Last10s
0.0E+00
N/A
Description
Number of acceptable Ethernet Packets received on selected
port from the LAN
Number of Ethernet Packets sent to LAN from selected port
Number of acceptable Bytes received on selected port from LAN
Number of Bytes sent to LAN from selected Port
Total number of Bytes sent to WAN from GbE 1, GbE 2, M&C,
and Opt. This is post compression (if enabled) and includes
encapsulation and compression overhead.
Total number of Ethernet Packets received on WAN destined for
GbE 1, GbE 2, M&C, and Opt
Total number of Bytes received on WAN destined for GbE 1, GbE
2, Opt and M&C. This is prior to decompression (if enabled) and
includes encapsulation and compression overhead.
Total number of Ethernet Packets sent to WAN from GbE 1, GbE
2, Opt, and M&C
Total number of Ethernet Packets sent to M&C from WAN and
from GbE 1, 2 and Opt (does not count packets from J4 | MGMT)
Total number of Ethernet Packets sent from M&C to WAN and to
GbE 1, 2 and Opt (does not count packets to J4 | MGMT)
5–48
Revision 2
MN-CDM750
(34v)
Clr:N
arrow keys to
