CDM-750 Advanced High-Speed Trunking Modem
Rear Panel Connections
3.3.3.1 DC Operation – Applying Power
To apply DC power to the CDM‐750, follow these steps (Figure 3‐11):
•
First, connect the user‐supplied (+) and (–) DC power leads to their respective terminals.
Number 18 AWG minimum wires are recommended.
•
Then, connect the user‐supplied DC power leads to the power source.
•
Finally, switch the unit ON.

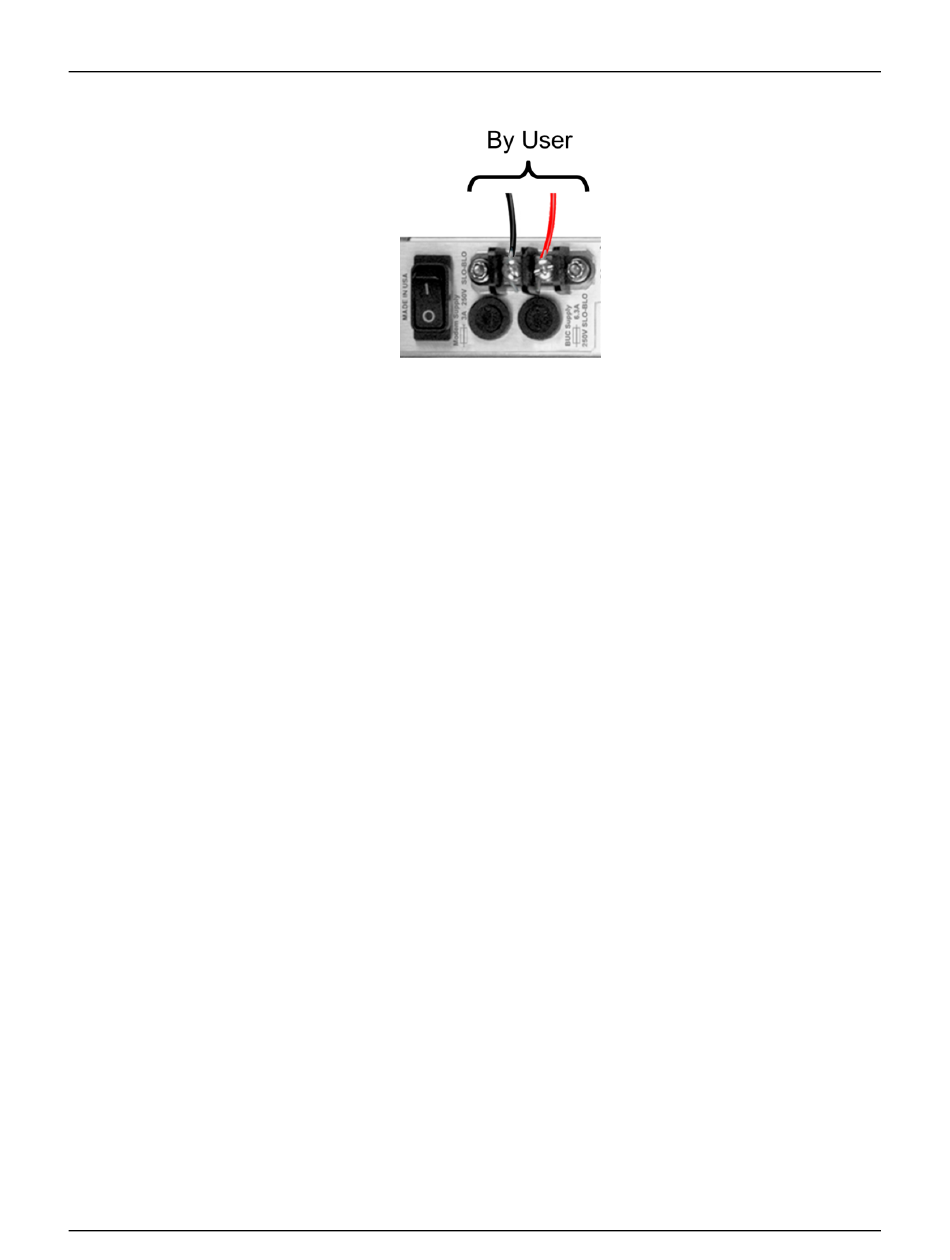

Figure 3-11. Applying DC Power to the CDM-750

3–18
Revision 2
MN-CDM750
