CDM-750 Advanced High-Speed Trunking Modem
Ethernet-based Remote Product Management
6.5.4.4
Status pages
The Status pages provide you with status, event logging, and operational statistics windows.
Click the Status navigation tab, and then select the Status, Logs, Info, Firmware, ACM, IP
Statistics, or BB Statistics page tab to continue.
6.5.4.4.1
Status | Status
Use this read‐only page to review and monitor information pertaining to:
•
Alarms Status
•
Rx Parameters
•
ACM Status
•
CnC (Carrier‐in‐Carrier) information (including Fractional CnC Counters)
•
General Operating Status (Redundancy and Unit Temperature)

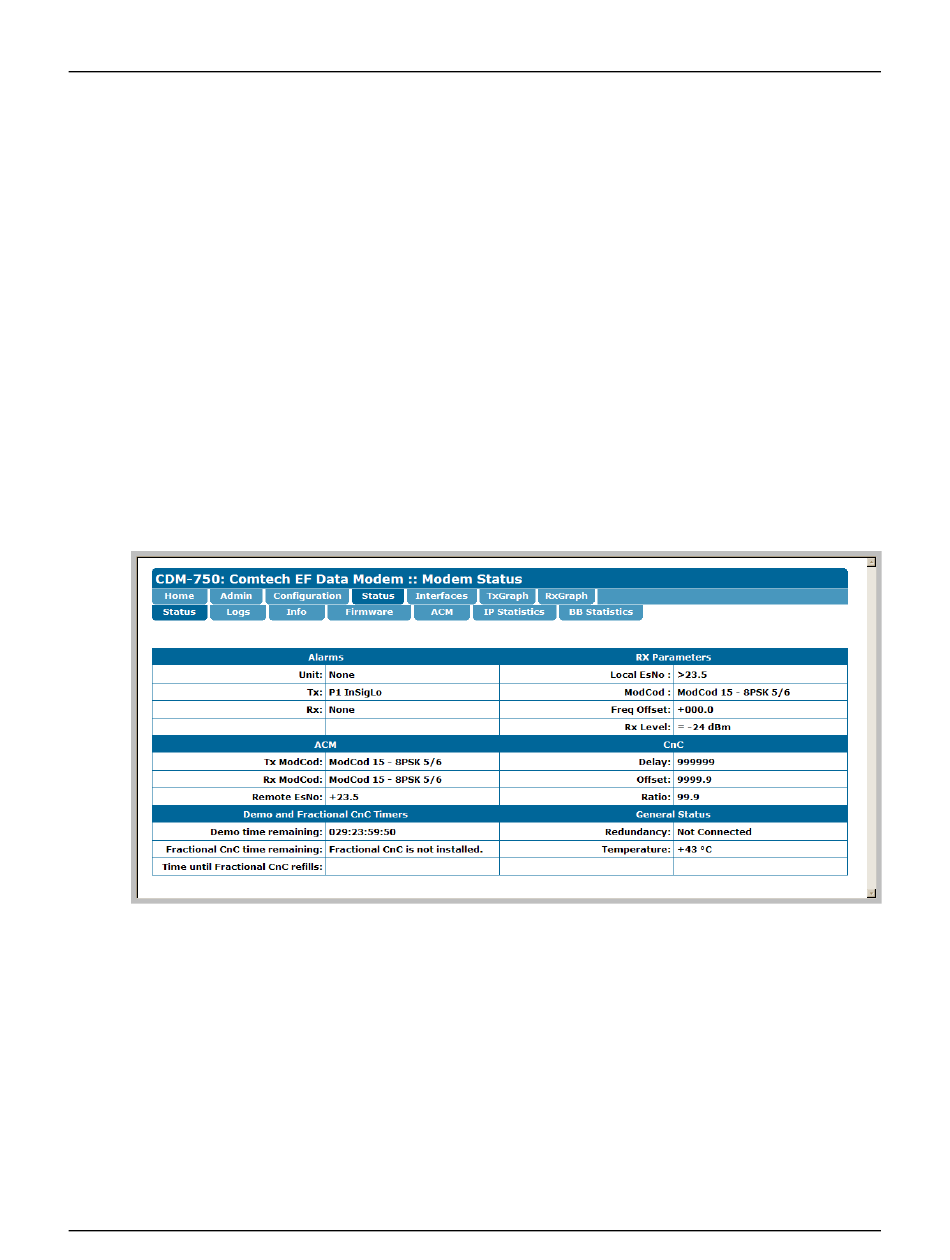

Figure 6-9. Status | Status page
6–19
Revision 2
MN-CDM750
