3.3.3 Terminal Locations - Frame size D

Take the following position of the terminals into consideration when you design for cables access.

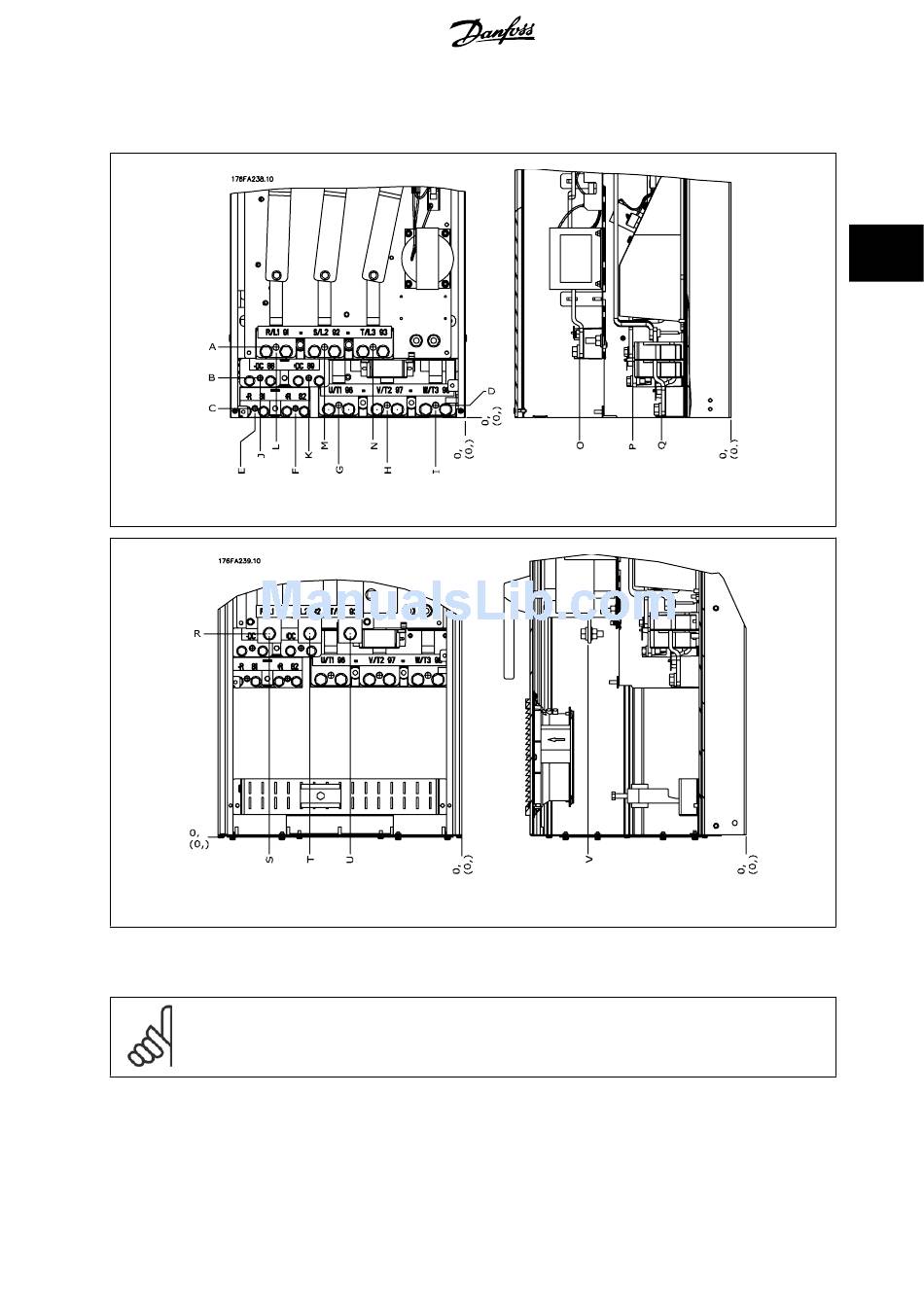

Illustration 3.9: Position of power connections, frame size D3 and D4
Illustration 3.10: Position of power connections with disconnect switch, frame size D1 and D2
Be aware that the power cables are heavy and hard to bend. Consider the optimum position of the frequency converter for ensuring easy installation of
the cables.
NB!
All D frames are available with standard input terminals or disconnect switch. All terminal dimensions can be found in the following
table.
