5. Select
System > Reader/Instrument Control > Synergy (Com<#>)
6. Click the
Dispenser
7. With Dispenser
The syringe should move down and up repeatedly, drawing fluid from the bottle.
The fluid should pump through the tubing and dispense into the priming plate.
Examine the fittings; no leaks should be detected.
If leaks are detected, tighten all fittings and repeat the prime. If leaks are still
detected, contact BioTek's Technical Assistance Center.
8. When the prime finishes, set
lines.
9. Set Dispenser
10. When finished, remove and empty the priming plate.
11. Close the software.
The installation and setup process is complete! Turn to the next page to read about
Operational/Performance Qualification
Synergy HT Operator's Manual

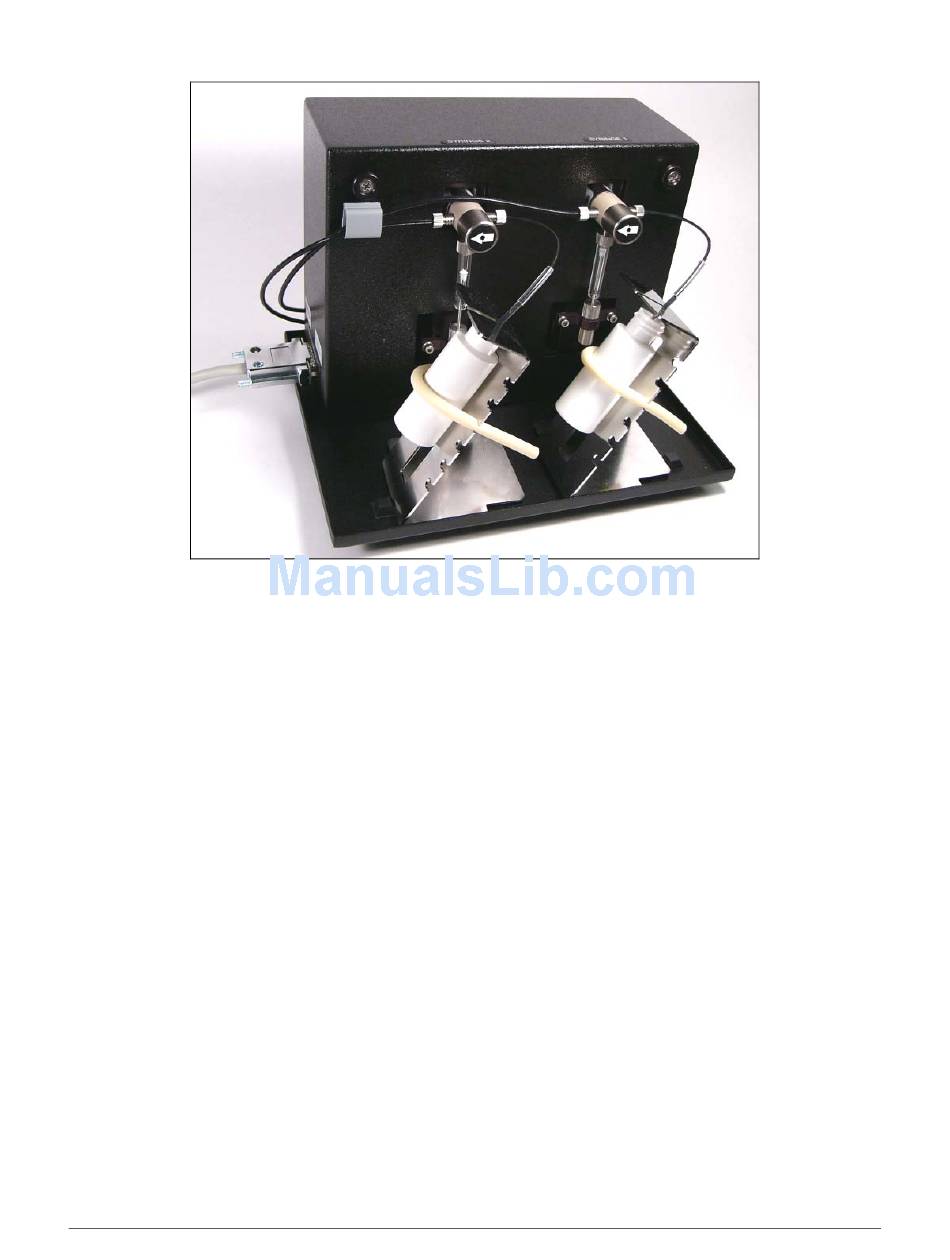

Figure 18: The fully assembled dispense module
tab.
set to 1 , set the Volume
Volume
to 2 and repeat steps 7 and 8.
14: Test the Injector System |
to 5000 µl and click
to 2000 µL and click
.
Prime .
Purge to clear the fluid
