Chapter 5: Preventive Maintenance
|

Removing the Internal Tubes and Injector Heads

Take a moment to identify the components described in this section:
Cable clamp
for holding the
tubes in place

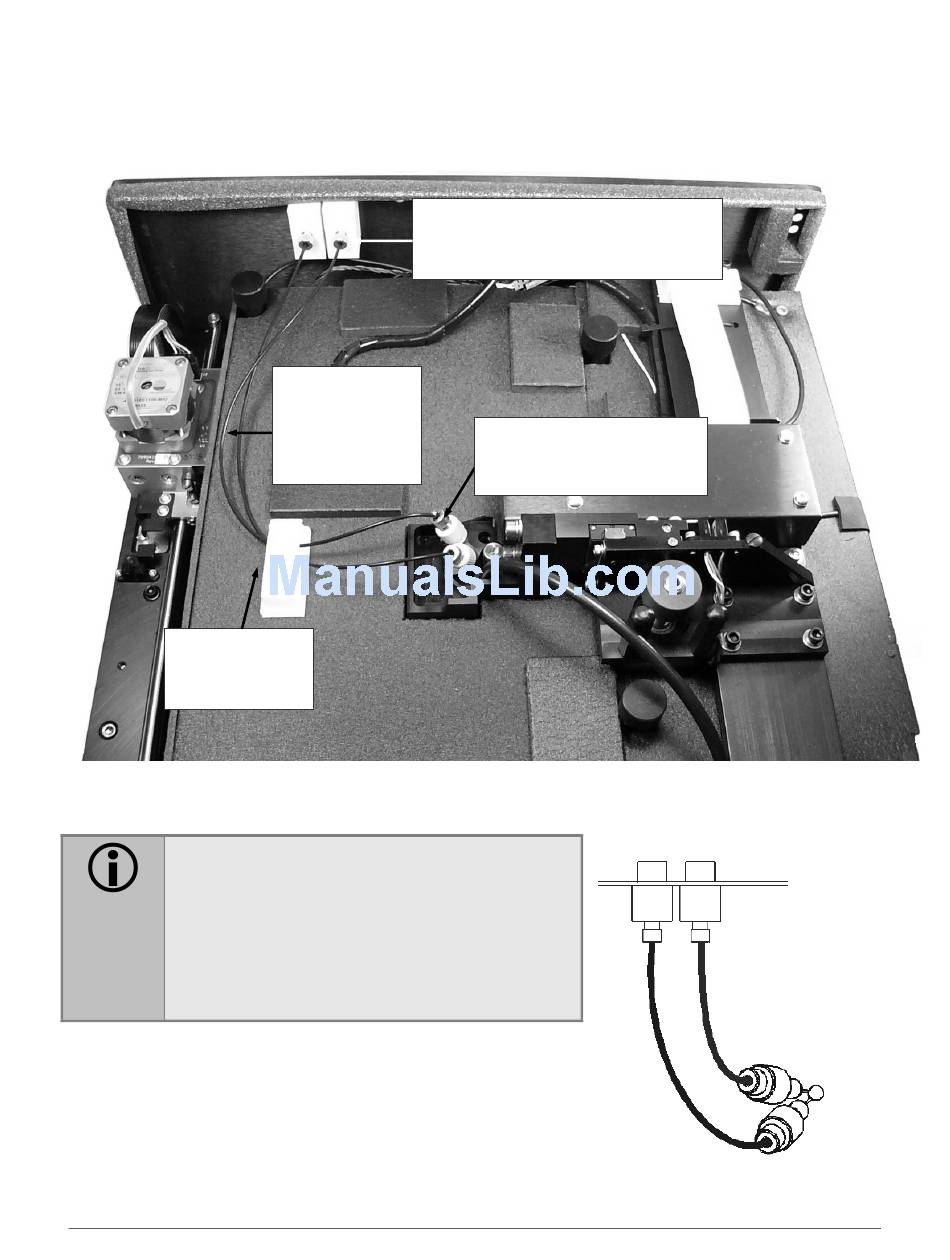

Figure 31: Internal components for the injection system
Important!
internal dispense tubes, be sure to
align the tubing ports with the injector
heads as shown in this diagram. Look
for the
labels on the instrument's rear panel.
Tubing ports (2) for connecting
the two internal dispense tubes to
the two external dispense tubes
Internal tubes
(2, black) for
delivering fluid
to the injector
heads
When reinstalling the
SYRINGE 1
and
SYRINGE 2
Injector heads
(2, white) for dispensing
fluid into microwells
SYRINGE 1 SYRINGE 2
