[309] Position comparator (long)

Type
L Comparative val-
I1
ue 1
L Comparative val-
I2
ue 2
I3 b Master-Set
b Master Reset
I4
Description:
This function compares inputs I1 and I2. This function is intended for long variables (positions,
ramps of table positioning).
O1 is TRUE if I1 > I2.
O1 is FALSE if I1 < I2.
If a hysteresis (P1 and P2) is set up:
O1 is TRUE if I1 > (I2 + P1).
O1 is FALSE if I1 < (I2 - P2).
O1 remains unchanged if I1 is in the range of the hysteresis: (I2 - P2) < I1 < (I2 + P1).

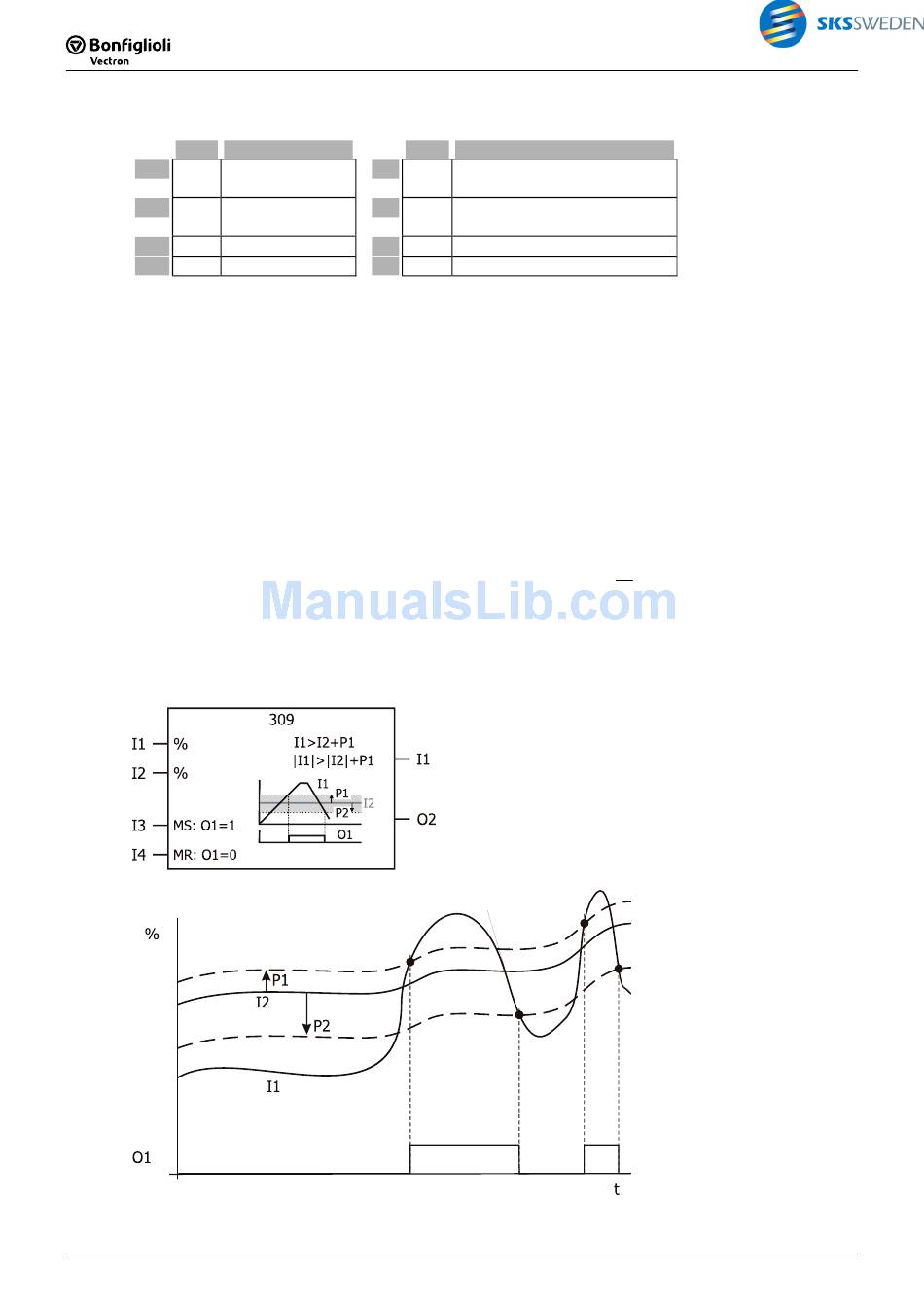

The comparator has three working ranges:
Range 1
Range 2
Range 3 I1 < (I2 - P2)
The output value can be changed by means of the two Boolean inputs:
− Master Set sets output O1 to TRUE.
− Master Reset sets output O1 to FALSE. Master Reset has priority over Master Set.
82
82
Function Type
b
O1
b
O2
P1 %
%
P2
(I2 + P1) < I1
(I2 - P2) < I1 < (I2 + P1)
VPLC / PLC
VPLC / PLC
Function
Output I1 > I2
O1 inverted
positive hysteresis (low word)
negative hysteresis (low word)
O1 = TRUE
O1 remains unchanged.
O1 = FALSE
O2 = O 1
