2.3.6

Settings: Inputs, outputs and function block

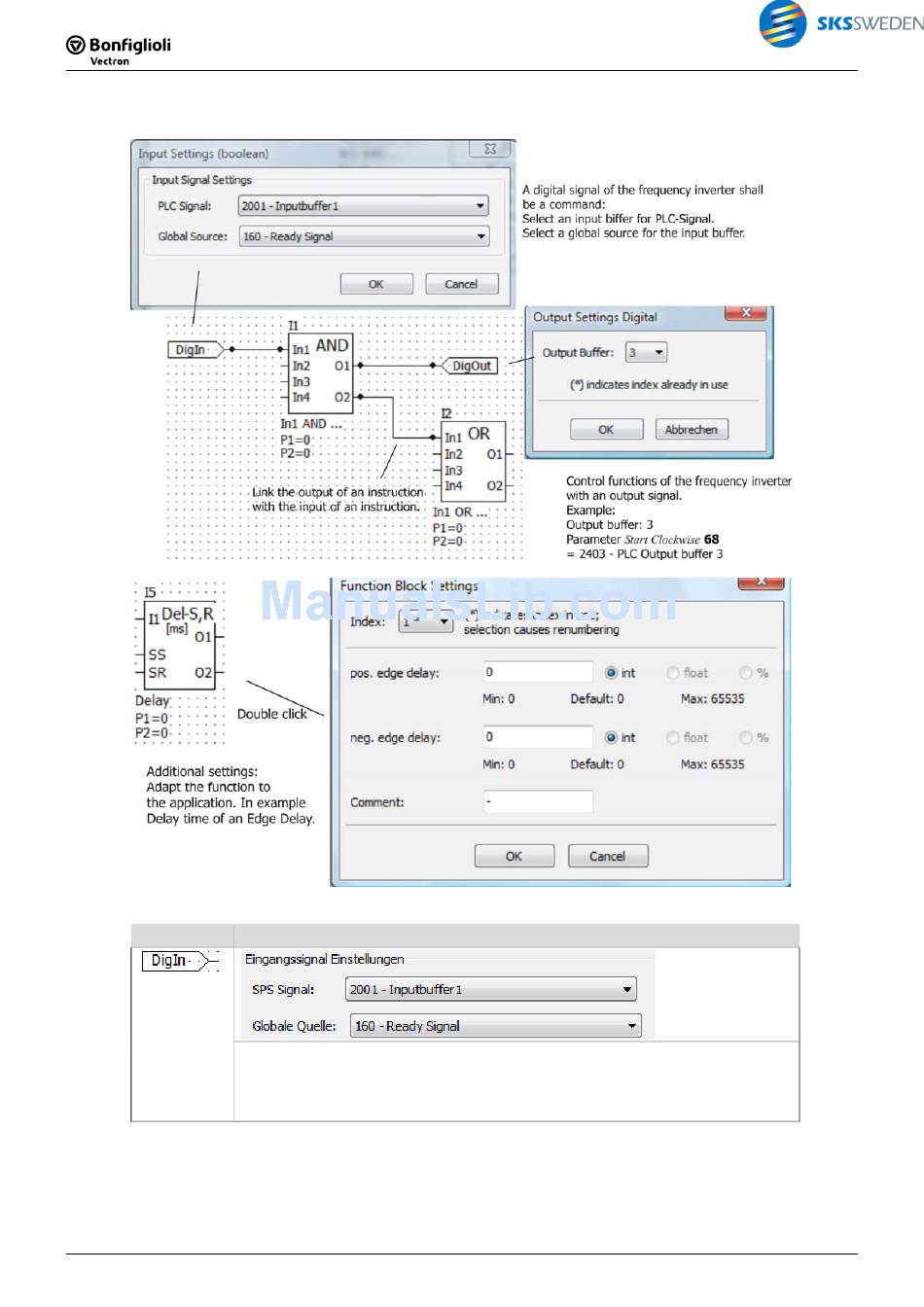

In the editor, double-click a block. The dialog window will be opened.
Block
18
18
Dialog window
Assign a digital signal at the control terminals of the frequency inverter or a
control signal to an input of a digital function block.
• Select an input buffer for the PLC signal.
Select a digital signal as the global source.
•
VPLC / PLC
VPLC / PLC
