4.1

Superior/Master

Most instructions also enable setting of selective output statuses by overriding inputs. This may
be used, for example, for initialization of a plant status.
There are two variants of instructions with overriding inputs.
Superior
− The function sequence is processed further internally in the instruction. The overriding in-
puts change the instruction output only for the time in which the overriding signal is present.
− During the set/reset phase, edges will also be detected and processed internally. If the Su-
perior Set/Superior Reset Signal is no longer present, the output will take the value which
would result without the Set/Reset Phase.

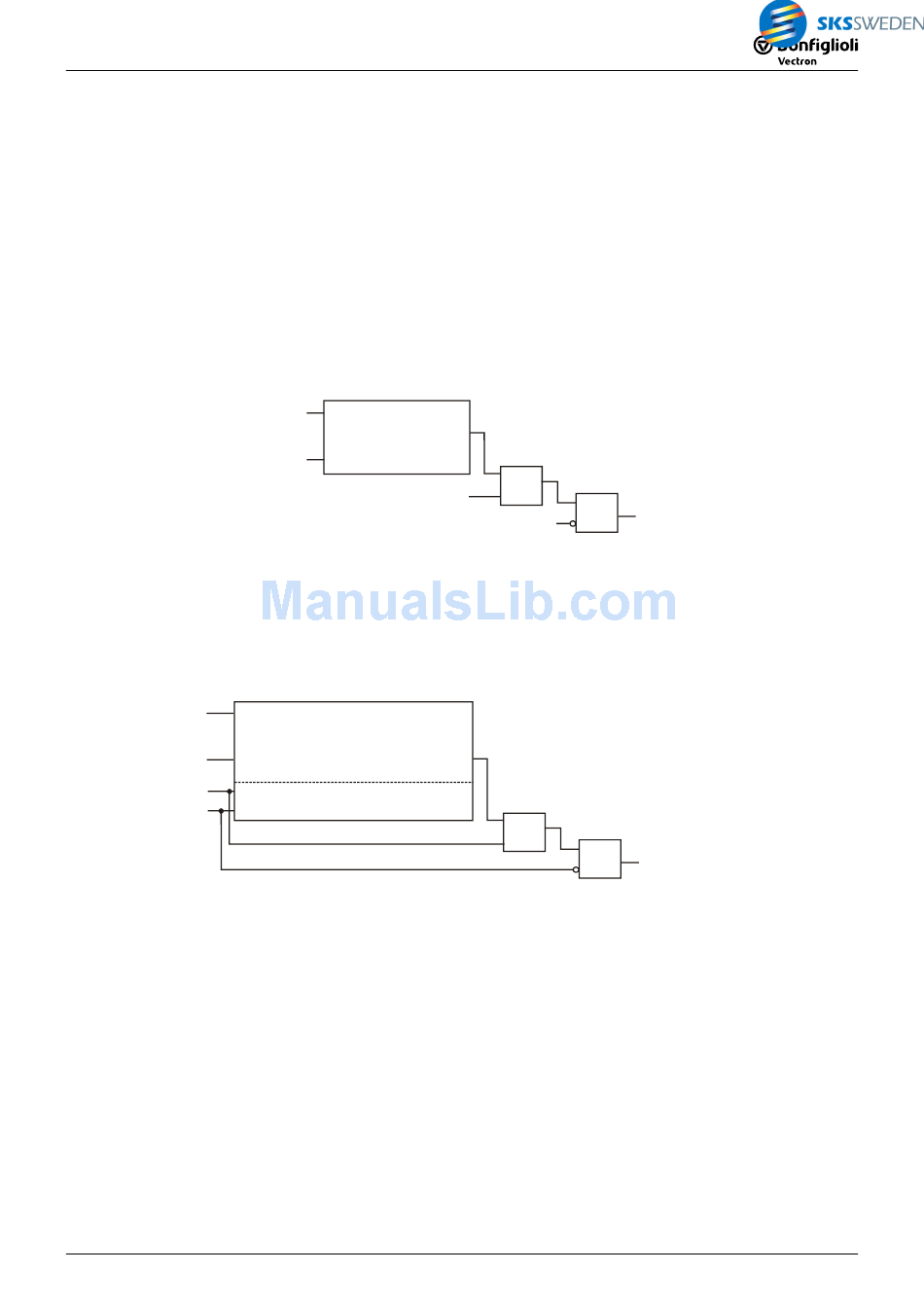

− The processing sequence can be compared to a series connection of the function and a logic
AND operation with the superior inputs.
Master
− The function sequence is interrupted. The overriding inputs change the instruction output as
from the time at which the overriding signal is present.
Set/Reset signals are not evaluated as long as a Master-Set/Master-Reset is present.
−
The processing sequence can be compared to a parallel connection of the function and the
−
master inputs.
Input 1
Input 2
Master Set
Master Reset
Superior
Superior-Set
Superior Reset
4.2

P1 and P2 for chronological behavior and jump target

The chronological behavior of the instructions or a jump target can be set up via P1 and P2.
08/10
08/10
FlipFlop
Input 1
Delay
Clock generator
Input 2
...
Superior Set
FlipFlop
Delay
Clock generator
...
Reset Timer
Master
Master-Set TRUE at Superior-Set/Master-Set switches instruction out-
put 1 to TRUE directly.
Master Reset TRUE at Superior-Reset/Master-Reset switches instruction
output 1 to FALSE directly. Reset has a higher priority than
set.
>
1
=
&
Superior Reset
> 1
=
&
VPLC / PLC
VPLC / PLC
Output
Output
