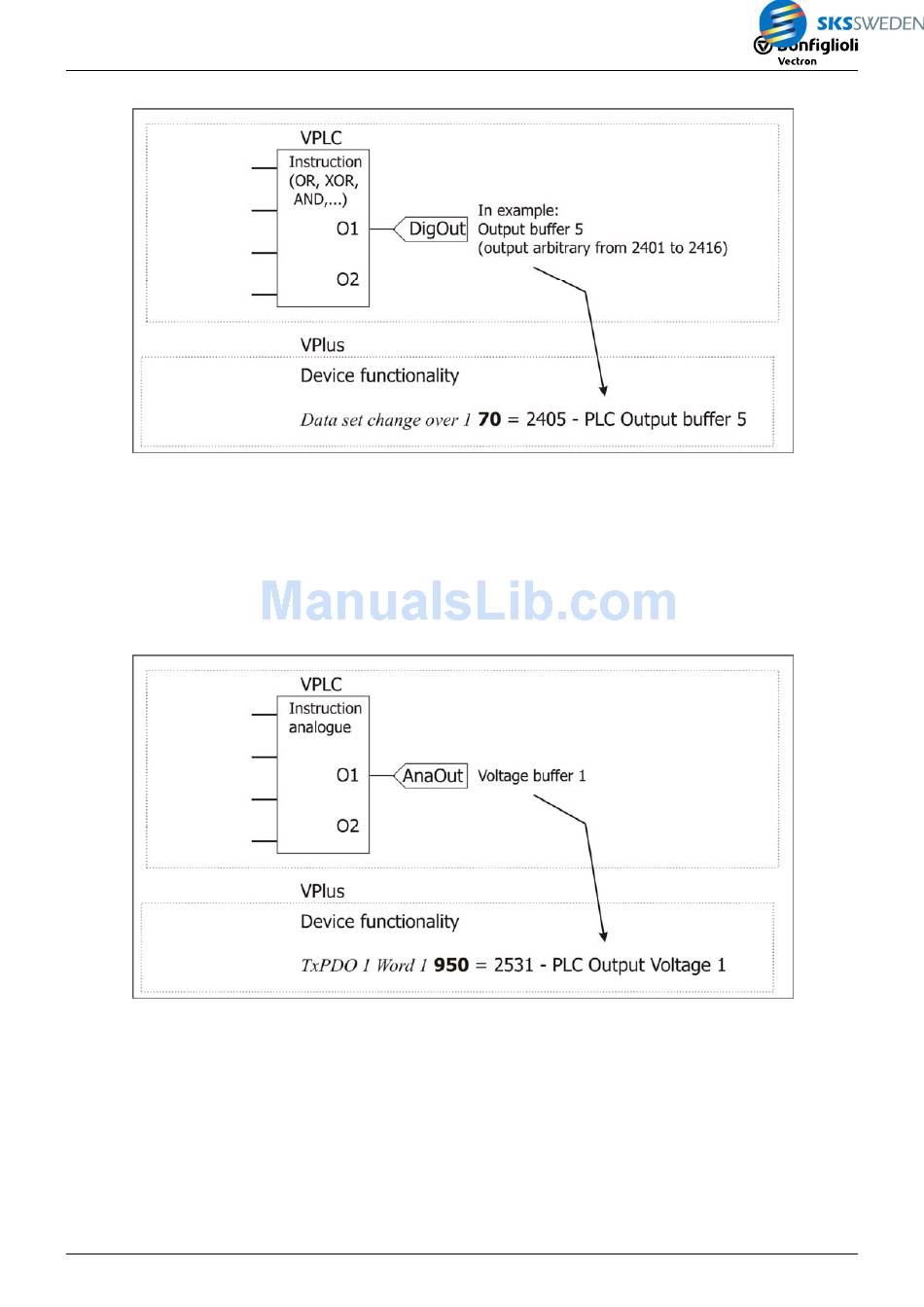

Select an output buffer for the output of the instructions, e. g. output buffer 5.
•
As a result, the signal source is generally (globally) available for processing by other device
functions. It is also possible to choose another signal source from signal sources 2401 to
2416 for the parameter.
• For parameter
Example 3: The output value of instruction 1 is to be transmitted via system bus. Depending
on the device series, an extension module with system bus must be installed.
08/10
08/10
Switch Data Set 1
70, select signal source "2405 - FT-Output buffer 5".
