5.2

Comparators

5.2.1

[301,302] Comparator (comparison of two variables)

Typ
e
% Comparative
I1
value 1
I2 % Comparative
value 2
b Master-Set
I3
I4 b Master Reset

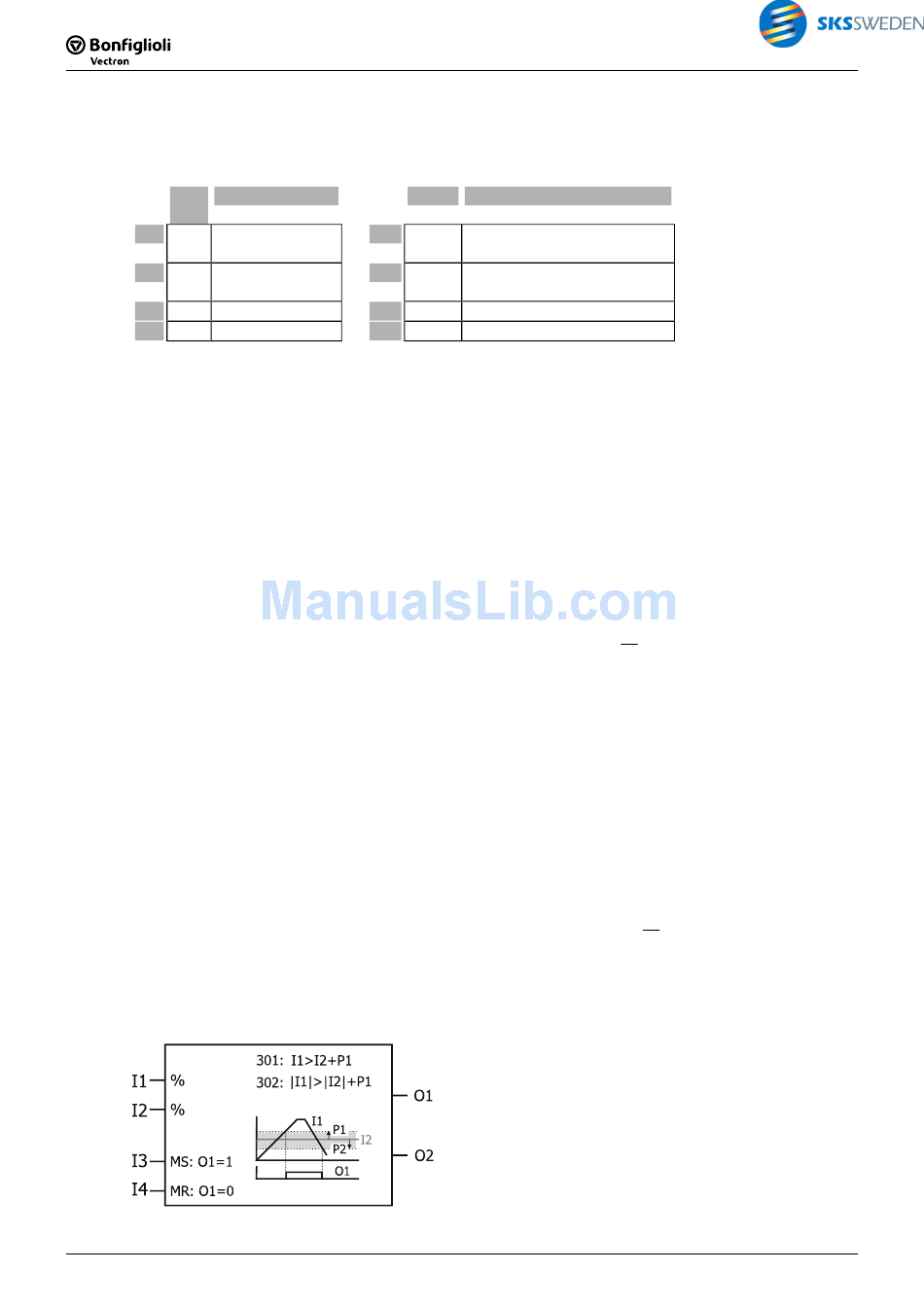

Comparison of two variables
Description:
This function compares inputs I1 and I2.
O1 is TRUE if I1 > I2.
O1 is FALSE if I1 < I2.
If a hysteresis (P1 and P2) is set up:
O1 is TRUE if I1 > (I2 + P1).
O1 is FALSE if I1 < (I2 - P2).
The comparator has three working ranges:
Range 1
Range 2
Range 3
Description:
This function compares the absolute values of inputs I1 and I2.
O1 is TRUE if |I1| > |I2|.
O1 is FALSE if |I1| < |I2|.
If a hysteresis (P1 and P2) is set up:
O1 is TRUE if |I1| > (|I2| + P1).
O1 is FALSE if |I1| < (|I2| - P2).
The comparator has three working ranges:
Range 1
Range 2
Range 3
The output value can be changed by means of the two Boolean inputs I3 and I4:
Master Set sets output O1 to TRUE.
Master Reset sets output O1 to FALSE. Master Reset has priority over Master Set.
78
78
Function Type
b
O1
O2 b
%
P1
P2 %
(I2 - P2) < I1 < (I2 + P1)
I1 < (I2 - P2)
(|I2| - P2) < |I1| < (|I2| + P1)
|I1| < (|I2| - P2)
Function
Output I1 > I2
O1 inverted
positive hysteresis (xxx.xx%)
negat. hysteresis (xxx.xx%)
(I2 + P1) < I1 O1 = TRUE
O1 remains unchanged.
O1 = FALSE
O2 =
(|I2| + P1) < |I1|
VPLC / PLC
VPLC / PLC
O 1
O1 = TRUE
O1 remains unchanged.
O1 = FALSE
O2 = O 1
