4.4.4

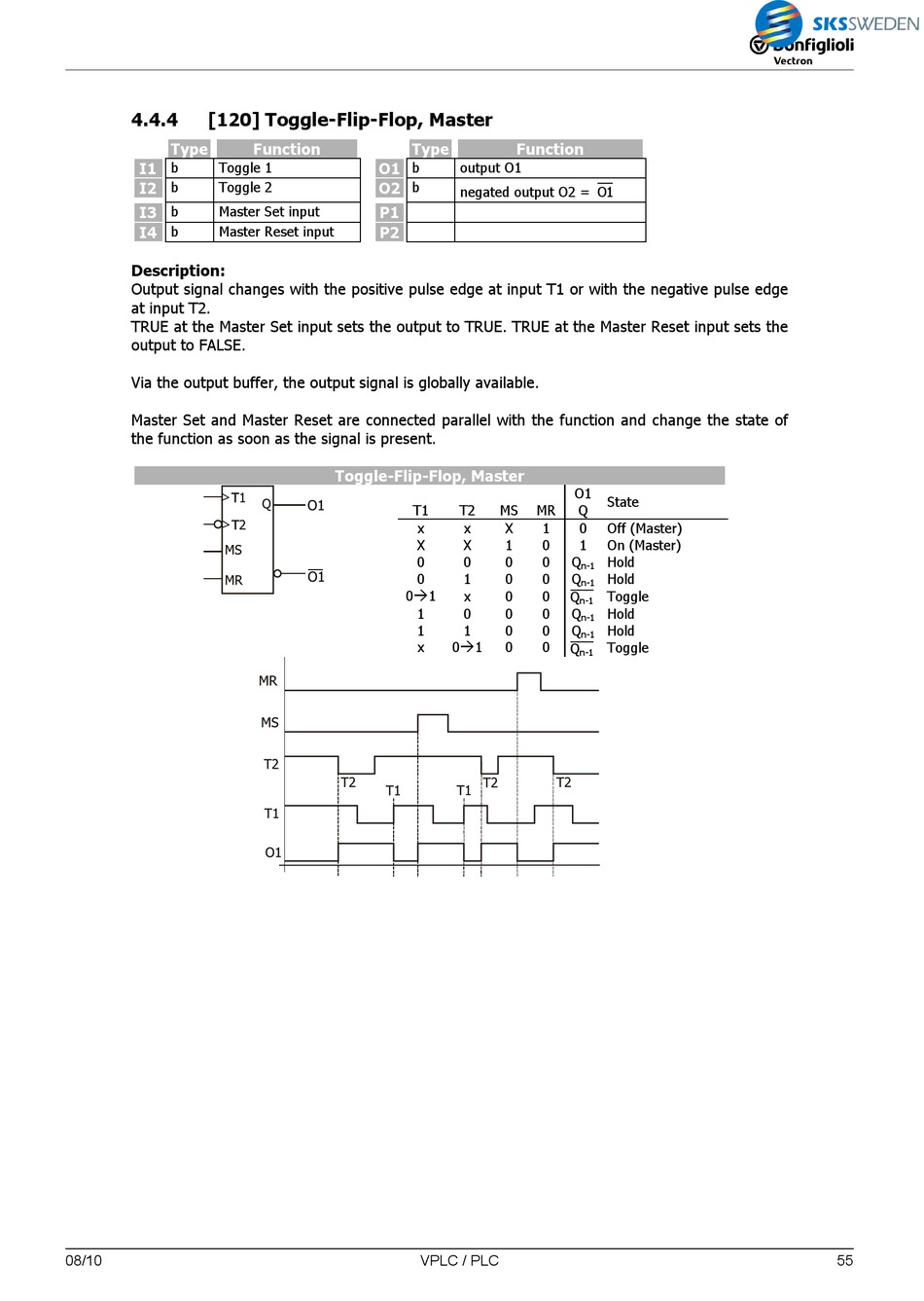

[120] Toggle-Flip-Flop, Master

Type
b Toggle 1
I1
I2 b Toggle 2
I3 b Master Set input
b Master Reset input
I4
Description:
Output signal changes with the positive pulse edge at input T1 or with the negative pulse edge
at input T2.
TRUE at the Master Set input sets the output to TRUE. TRUE at the Master Reset input sets the
output to FALSE.
Via the output buffer, the output signal is globally available.
Master Set and Master Reset are connected parallel with the function and change the state of
the function as soon as the signal is present.
08/10
08/10
Function Type
b
O1
O2 b
P1
P2
Toggle-Flip-Flop, Master
T1
x
X
0
0
0
1
1
x
VPLC / PLC
VPLC / PLC
Function
output O1
negated output O2 = O
O1
T2 MS MR Q
x X 1 0
X 1 0 1
0 0 0 Q
n-1
1 0 0 Q
n-1
1 x 0 0 ¯¯¯ Toggle
Q
n-1
0 0 0 Q
n-1
1 0 0 Q
n-1
0 1 0 0 ¯¯¯ Toggle
Q
n-1
1
State
Off (Master)
On (Master)
Hold
Hold
Hold
Hold
