4.3.3

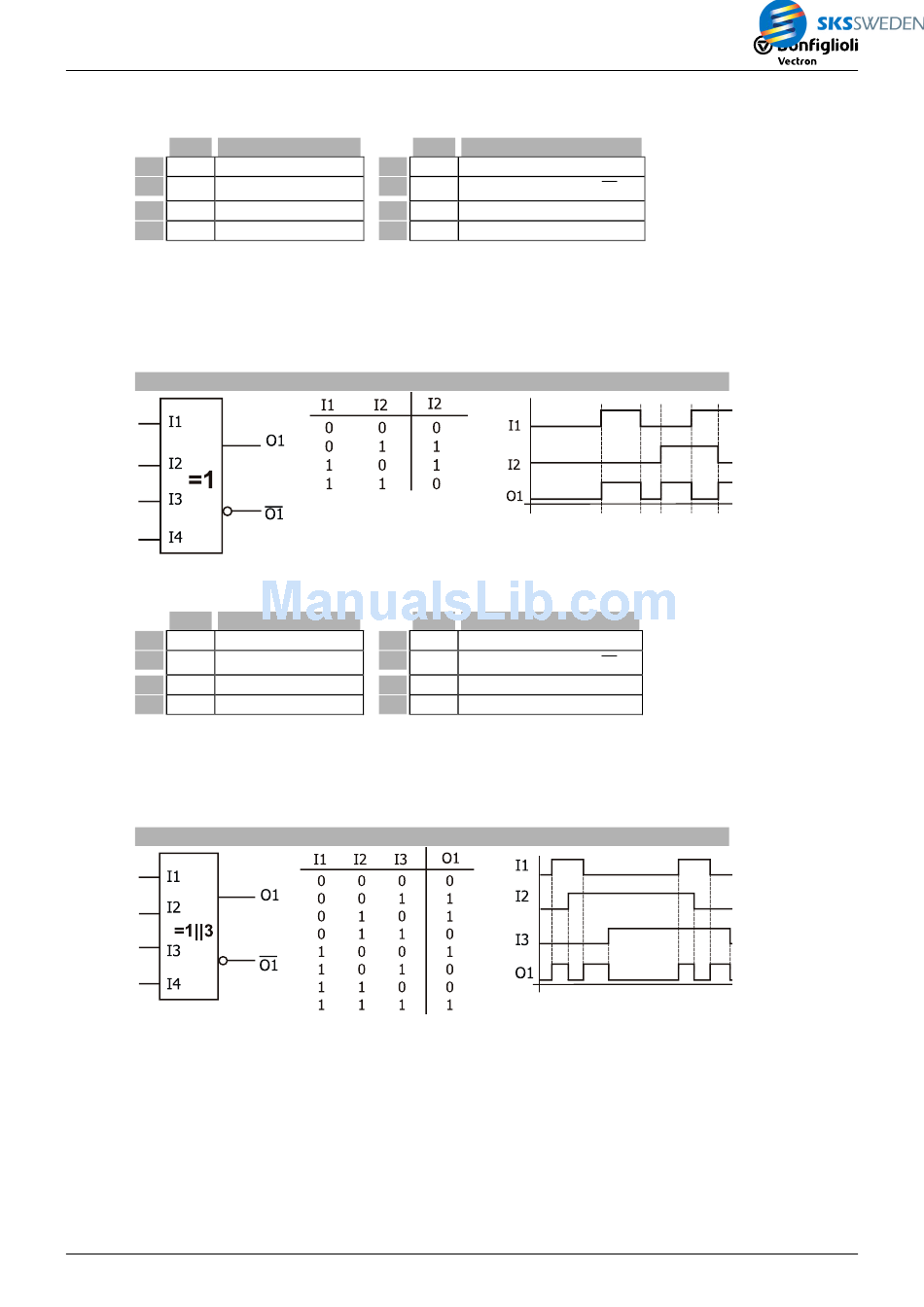

[3] XOR 1 operation

Type
I1 b input value 1
b input value 2
I2
b input value 3
I3
I4 b input value 4
Description:
The inputs are XOR-linked to one another. The inputs of the instruction are the assigned signal
sources. Output is logic TRUE if exactly one input is TRUE. Via the output buffer, the output
signal is globally available.
4.3.4

[4] XOR 1||3 operation

Type
I1 b input value 1
b input value 2
I2
I3 b input value 3
b input value 4
I4
Description:
The inputs are XOR-linked to one another. The inputs of the instruction are the assigned signal
sources. The output is TRUE if TRUE is present on an odd number of inputs. Via the output
buffer, the output signal is globally available.
08/10
08/10
Function Type
O1 b
b
O2
P1
P2
XOR 1 operation
Function Type
O1 b
b
O2
P1
P2
XOR 1||3 link
VPLC / PLC
VPLC / PLC
Function
O1 = XOR1 (I1 I2 I3 I4)
negated output O2 = O 1
Function
O1 = XOR3 (I1 I2 I3 I4)
negated output O2 = O 1
