5.8.2

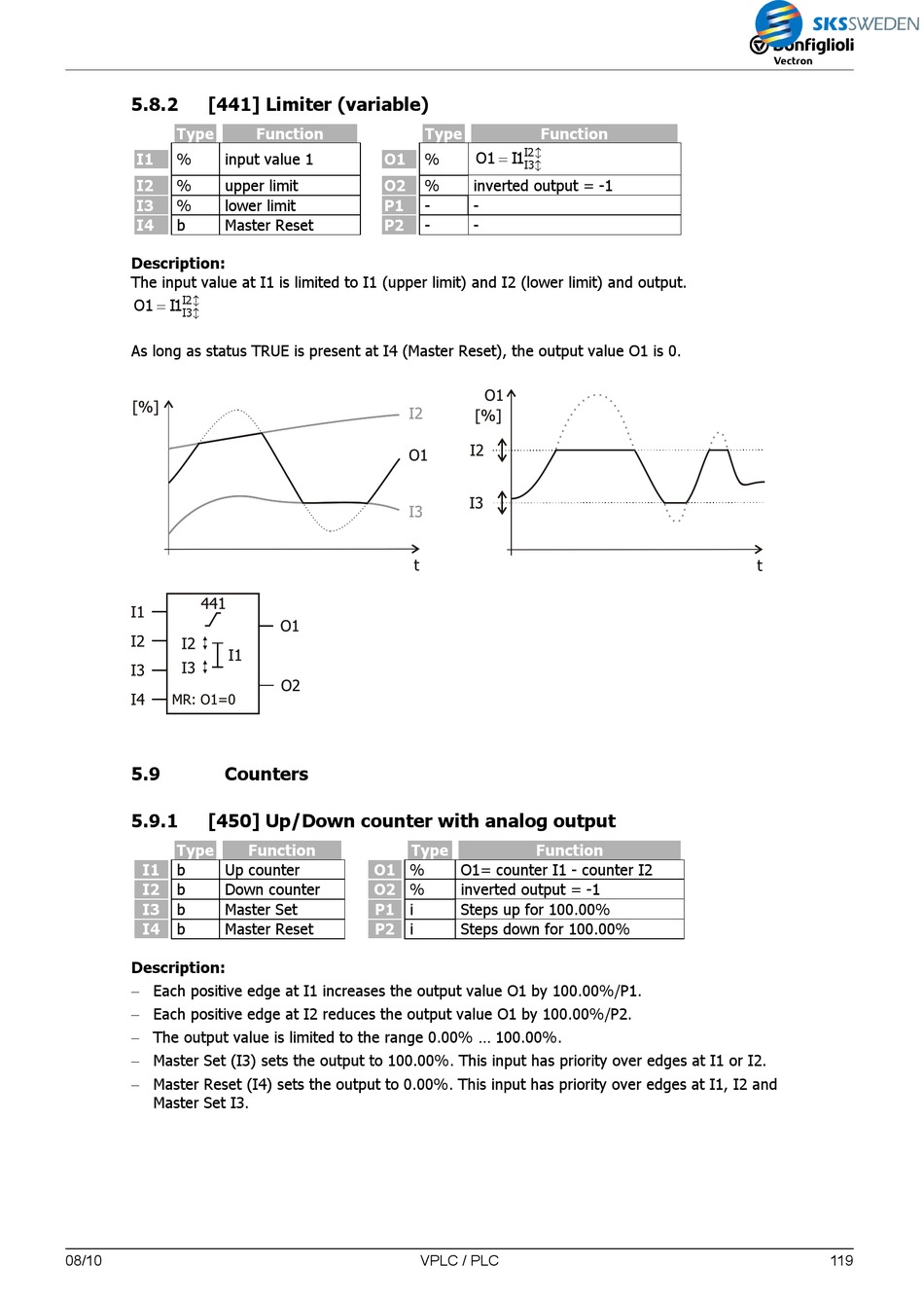

[441] Limiter (variable)

Type
I1 % input value 1
I2 % upper limit
% lower limit
I3
I4 b Master Reset
Description:
The input value at I1 is limited to I1 (upper limit) and I2 (lower limit) and output.
2 I
O1 = 1 I
b
3 I
b
As long as status TRUE is present at I4 (Master Reset), the output value O1 is 0.
5.9

Counters

5.9.1

[450] Up/Down counter with analog output

Type
b Up counter
I1
I2 b Down counter
b Master Set
I3
I4 b Master Reset
Description:
− Each positive edge at I1 increases the output value O1 by 100.00%/P1.
− Each positive edge at I2 reduces the output value O1 by 100.00%/P2.
− The output value is limited to the range 0.00% ... 100.00%.
− Master Set (I3) sets the output to 100.00%. This input has priority over edges at I1 or I2.
− Master Reset (I4) sets the output to 0.00%. This input has priority over edges at I1, I2 and
Master Set I3.
08/10
08/10
Function
O1
O2
P1
P2
Function Type
%
O1
O2 %
i
P1
P2 i
VPLC / PLC
Type Function
2 I
O1 = 1 I b
%
3 I
b
% inverted output = -1
- -
- -
Function
O1= counter I1 - counter I2
inverted output = -1
Steps up for 100.00%
Steps down for 100.00%
VPLC / PLC
119
