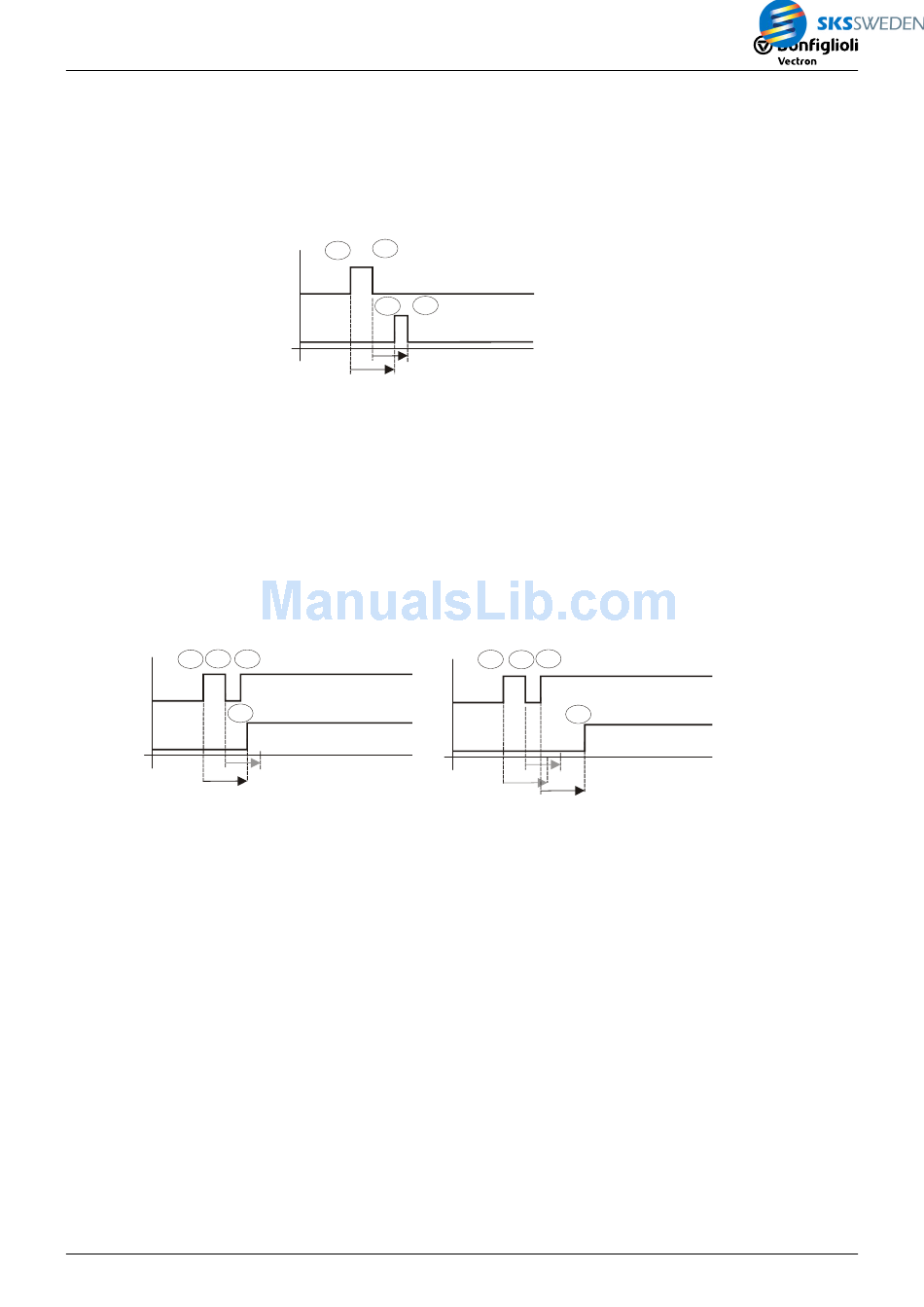

Example 1
1 square pulse
non-retriggerable
Input
Output
Edge 1a starts timer t1
Edge 2a starts timer t2
Edge 1b is output after a delay of t1 (referred to 1a)
Edge 2b is output after a delay of t2 (referred to 2a)
Example 2
1 square pulse followed by positive edge
non-retriggerable
1 1 a 2a 3a
F
1 1 b
A
t2
t1
1a starts timer t1
2a starts timer t2
1b is output after t1
3a (continuous signal) stops execution of
2a
08/10
08/10
On time input (F): 500 ms
Delay, positive edge: 1000 ms
Delay, negative edge: 800 ms
retriggerable
2a
1 1 a
F
1 1 b 2b
A
t2
t1
On time input (F): 500 ms
Off time input (F): 350 ms
Delay, positive edge: 1000 ms
Delay, negative edge: 800 ms
retriggerable
F
A
1a starts timer t1
2a starts timer t2
3a starts timer t1 again (retrigger)
3b is output after t1 (referred to 3a)
VPLC / PLC
VPLC / PLC
1 1 a 2a 3a
3b
t2
t1
t1
