Installation Steps

1. Connect power through the portal holes (see
2. Temporarily apply power to the scanner and confirm that the light next to the input
terminal is green and not red.
3. Disconnect power before making the remaining connections.
4. Connect the host and trigger port wires through the portal holes to the appropriate
connections.
5. Plug the ribbon cable into the scanner as shown below (apply pressure back and forth
on the connector to ensure that it fits inside the receptacle).

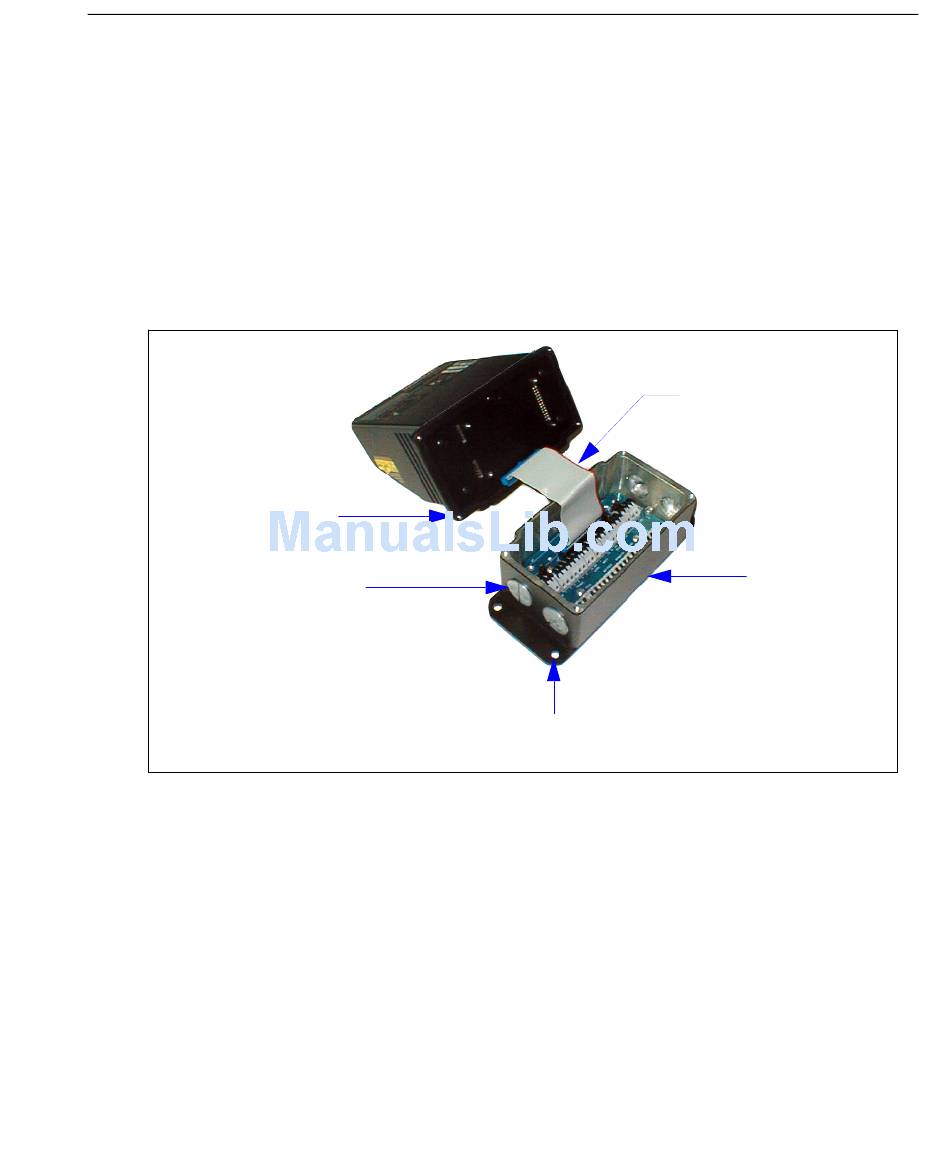

Bottom plate of
scanner attaches to
top of wiring box
Portal holes
3/4" pipe thread
(4 places)
MS-890 Industrial Automation Scanner User Manual
Check Required Hardware
Ribbon Cable
Base mounting plate of
wiring box
Wiring Box
on page 1-2).
Wiring box
14-3
