Configure the Scanner in ESP
Step 10 — Configure the Scanner in ESP

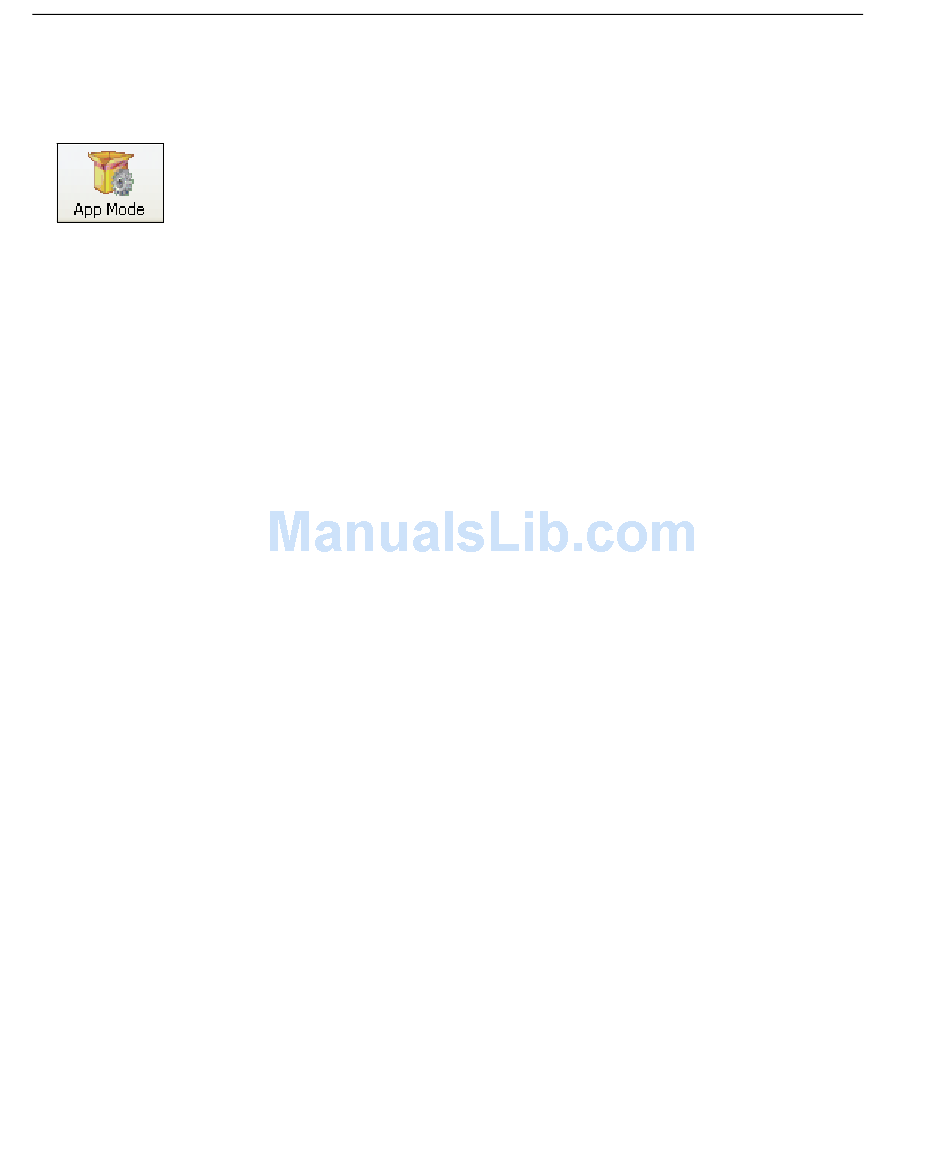

To make setup changes to the MS-890, click the App Mode button.
The following modes are accessible by clicking the buttons in the first row of App Mode icons:
• Test and Calibrate the scanner in EZ Mode.
• Establish communications between ESP and the scanner by clicking the Autoconnect
button.
• Send or receive commands by clicking the Send/Recv button.
• Switch reader models by clicking the Switch Model button.
• Click the Parameters button to make changes to tree control settings.
• Click the Setup button to adjust and test scanner settings in Calibration, Raster Setup,
Laser Framing, Configuration Database, Ordered Output, and Output Format.
• Access the Terminal, where you can view symbol data and enter serial commands.
• Review status settings or make changes to operational commands in Utilities.
