Raster/Laser Setup by ESP

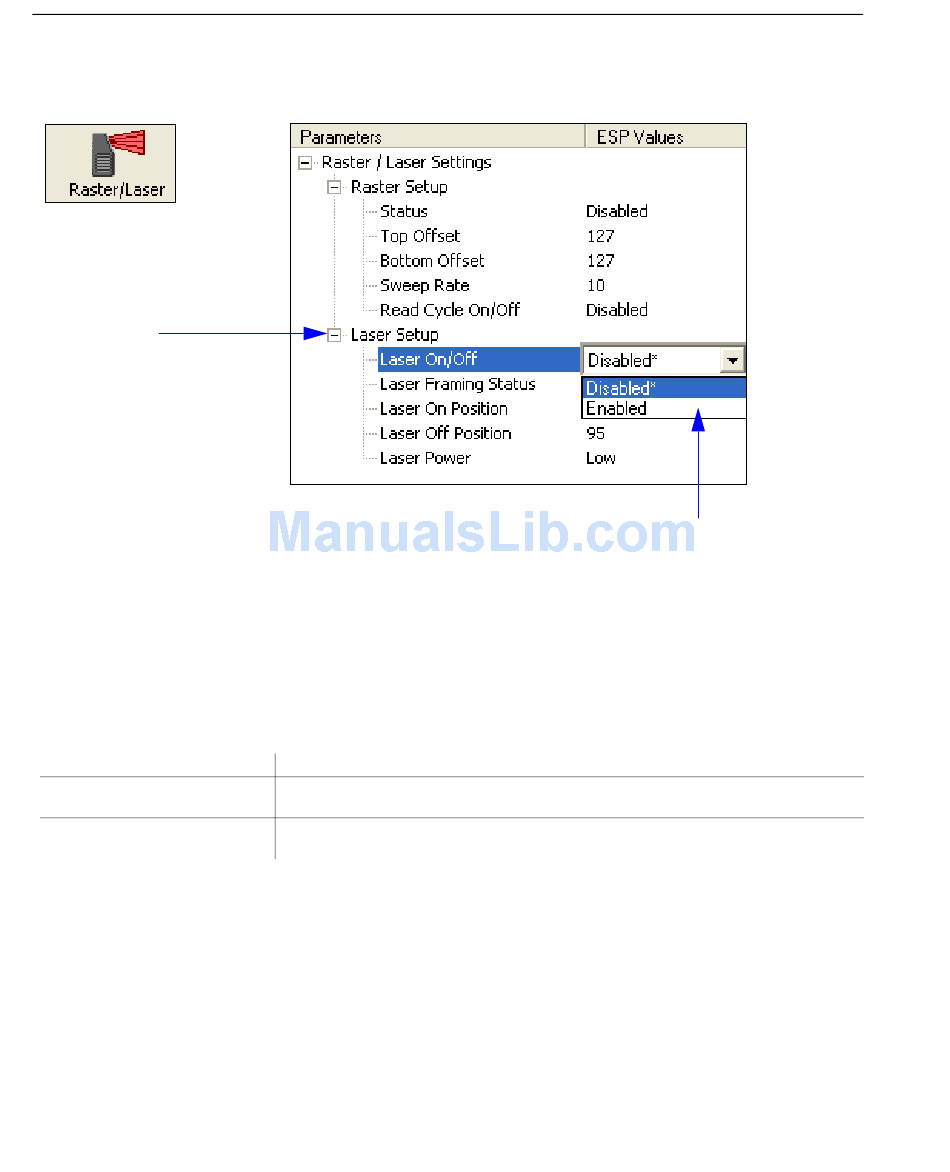

Raster/Laser Setup by ESP
Click this button to bring up
the Raster/Laser menu.
To open nested
options, single-click
+
the .

Raster/Laser Serial Commands

Command Title
Raster
Laser On/Off
10-2
Format
<K506,raster status,top offset,bottom offset,raster sweep rate,read cycle
on/off>
<K700,laser on/off status,laser framing status,laser on position,laser off position,
laser power>
MS-890 Industrial Automation Scanner User Manual
To change a setting,
double-click the
setting and use your
cursor to scroll
through the options.
