Macros

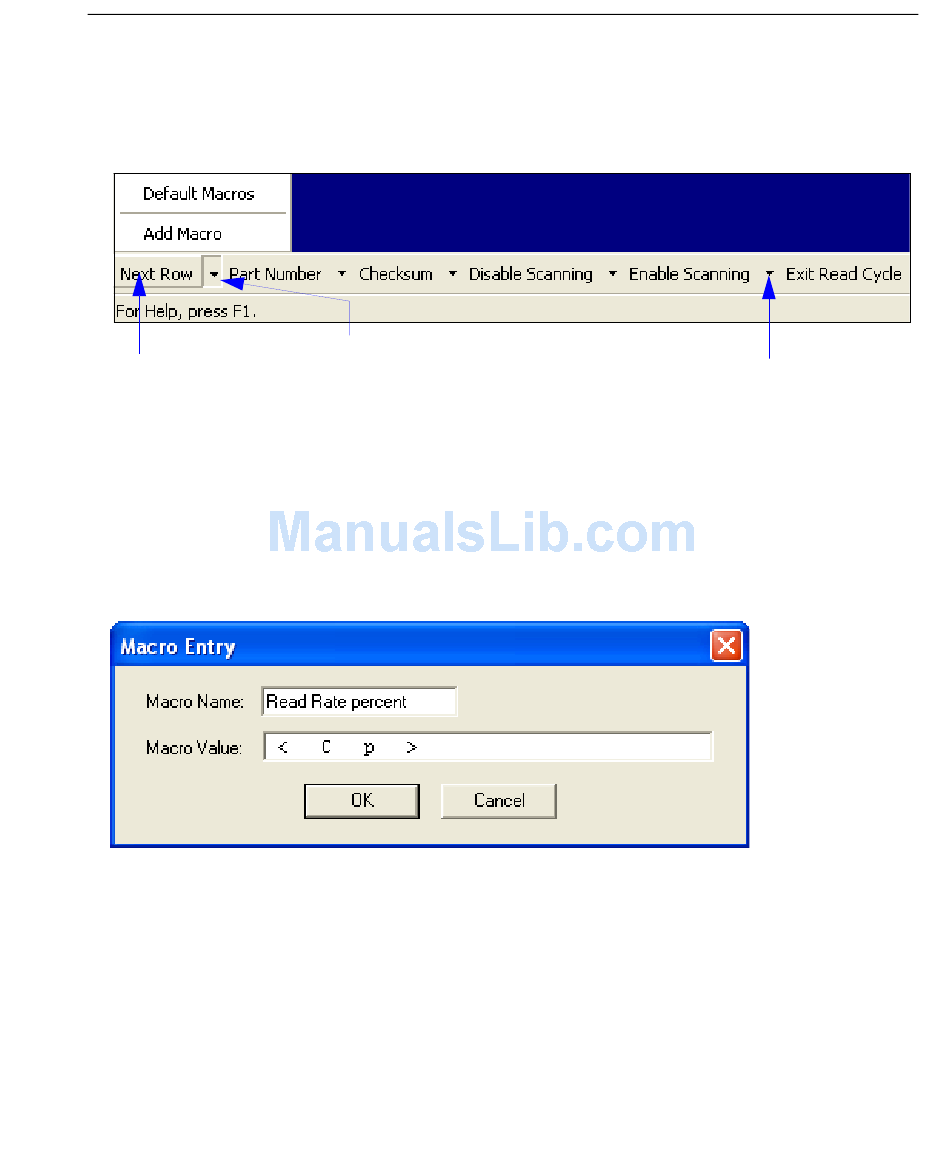

Macros can be stored in a macro selection bar, edited in a separate window, and executed
by clicking on the macro name.
Click on Next
Row to see the
next row of
macros
When you click on the macro name, the macro is executed in the Terminal window.
If this is a command, it is sent to the scanner at the same time that it is displayed.
Editing a Macro
When you click the arrow next to any macro and select Edit, the following appears:
You can edit an existing macro or type in the Macro Name text field and define it in the
Macro Value text field. Click OK.
MS-890 Industrial Automation Scanner User Manual
Click on the first arrow here to see Add
Macro or Default Macros.
When you default macros, the entire
macros set is restored to their original
macro commands.
Terminal
Click on subsequent
arrows to edit macros.
11-5
