Laser Framing - Microscan MS-890 User Manual

Laser Framing

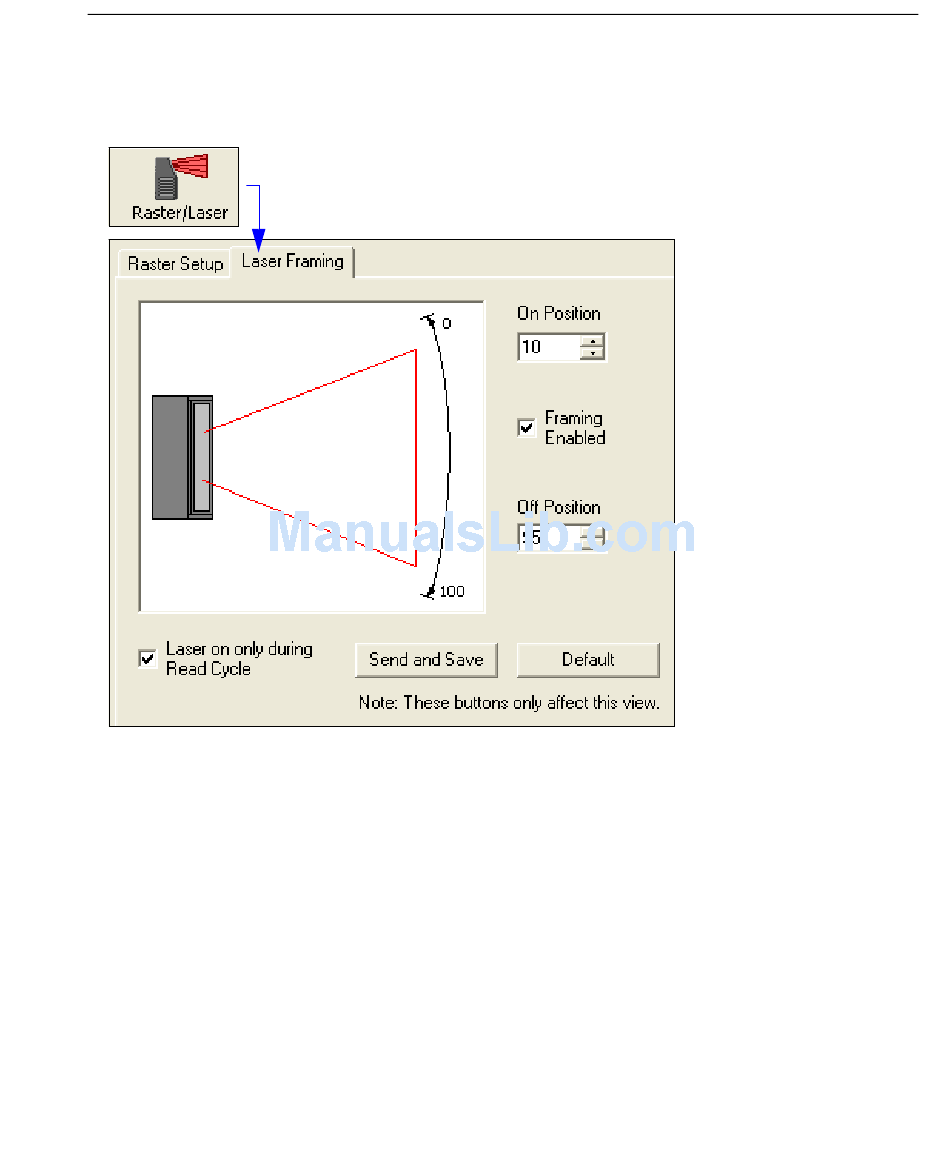

To access the Laser Framing menu, click the Raster/Laser button and the Laser Framing tab.
Laser On/Off Status
Laser On/Off extends the life of the laser. It is useful where there are significant
Usage:
time gaps between symbols. It also provides visual confirmation of a read
cycle timeout and minimizes laser exposure to people.
Definition: When enabled, the laser is ON only during the read cycle. When disabled,
the laser operates continuously.
<K700,laser on/off
Serial Cmd:
position,laser power>
Default: Disabled
Options: 0 = Disabled
Note: A serial or external trigger must be enabled for Laser On/Off to take effect.
Note: Laser On/Off is not recommended when New Trigger is enabled, since the laser
will effectively remain on continuously.
MS-890 Industrial Automation Scanner User Manual
status,laser framing status,laser on position,laser off
1 = Enabled
Raster/Laser
10-7
