Wiring Box Description

Wiring Box Description

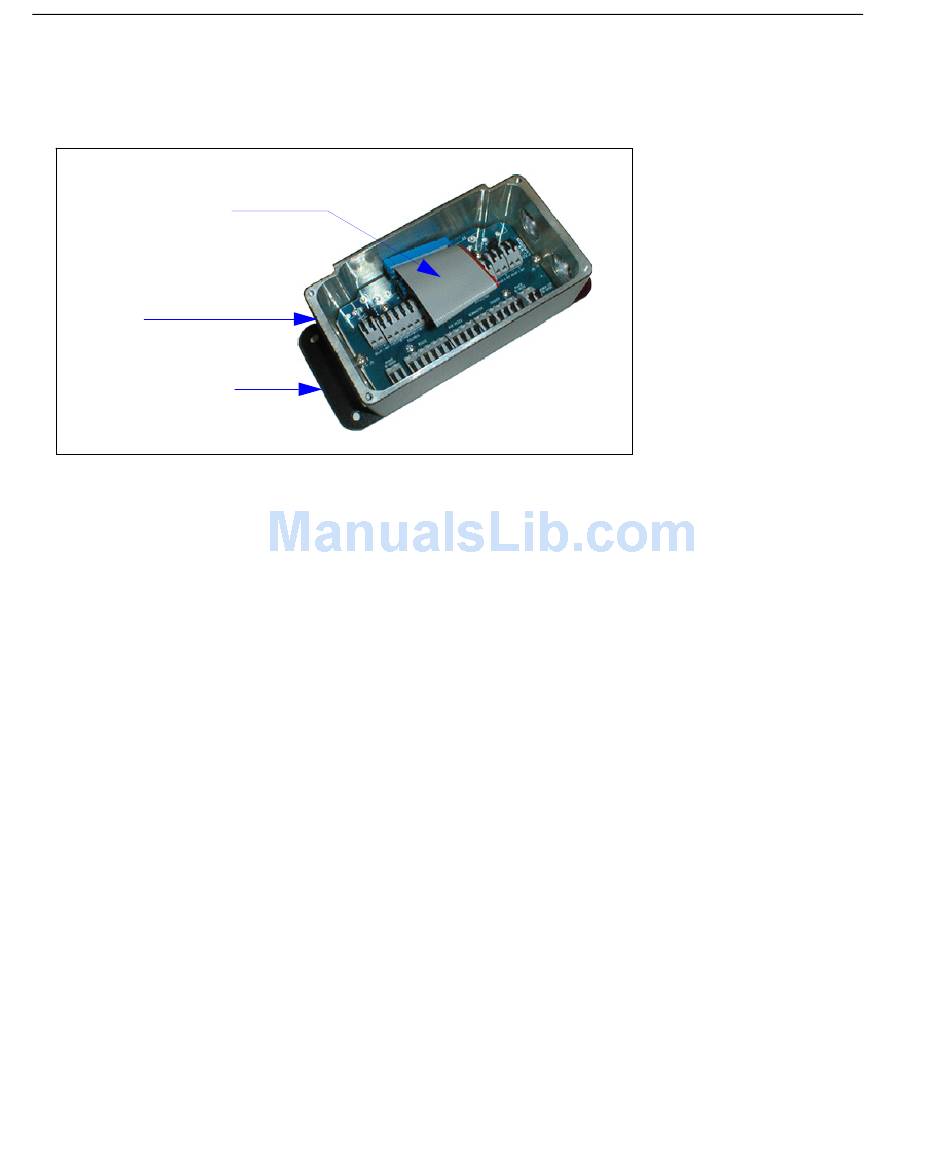

Note: The wiring box PCB resides inside the wiring box.
Ribbon Cable to
MS-890 Scanner
Portal hole,
3/4" pipe
thread
(4 places)
Bottom mounting
plate of wiring box
Portal Holes
The wiring box has four external portal holes which are standard 3/4" pipe thread.
Mounting of the box is with four through holes in flanges that extend out over the ends.
Terminal Strip Specifications
Wire strip length: .24" (6 mm)
Wiring range: 14 - 28 AWG
Current: 13A maximum
