Communications by ESP

Communications by ESP

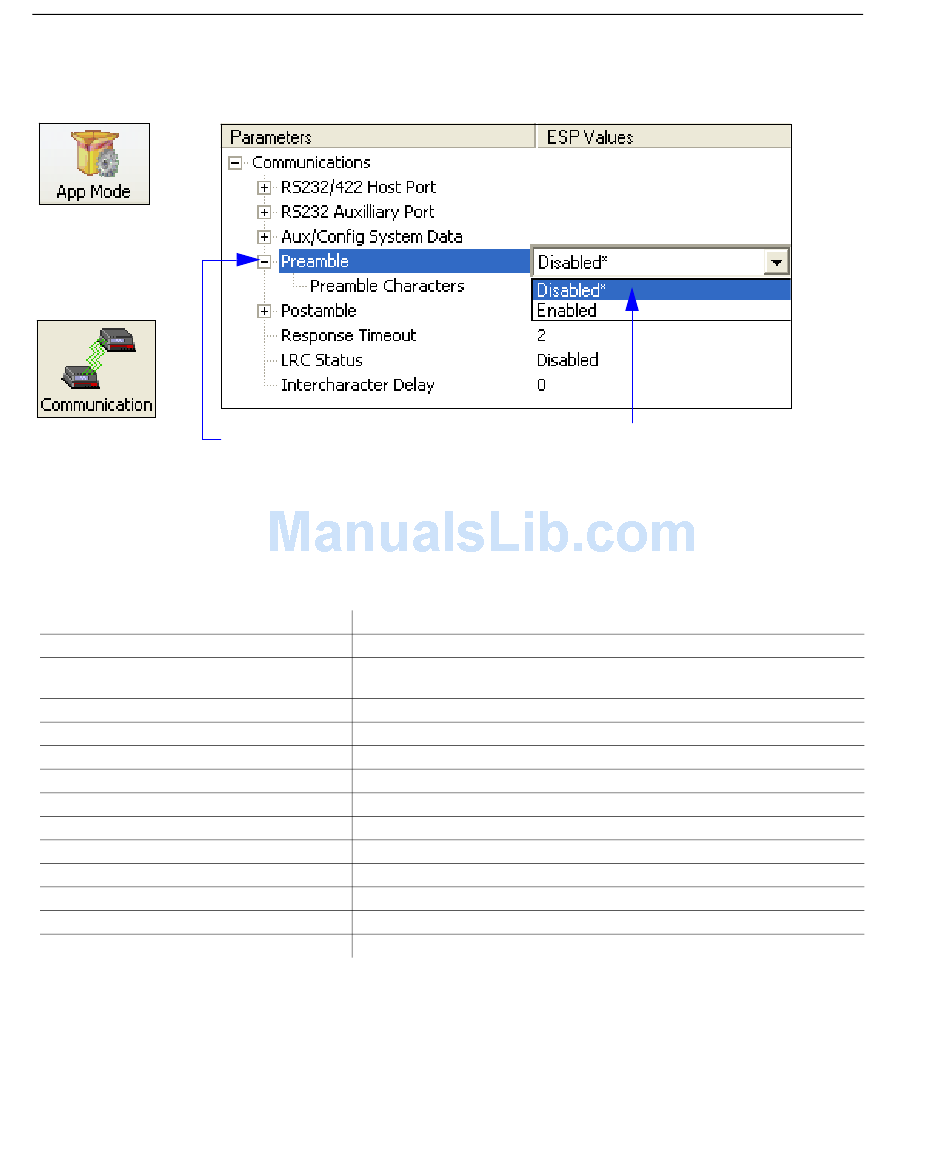

Click this button
to bring up the
Applications
menu.
Click this button
to bring up the
Communication
menu.

Communications Serial Commands

Command Title
Host Port Parameters
Aux Port Protocol
Host Protocol
Preamble
Postamble
Response Timeout
Intercharacter Delay
LRC
Auxiliary/Configuration Port System Data <K146,aux port status,config port status>
ACK/NAK Options
Polling Mode Options
Daisy Chain Autoconfigure
Daisy Chain Scanner ID
3-2
To open nested options,
+
single-click the .
Command Format
<K100,baud,parity,stop bits,data bits>
<K101,aux port mode,baud rate,parity,stop bits,data bits,daisy
chain ID status,daisy chain ID>
<K140,protocol,address>
<K141,status,preamble character(s)>
<K142,status,postamble character(s)>
<K143,timeout setting>
<K144,time interval>
<K145,status>
<K147,RES,REQ,STX,ETX,ACK,NAK>
<K148,RES,REQ,STX,ETX,ACK,NAK>
<K150DAISY>
<K151,daisy chain scanner,daisy chain scanner ID>
MS-890 Industrial Automation Scanner User Manual
To change a setting,
double-click the setting
and use your cursor to
scroll through the
options.
