EZ Mode

EZ Mode

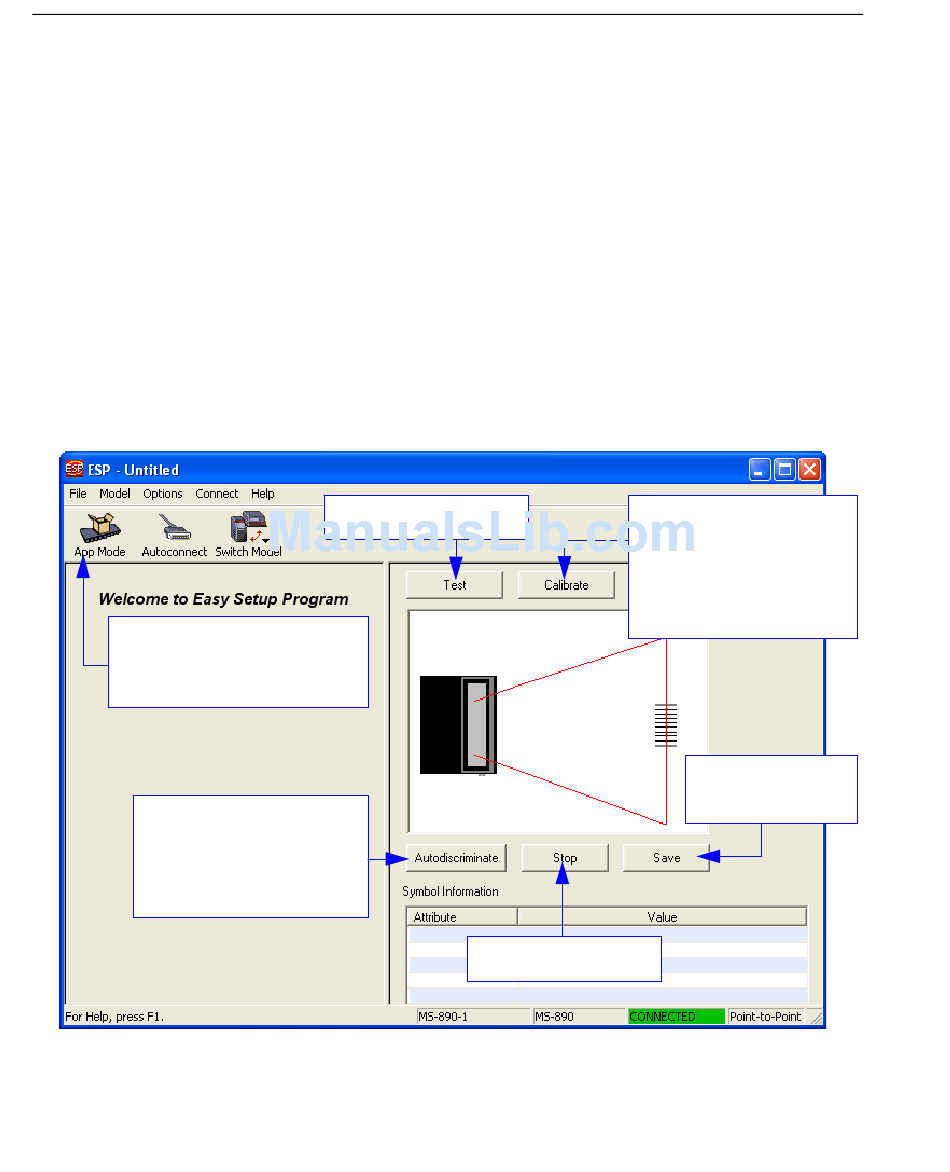

In EZ Mode you are presented with the Locate, Calibrate, and Test options. After connecting
to your scanner, EZ Mode is the screen you will see. You will be provided with on-screen
instructions that will help you with positioning, testing, and calibration.
Test
Click the Test button to start the Read Rate test for a quick indication of the scanner's read
capabilities and the limits of your application. When Decodes per Second is unchecked,
the test will count the percentage of decodes relative to the number of actual scans. Click
Stop to end the test.
Calibrate
The calibration routine that will optimize the scanner by comparing Read Rates at various
camera and image processing settings.
Enter App Mode to access
configuration trees and other
setup features.
Allows you to decode a
variety of symbologies
without stopping your
application to reconfigure
symbology settings.
2-2
Starts Read Rate test.
Ends Read Rate test.
MS-890 Industrial Automation Scanner User Manual
Click Calibrate to begin
the initial calibration
routine. Calbration is
explained at the left of
the EZ Mode screen,
and also in Quick Start.
Saves Calibration
settings.
