Master Database

Important: Master Database is used only for comparing entire symbols, when Sequential
and Wild Card are NOT enabled, and Start Position is equal to 0.
Master Database Overview
Usage: Used where more than one master symbol is required, as in a Multisymbol
setup, for matching and other matchcode operations.
Definition: Allows you to define up to 10 master symbols as the master symbol database,
which can be entered by keyboard, scanned in, displayed, or deleted by
serial or ESP commands.
1. Click the Master Database tab.
2. Set the Master Symbol Database Size.
3. Select database index you want to enter the master symbol.
4. Do one of the following to enter master symbol data:
• Double-click the index row to type data directly into index. (See
Symbol Data
• Click Read Symbol into Selected Index to enter the next decoded symbol.

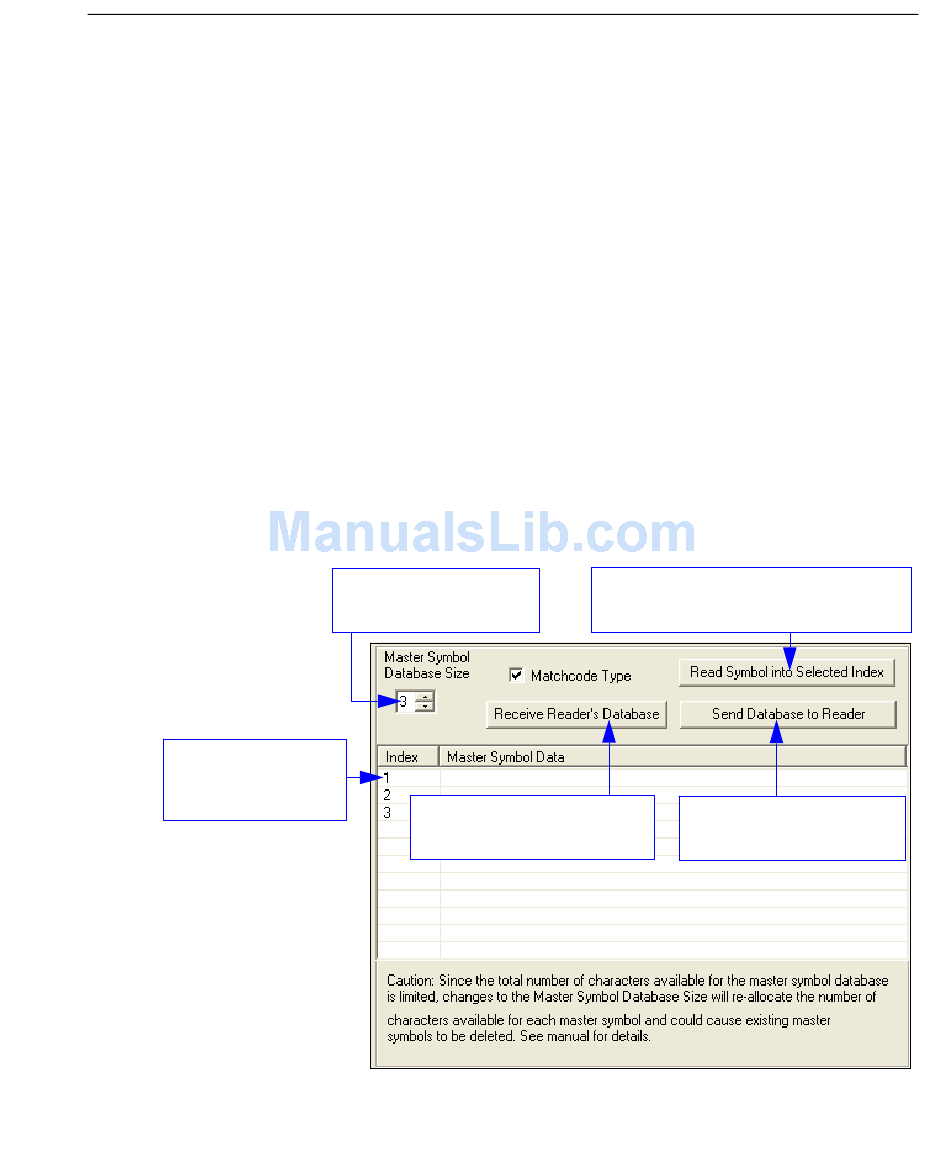

Double-click a row
to enter data into
popup dialog box.
MS-890 Industrial Automation Scanner User Manual
on page 12-13.)
Set Master Symbol
Database Size here.
Loads the scanner's saved
master symbols into ESP.
Enter Master
Loads the next symbol decoded into
the selected index.
Saves the displayed
database to the scanner.
Utilities
12-11
