Raster Setup

You can set up and make changes to the scanner's raster parameters in ESP's Read
Cycle, Calibration, or Raster/Laser views (preferred).

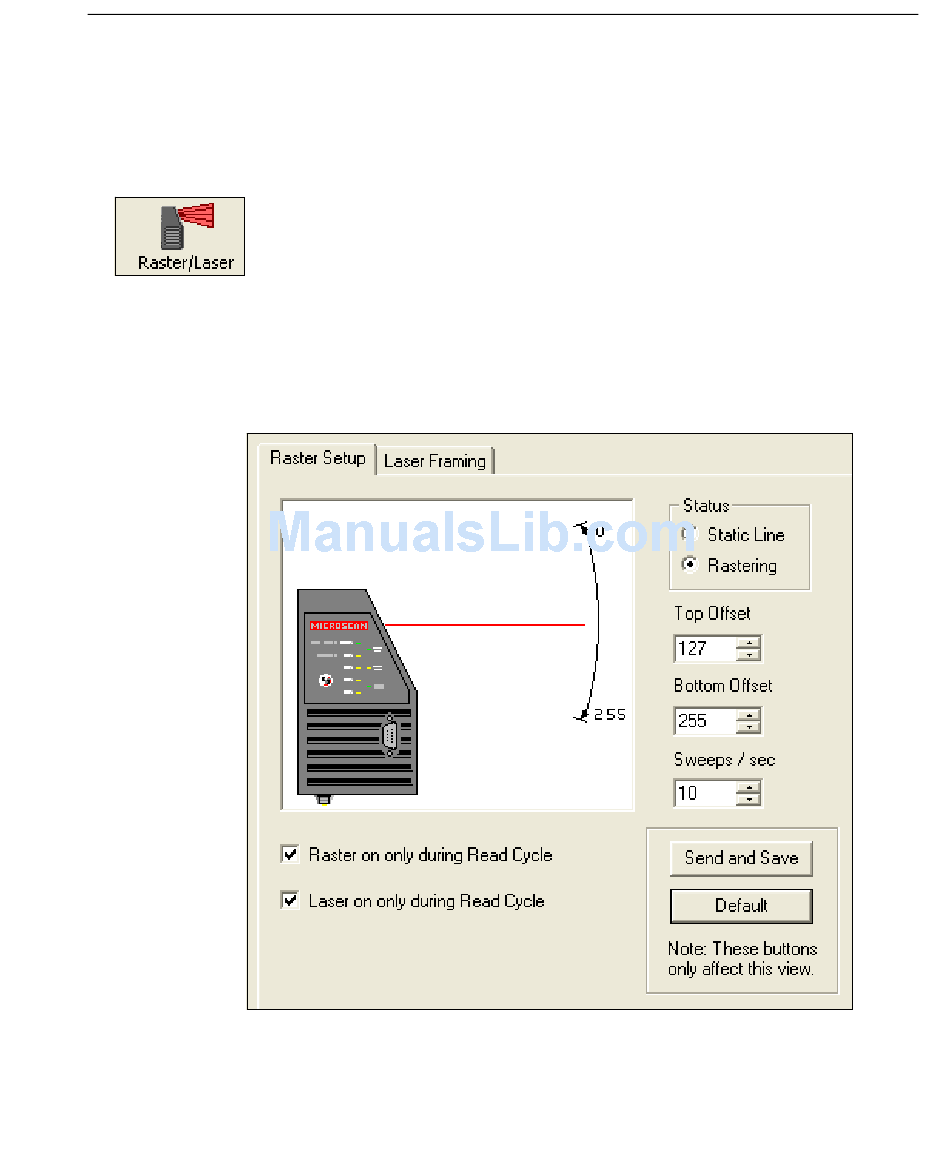

To access the Raster Setup menu, click the Raster/Laser button and the Raster Setup tab.
Usage: Raster scanning is useful when symbols vary in placement and a single
scan line cannot be counted on to cross the symbol, and for reading
stacked symbologies such as PDF417.
The user can enable raster scanning and adjust the raster sweep limits and
Definition:
the sweep rate.
Note: Changes made in the Raster Setup menu are dynamic; that is, they
take effect without saving.
