Macros - Microscan QX-830 User Manual

Macros

Macros can be stored in a macro selection bar, edited in a separate window, and executed
by clicking on the macro name.
Click on Next
Row to see the
next row of

macros

Click a macro button to execute it in the Terminal.
If the macro is a command, it is sent to the scanner at the same time that it is displayed.
Editing a Macro

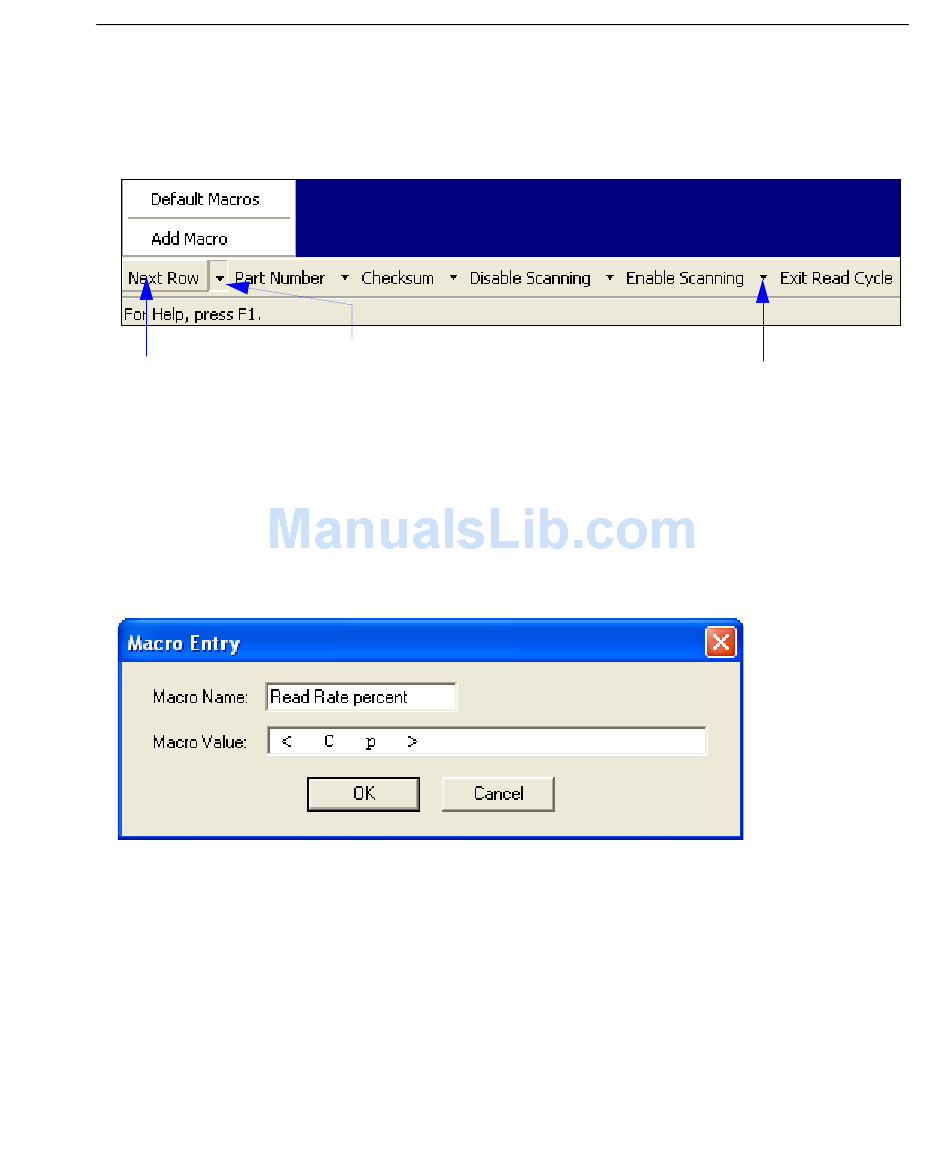

Click the arrow next to any macro and select Edit to display the following dialog:
Edit the macro value or type a new Macro Name in the text field provided and define it in
the Macro Value field. Click OK to save the entry.
QX-830 Compact Industrial Scanner User's Manual
Click on the first arrow here to see Add
Macro or Default Macros.
When macros are defaulted, the entire
macro set is restored to the original
macro commands.
Terminal
Click on subsequent
arrows to edit macros.
6-5
