3.0 Hardware Features

3.1 BulletPlus

The BulletPlus is a fully-enclosed unit ready to be interfaced to external devices with standard connectors
as discussed below. An optional mounting bracket can be ordered to allow the BulletPlus to be mounted
for a fixed installation.
The BulletPlus Hardware Features Include:
© Microhard Systems Inc.

Standard Connectors for:

3x 10/100 Ethernet Ports (RJ45 - 1xWAN / 2xLAN)

Data Port (RS232/DB9)

4-Pin: MATE-N-LOK Type Connector for Power / I/O 1/2

Cellular Antenna (SMA Female Antenna Connection x2)

GPS Antenna (SMA Female Antenna Connection)

WiFi Antenna (RP-SMA Female Antenna Connection)

Status/Diagnostic LED's for RSSI(x3), Tx, Rx, GPS, CPU

Dual SIM (Mini-SIM (2FF)) Card Slots

CFG Button for factory default / firmware recovery operations

USB 2.0 Connector

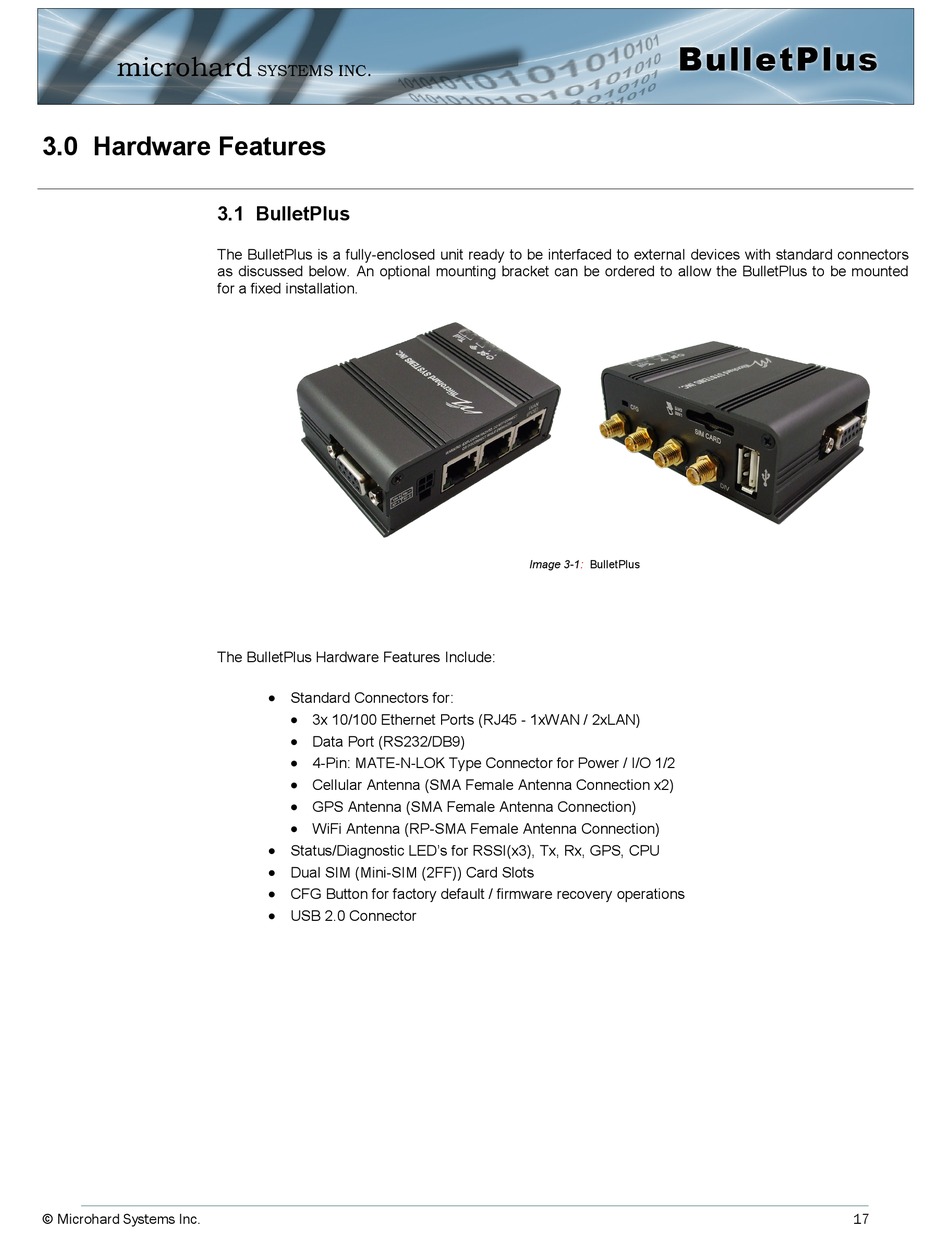

Image 3-1: BulletPlus
