4.0 Configuration
4.2.7 Network > VRRP
The BulletPlus when paired with other VRRP enabled devices (another BulletPlus or compatible devices)
can provide redundant internet access for LAN devices by using VRRP (Virtual Router Redundancy
Protocol) as illustrated below. If a connected device needs to access the internet it will use whichever
virtual router has the highest priority, if that device is not available the next router with the higher priority
will router the traffic.
Enable or disable the VRRP service on the BulletPlus. To change
settings the VRRP service must be disabled (then submitted) and then
re-enabled.
© Microhard Systems Inc.
BulletPlus
LAN: 192.168.220.11
Internet
Virtual Router IP:
192.168.220.211
Switch

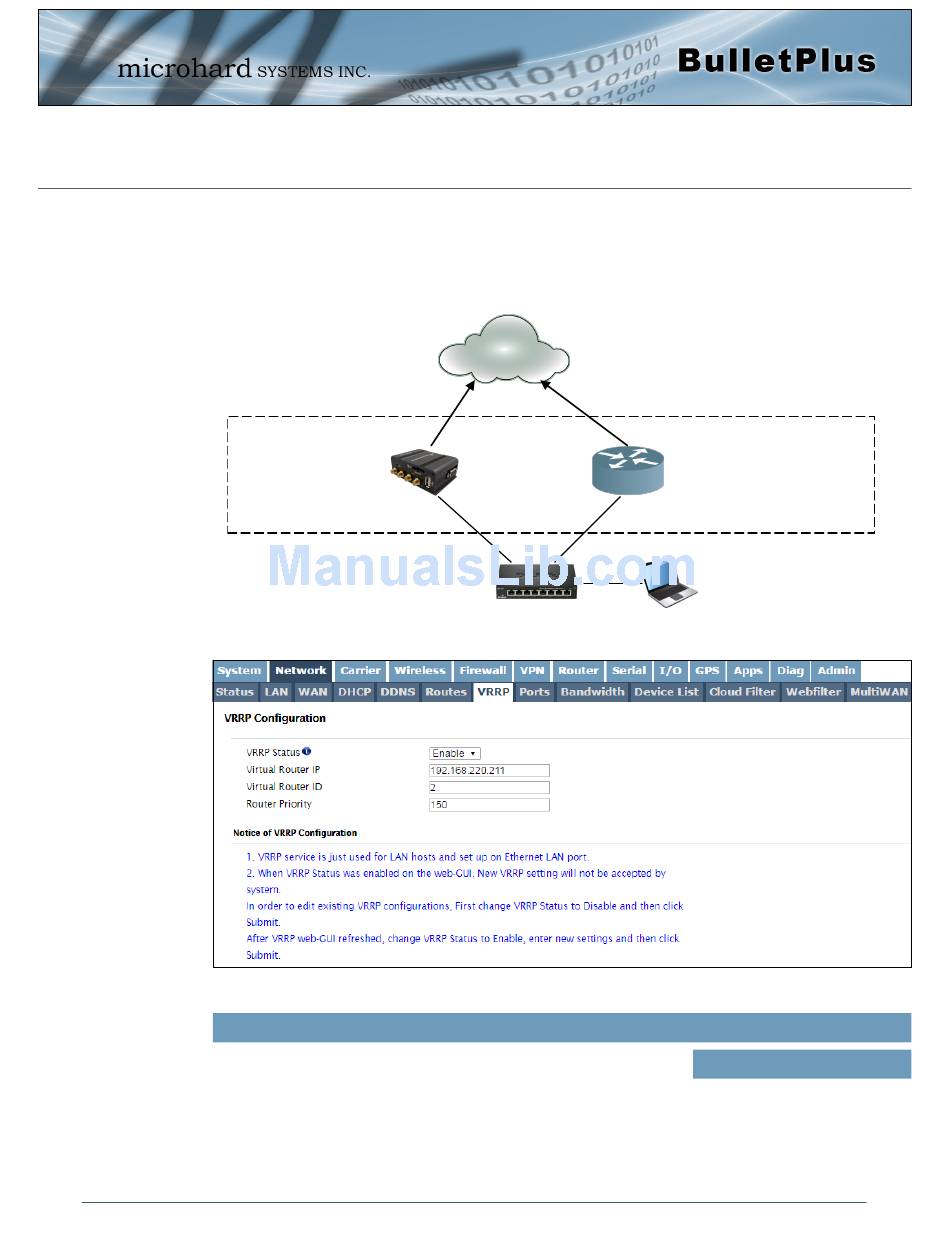

Image 4-2-10: Network > VRRP
VRRP Router
LAN: 192.168.220.12
PC/LAN Device
LAN: 192.168.220.50
Gateway: 192.168.220.211
VRRP Status
Values (Selection)
Enable / Disable
46
