3.0 Hardware Description
3.1 Nano IP OEM Module
The Nano IP Series Modems are available in both OEM and Enclosed packages. The OEM
version supplies all the required raw signals to allow the unit to be tightly integrated into
applications to efficiently maximize space and power requirements. The Enclosed version of the
Nano Series modem allows for a fully operational table top or mountable solution. The various
interface cards and development boards can provide a convenient evaluation platform or an in
between end solution.
The Nano IP OEM module is typically complemented by interface circuitry (e.g. power, data
interface) for most applications. Nano IP Motherboard and Nano IP HV Board provide much of
this interface circuitry to aid in the integration or evaluation of the Nano IP module.
The Nano Enclosed Modem supplies all required interface circuitry and all that is required are
general user interfaces (RS232, antenna, power).
Any Nano IP module may be configured as a Master, Repeater (or Repeater/Slave), or Slave.
This versatility is very convenient from a 'sparing' perspective, as well for convenience in
becoming very familiar and proficient with using the module: if you are familiar with one unit,
you will be familiar with all units.

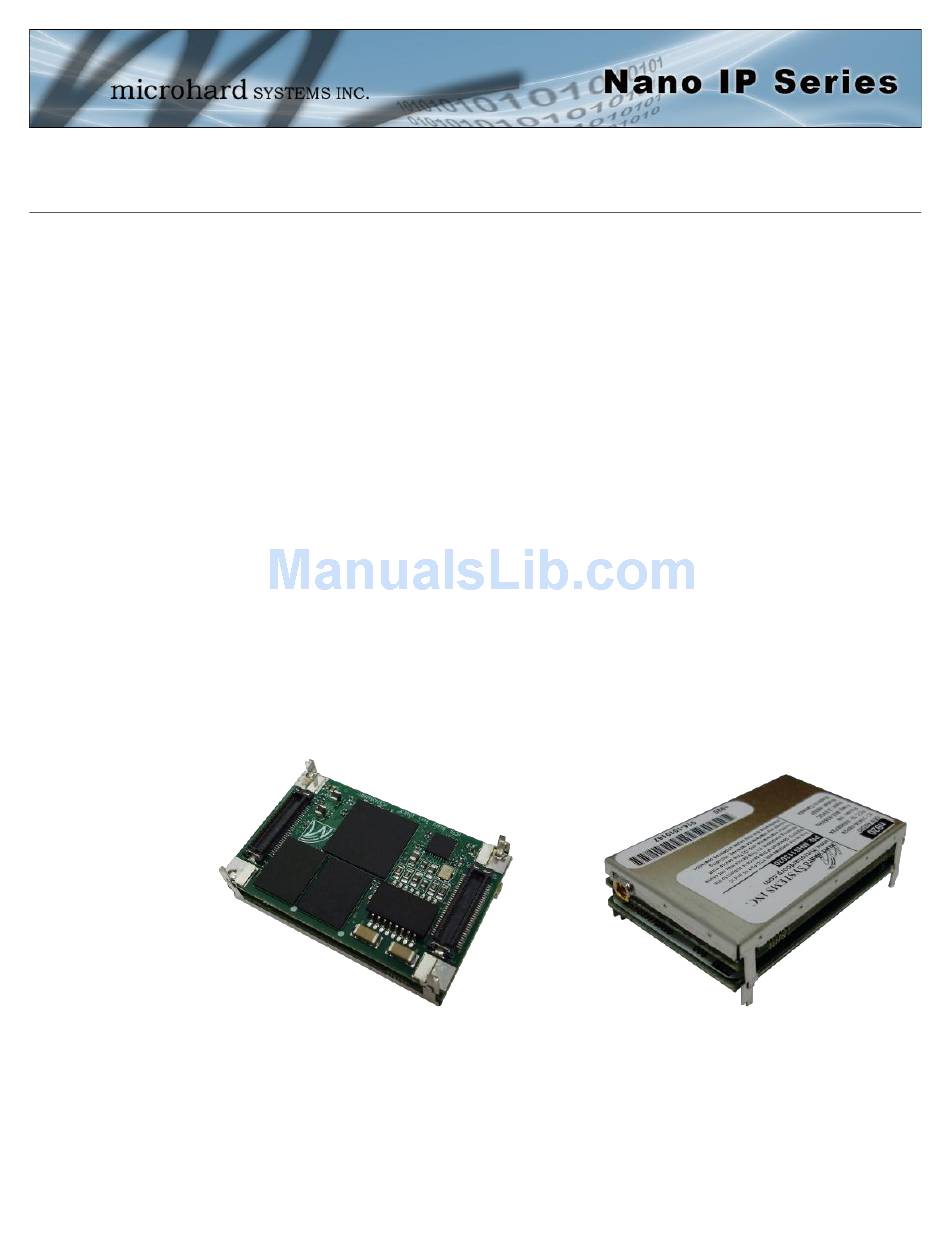

Image 3-1: Nano IP OEM Bottom View
Image 3-2: Nano IP OEM Top View
