4.0 Configuration
Select operational status of the Serial Port. The port is disabled by
default.
The serial baud rate is the rate at which the modem is to communicate
with the attached local asynchronous device.
This setting determines the format of the data on the serial port.
The default is 8 data bits, No parity, and 1 Stop bit.
Note: Most PCs do not
readily support serial
communications greater
than 115200bps.
Flow control may be used to enhance the reliability of serial data communications, particularly at higher
baud rates. If the attached device does not support hardware handshaking, leave this setting at the default
value of 'None'. When CTS Framing is selected, the BulletPlus uses the CTS signal to gate the output data
on the serial port.
Software flow control
(XON/XOFF) is not
supported.
Refer to Drawing 4A above.
Refer to Drawing 4A above.
© Microhard Systems Inc.

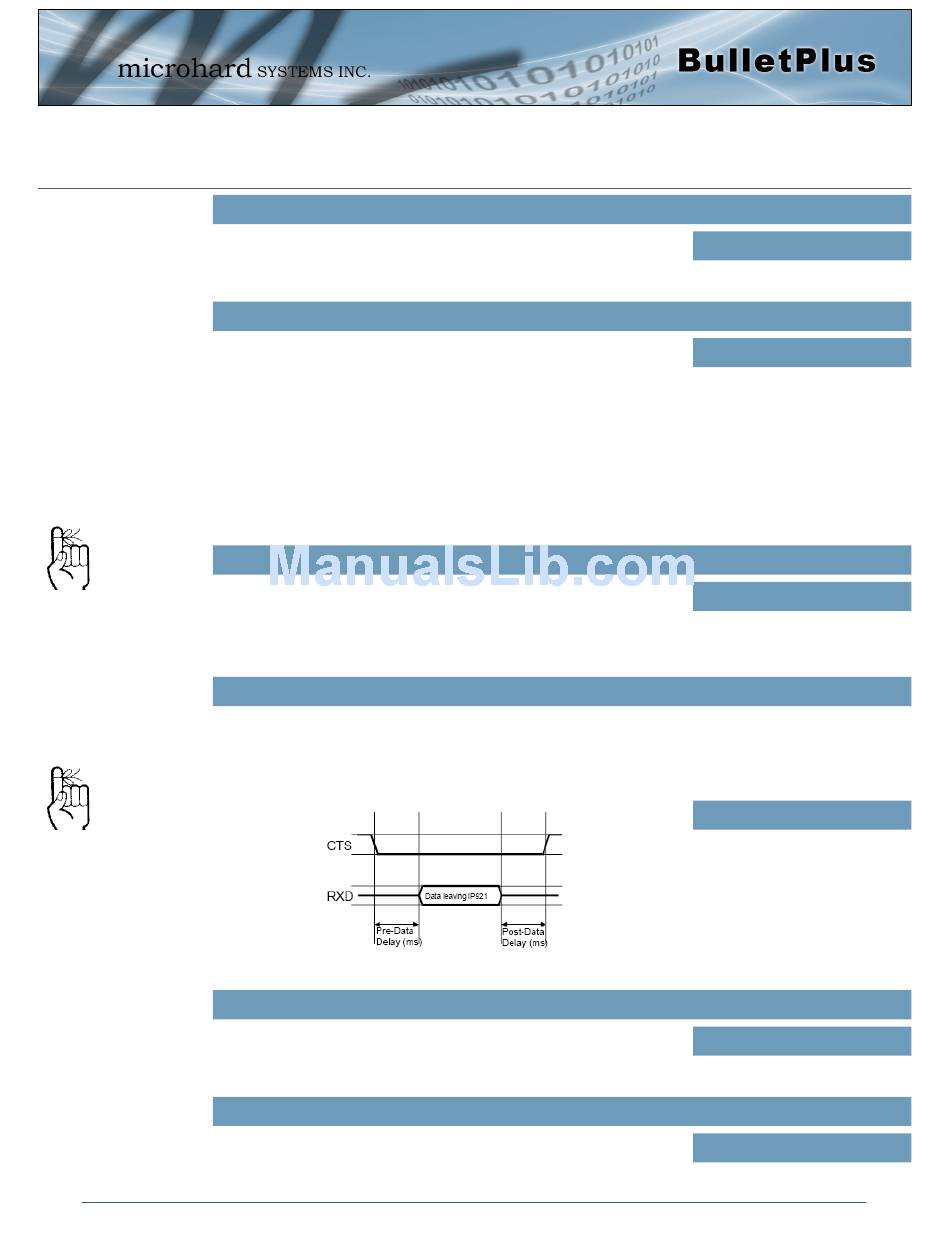

Drawing 4A: CTS Output Data Framing
Port Status
Values (selection)
Disabled / Enable

Data Baud Rate

Values (bps)
921600 9600
460800 7200
230400 4800
115200 3600
57600 2400
38400 1200
28800 600
19200 300
14400
Data Format
Values (selection)
8N1 / 8E1 / 8O1
Flow Control
Values (selection)
None
Hardware
CTS Framing
Pre-Data Delay
Values (time (ms) )
100
Post-Data Delay
Values (time (ms) )
100
