5.0 AT Command Line Interface

5.1 AT Command Overview

AT Commands can be issued to configure and manage the BulletPlus, via the back serial port (Console),
or by TCP/IP (telnet).

5.1.1 Serial Port

To connect and access the AT Command interface on the BulletPlus, a physical connection must be made
on the Console (TX/RX) serial port on the back of the BulletPlus A terminal emulation program
(Hyperterminal, Tera Term, ProComm, Putty etc) can then be used to communicate with the BulletPlus.
The port settings of this port can be modified by changing the settings of the Console Port, in the Serial
Once communication is established, a login is required to access the AT Command interface, once logged
in, the AT Command Line Interface menu is displayed. Type "?" or Help to list the menu commands.
© Microhard Systems Inc.
Default Settings:
Baud rate: 115200
Data bits: 8
Parity: None
Stop Bits: 1
Flow Control: None

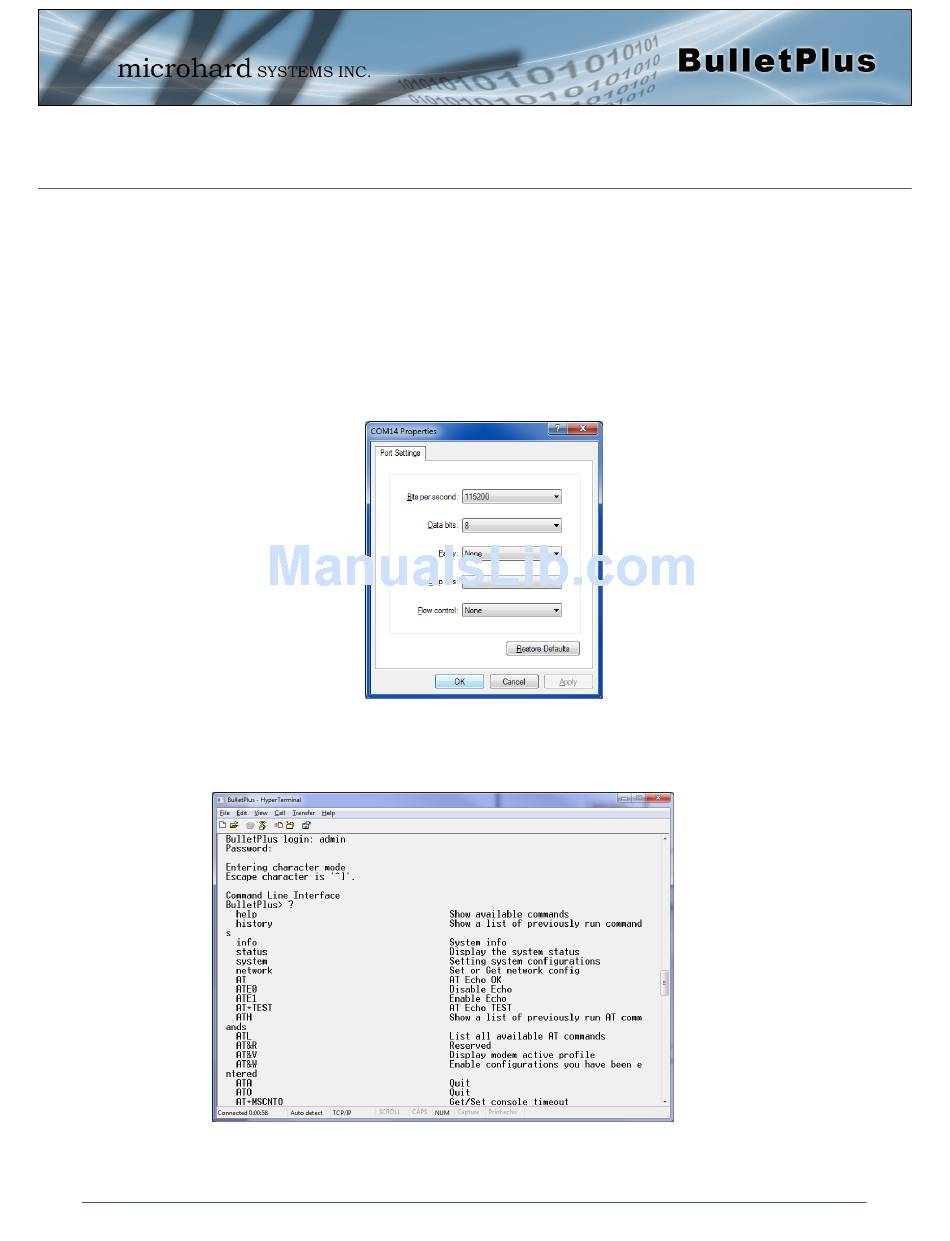

Image 5-1: Console Port Settings
Image 5-2: AT Command Window
Default Settings:
BulletPlus login: admin
Password: admin
160
