Service Manual Information

Service Manual Information

Options

Side and Rear Panels

12
Use the following information to replace or clarify information contained in
your TDS5000B Series Digital Phosphor Oscilloscopes (071-1362-XX) service
manual. This service manual is on the Tektronix Web site.
The TDS5054B and TDS5104B instruments have been upgraded to include the
following options: Option 18 (Touch Screen) and Option 3M (16 M points record
length).

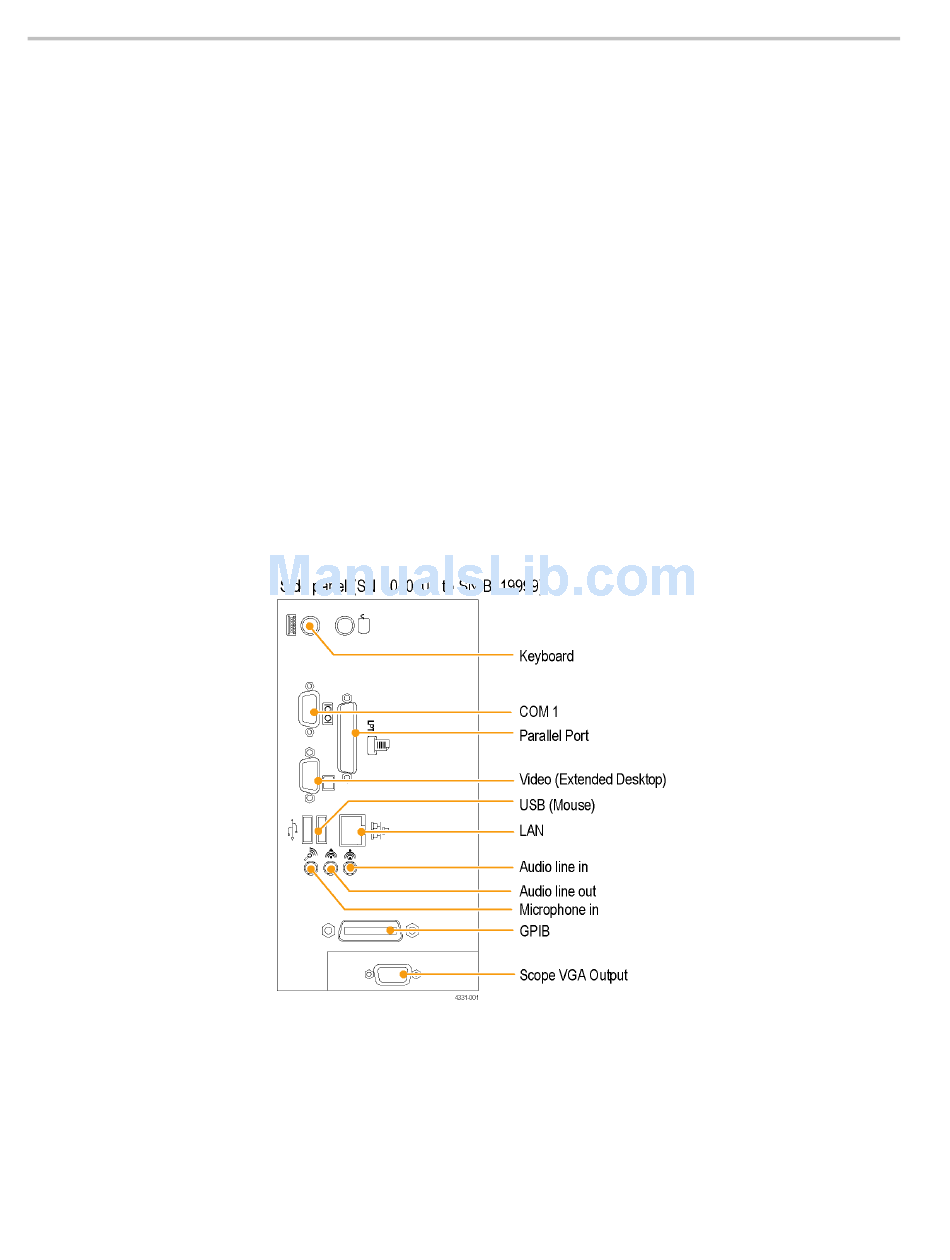

The following side-panel illustrations (in the Theory of Operation section) have
been upgraded to include the latest component locations and are for reference
only. Use the instructions in the TDS5000B Series Quick Start User manual
(071-1355-XX) to connect your instrument.
TDS5000B Read This First
