Panasonic KX-NS1000 Programming Manual

Pure ip-pbx.
Hide thumbs

1
2
3
Table of Contents
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
644
645
646
647
648
649
650
651
652
653
654
655
656
657
658
659
660
661
662
663
664
665
666
667
668
669
670
671
672
673
674
675
676
677
678
679
680
681
682
683
684
685
686
687
688
689
690
691
692
693
694
695
696
697
698
699
700
701
702
703
704
705
706
707
708
709
710
711
712
713
714
715
716
717
718
719
720
721
722
723
724
725
726
727
728
729
730
731
732
733
734
735
736
737
738
739
740
741
742
743
744
745
746
747
748
749
750
751
752
753
754
755
756
757
758
759
760
761
762
763
764
765
766
767
768
769
770
771
772
773
774
775
776
777
778
779
780
781
782
783
784
785
786
787
788
789
790
791
792
793
794
795
796
797
798
799
800
801
802
803
804
805
806
807
808
809
810
811
812
813
814
815
816
817
818
819
820
821
822
823
824
825
826
827
828
829
830
831
832
833
834
835
836
837
838
839
840
841
842
843
844
845
846
847
848
849
850
851
852
853
854
855
856
857
858
859
860
861
862
863
864
865
866
867
868
869
870
871
872
873
874
875
876
877
878
879
880
881
882
883
884
885
886
887
888
889
890
891
892
893
894
895
896
897
898
899
900
901
902
903
904
905
906
907
908
909
910
911
912
913
914
915
916
917
918
919
920
921
922
923
924
925
926
927
928
929
930
931
932
933
934
935
936
937
938
939
940
941
942
943
944
945
946
947
948
949
950
951
952
953
954
955
956
957
958
959
960
961
962
963
964
965
966
967
968
969
970
971
972
973
974
975
976
977
978
979
980
981
982
983
984
985
986
987
988
989
990

Advertisement

โปรเฟสชั � น แนล พี . เอ. บี . เอ็ ก ซ์ .
30/270 ซอยนวมิ น ทร์ 80 แขวงนวลจั น ทร์ เขตบึ ง กุ ่ ม กรุ ง เทพฯ 10230
Hotline : 084-920-5065 Tel : 02-519-1718 , 02-107-3057
E.Mail : info@pfpbx.com , jirasak_service@hotmail.com
www.pfpbx.com

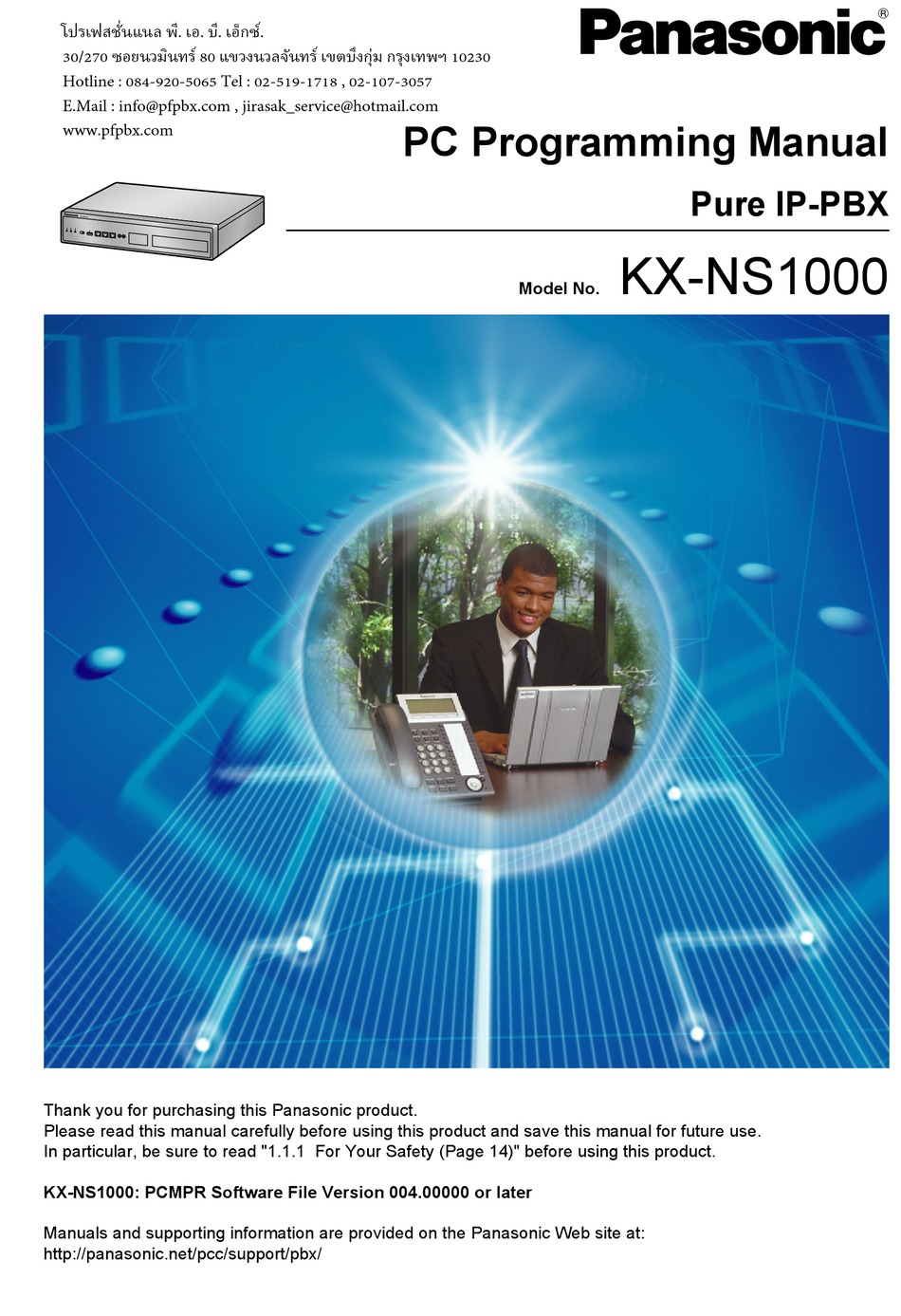

Thank you for purchasing this Panasonic product.
Please read this manual carefully before using this product and save this manual for future use.
In particular, be sure to read "1.1.1 For Your Safety (Page 14)" before using this product.
KX-NS1000: PCMPR Software File Version 004.00000 or later
Manuals and supporting information are provided on the Panasonic Web site at:
http://panasonic.net/pcc/support/pbx/
Model No.
Pure IP-PBX
KX-NS1000

Advertisement

   Summary of Contents for Panasonic KX-NS1000

  • Page 1

    Please read this manual carefully before using this product and save this manual for future use. In particular, be sure to read "1.1.1 For Your Safety (Page 14)" before using this product. KX-NS1000: PCMPR Software File Version 004.00000 or later Manuals and supporting information are provided on the Panasonic Web site at: http://panasonic.net/pcc/support/pbx/...

  • Page 2

    Introduction About this Programming Manual The PC Programming Manual is designed to serve as a system programming reference for the Panasonic Pure IP-PBX. It explains how to programme this PBX using Web Maintenance Console. The PC Programming Manual is divided into the following sections: Section 1, Overview Provides an overview of programming the PBX.

  • Page 3

    • Some optional hardware, software, and features are not available in some countries/areas, or for some PBX models. Please consult your certified Panasonic dealer for more information. • Product specifications, including text displayed by the software, are subject to change without notice.

  • Page 4: Table Of Contents

    Table of Contents Table of Contents 1 Overview ....................13 Introduction ........................14 1.1.1 For Your Safety ......................14 1.1.2 Introduction ........................16 1.1.3 Entering Characters .......................17 PC Programming ......................21 1.2.1 Starting Web Maintenance Console ................21 1.2.2 PC Programming Using Off-line Mode ................25 1.2.2.1 Editing and Printing Terminal Labels in Off-line Mode ..........30 1.2.3 PBX Configuration Types ....................31...

  • Page 5: Table Of Contents

    Table of Contents 6.1.2 Tool—System Data Backup—Backup to NAS ...............89 Tool—BRI Automatic Configuration ................90 Tool—NDSS Link Data Clear ..................91 Tool—Call Pickup for My Group ..................92 Tool—Extension List View .....................93 Tool—Import ........................94 Tool—Export ........................99 Tool—Screen Customise ....................100 Tool—UM Data Backup ....................101 6.9.1 Tool—UM Data Backup—Manual Backup ..............102 6.9.2...

  • Page 6: Table Of Contents

    Table of Contents Utility—Email Notification ....................150 7.7.1 Utility—Email Notification—Alert ..................150 7.7.2 Utility—Email Notification—System Analysis ...............152 7.7.3 Utility—Email Notification—Test Email .................153 Utility—Command ......................154 7.8.1 Utility—Command—UM Command ................154 7.8.2 Utility—Command—Router Command ................154 Utility—UM – System Prompts Customisation ............155 7.10 Utility—Automatic Two-way Recording ..............157 7.10.1 Utility—Automatic Two-way Recording—Supervisor Setting ........157 7.10.2...

  • Page 7: Table Of Contents

    Table of Contents 9.18 PBX Configuration—[1-1] Configuration—Slot—V-IPCS4—Card Property .....351 9.19 PBX Configuration—[1-1] Configuration—Slot—V-IPCS4—Port Property ....354 9.20 PBX Configuration—[1-1] Configuration—Slot—V-UTEXT32—Card Property ..364 9.21 PBX Configuration—[1-1] Configuration—Slot—V-UTEXT32—Port Property ..367 9.22 PBX Configuration—[1-1] Configuration—Slot— SLC2 - Card Property ....381 9.23 PBX Configuration—[1-1] Configuration—Slot—SLC2 - Port Property ....384 9.24 PBX Configuration—[1-1] Configuration—Slot—Card Property - LCO type ...386 9.25...

  • Page 8: Table Of Contents

    Table of Contents 10.11.2 PBX Configuration—[2-11-2] System—Audio Gain—Card ..........575 11 PBX Configuration—[3] Group ............577 11.1 PBX Configuration—[3-1] Group—Trunk Group ............578 11.1.1 PBX Configuration—[3-1-1] Group—Trunk Group—TRG Settings ......578 11.1.2 PBX Configuration—[3-1-2] Group—Trunk Group—Local Access Priority ....584 11.1.3 PBX Configuration—[3-1-3] Group—Trunk Group—Caller ID Modification ....585 11.1.4 PBX Configuration—[3-1-4] Group—Trunk Group—Dialling Plan .......590 11.1.4.1...

  • Page 9: Table Of Contents

    Table of Contents 12.1.2 PBX Configuration—[4-1-2] Extension—Wired Extension—FWD/DND .......681 12.1.3 PBX Configuration—[4-1-3] Extension—Wired Extension—Speed Dial ......682 12.1.4 PBX Configuration—[4-1-4] Extension—Wired Extension—Flexible Button ....683 12.1.4.1 PBX Configuration—[4-1-4] Extension—Wired Extension—Flexible Button—Flexible button data copy ......................694 12.1.5 PBX Configuration—[4-1-5] Extension—Wired Extension—PF Button ......695 12.1.6 PBX Configuration—[4-1-6] Extension—Wired Extension—NDSS Link Data - Send ..........................696...

  • Page 10: Table Of Contents

    Table of Contents 17 PBX Configuration—[9] Private Network ...........799 17.1 PBX Configuration—[9-1] Private Network—TIE Table ..........800 17.2 PBX Configuration—[9-2] Private Network—Network Data Transmission ....803 17.3 PBX Configuration—[9-3] Private Network—Network Operator (VoIP) ....806 17.4 PBX Configuration—[9-4] Private Network—NDSS Key Table .........808 17.5 PBX Configuration—[9-5] Private Network—Centralised UM/VM Unit .....810 18 PBX Configuration—[10] CO &...

  • Page 11: Table Of Contents

    Table of Contents 24.1 UM Configuration—[5-1] System Parameters—Mailbox Group ........958 24.2 UM Configuration—[5-2] System Parameters—Extension Group ......960 24.3 UM Configuration—[5-3] System Parameters—System Caller Name Announcement ......................962 24.4 UM Configuration—[5-4] System Parameters—Parameters ........964 25 UM Configuration—[6] H/W Settings ..........991 25.1 UM Configuration—[6] H/W Settings ................992 26 UM Configuration—[7] System Security ..........993 26.1 UM Configuration—[7] System Security ..............994...

  • Page 12: Table Of Contents

    Table of Contents 29.1.1 KX-NS1000 PCMPR Software File Version 002.0xxxx ..........1116 29.1.2 KX-NS1000 PCMPR Software File Version 002.1xxxx ..........1118 29.1.3 KX-NS1000 PCMPR Software File Version 003.0xxxx ..........1118 29.1.4 PCMPR Software File Version 003.2xxxx ..............1120 29.1.5 PCMPR Software File Version 004.0xxxx ..............1120 Feature Programming References ............1123...

  • Page 13: Overview

    Section 1 Overview This section provides an overview of programming the PBX. PC Programming Manual...

  • Page 14: Introduction

    1.1.1 For Your Safety 1.1 Introduction 1.1.1 For Your Safety To prevent personal injury and/or damage to property, be sure to observe the following safety precautions. The following symbols classify and describe the level of hazard and injury caused when this unit is operated or handled improperly.

  • Page 15

    Unplug the PBX from the AC outlet if it emits smoke, an abnormal smell or makes unusual noise. These conditions can cause fire or electric shock. Confirm that smoke has stopped and contact an authorised Panasonic Factory Service Centre. CAUTION •...

  • Page 16

    1.1.2 Introduction 1.1.2 Introduction These programming instructions are designed to serve as an overall system programming reference for the PBX. Each feature in the PBX has default settings that can be changed to customise the PBX to your requirements. These settings control the functions of the PBX, and changing them is referred to as "system programming".

  • Page 17: Entering Characters

    1.1.3 Entering Characters 1.1.3 Entering Characters The characters on a white background below can be used when storing a name, message, password or other text entry data using a PC. The available characters vary according to the model of PBX. Table 1 (Standard) PC Programming Manual...

  • Page 18

    1.1.3 Entering Characters Table 2 (For CE model) PC Programming Manual...

  • Page 19

    1.1.3 Entering Characters Table 3 (For RU model) PC Programming Manual...

  • Page 20

    1.1.3 Entering Characters Table 4 (For GR model) PC Programming Manual...

  • Page 21: Pc Programming

    1.2.1 Starting Web Maintenance Console 1.2 PC Programming 1.2.1 Starting Web Maintenance Console System programming, diagnosis and administration can be performed with a PC using Web Maintenance Console. Web Maintenance Console is accessed through a Web browser running on a networked PC. This section describes how to set up and access Web Maintenance Console.

  • Page 22

    1.2.1 Starting Web Maintenance Console For details regarding the above settings, refer to your Web browser’s documentation. PC Specifications (for programming) The following are recommended specifications for PCs used for programming. For details about programming in Off-line mode, see 1.2.2 PC Programming Using Off-line Mode. Recommended Specification 3.2 GHz Intel Core™...

  • Page 23

    – http://kx-ns1000. Note • If entering "http://kx-ns1000.", be sure to include the period at the end as shown. • If connecting using 223.0.0.1 takes a long time, configure a static IP address for the PC. LAN or VPN connection: Launch your Web browser and input the IP address of the PBX followed by the Web Maintenance Console port number into the address bar.

  • Page 24

    1.2.1 Starting Web Maintenance Console The Web Maintenance Console login screen is displayed. For details about logging in, see 2.1.3 Logging in to Web Maintenance Console. • If this is the first time the PBX is accessed (i.e., it is in its initialised, factory default state), you must log in using the Installer level account.

  • Page 25: Pc Programming Using Off-line Mode

    1.2.2 PC Programming Using Off-line Mode 1.2.2 PC Programming Using Off-line Mode PC Programming is performed by connecting to the PBX using Web Maintenance Console, which is also known as On-line mode. However, as certain programming requires installed cards to be set to out of service (OUS), or requires system settings to be changed, some programming cannot be performed while the PBX is in use.

  • Page 26

    Easy Setup Wizard. For details, see 2.1.4 Easy Setup Wizard. To convert a KX-TDE/KX-NCP/KX-TDA100D’s system data file to KX-NS1000 KX-TDE/KX-NCP/KX-TDA100D system data can be converted for use with the KX-NS1000 by using the Database Converter. In the Programme Launcher, click Database Converter. The Database Converter screen will be displayed in your PC.

  • Page 27

    PBX. When you use the following procedure to open a system file created using a previous version of the KX-NS1000 software, a confirmation screen will be displayed asking whether you want to convert the system data to the latest software version.

  • Page 28

    1.2.2 PC Programming Using Off-line Mode Additional display language files may be made available. To add a display language not listed in the language selection menu, select Additional language, and then click Browse to specify the language file. After specifying a language file, click OK to change to the selected language. VoIP Test Tool Click the VoIP Test Tool button to launch the VoIP Test Tool.

  • Page 29

    1.2.2 PC Programming Using Off-line Mode Notice • If the PC running the Off-line Web Maintenance Console is shut down, the Web browser is closed, or the user logs out, any changes that have not been saved will be lost. Be sure to regularly save data while programming.

  • Page 30: Editing And Printing Terminal Labels In Off-line Mode

    1.2.2 PC Programming Using Off-line Mode 1.2.2.1 Editing and Printing Terminal Labels in Off-line Mode Follow the procedure below to print key label sheets for use with your system’s extensions and DSS consoles. In On-line mode, export PBX system data to your PC, and then open the exported data in Off-line mode. In On-line mode, use the File Transfer PBX to PC utility to save your system’s data and settings to your PC.

  • Page 31: Pbx Configuration Types

    Multiple KX-NS1000 PBXs can be connected together in a configuration called a One-look network. One KX-NS1000 PBX serves as the Master unit, and other KX-NS1000 PBXs connect to the Master unit as Slave units. Slave unit PBXs receive settings and operation instructions from the Master unit PBX. With this configuration, it is easy to make network-wide changes by performing programming at only one PBX.

  • Page 32

    One-look network. Programming is still performed by logging in to the PBX using Web Maintenance Console. A KX-NS1000 PBX (including the Master unit of a One-look network) can also connect to other PBXs using standards such as H.323. For details about other networking configurations, refer to "4.2.2 Network Type Comparison"...

  • Page 33: One-look Networking Survivability

    1.2.3 PBX Configuration Types 1.2.3.1 One-look Networking Survivability A One-look network can be configured so that even if a site’s main PBX fails or is otherwise disconnected from the network, operation of the One-look Network as a whole continues. One-look Networking Survivability provides the following features: •...

  • Page 34

    1.2.3 PBX Configuration Types PC Programming Manual...

  • Page 35: Introduction Of Web Maintenance Console

    Section 2 Introduction of Web Maintenance Console This section serves as reference operating instructions when using Web Maintenance Console to programme the PBX. PC Programming Manual...

  • Page 36

    2.1.1 Web Maintenance Console Accounts 2.1 Introduction 2.1.1 Web Maintenance Console Accounts User account levels Access to Web Maintenance Console requires a login name and password, which are assigned to accounts in the PBX. Also, access to Web Maintenance Console is controlled by different levels of authorisation. The Installer level is the highest authorisation level.

  • Page 37

    2.1.1 Web Maintenance Console Accounts Level Login Name Password Installer INSTALLER 4-16 character password, using a-z, A-Z, and 0-9 (case sensitive). For an initialised PBX that has not yet been set up, the default Installer level password is "1234". You will be prompted to choose a new password for the Installer level account when the Easy Setup Wizard is run (see 2.1.4 Easy Setup Wizard).

  • Page 38: Access Levels

    2.1.2 Access Levels 2.1.2 Access Levels Access to menu options within Web Maintenance Console is restricted depending on the level of the account and the current programming mode (see Programming Modes in 1.1.2 Introduction). When a menu option is limited to certain access levels, this is noted in this manual in the initial description of that menu option, for example: "This option is only available at Installer level."...

  • Page 39

    2.1.2 Access Levels Menu Option Off-line On-line ü ü Import®Quick Dial Import®SIP Extension ü ü ü ü Import®V-IPGW16 GW Settings ü ü Import®V-IPGW16 DN2IP ü ü Import®V-SIPGW16 Settings ü ü Import®V-SIPGW16 Provider ü ü ü ü Export®Feature - Speed Dial and Caller ID ü...

  • Page 40

    2.1.2 Access Levels Menu Option Off-line On-line ü Diagnosis®Ping File Transfer PC to PBX ü File Transfer PBX to PC ü File View ü File Delete ü Message File Transfer PC to PBX ü Message File Transfer PBX to PC ü...

  • Page 41

    2.1.2 Access Levels Menu Option Off-line On-line UM Command ü Router Command ü UM – System Prompts Customisation ü ü Automatic Two-way Recording ü ü ü ü UM - System Maintenance ü ü CS-Web Connection ü ü PC Programming Manual...

  • Page 42: Logging In To Web Maintenance Console

    2.1.3 Logging in to Web Maintenance Console 2.1.3 Logging in to Web Maintenance Console After establishing a connection to Web Maintenance Console (see 1.2.1 Starting Web Maintenance Console), the login window is displayed, and a login name and password must be entered. If this is the first time to log in to Web Maintenance Console, and the PBX is in its initialised, factory default state, you must log in using the Installer level account to begin the Easy Setup Wizard (see 2.1.4 Easy Setup Wizard).

  • Page 43: Easy Setup Wizard

    2.1.4 Easy Setup Wizard 2.1.4 Easy Setup Wizard In the Easy Setup Wizard, you will configure the mandatory settings required for the PBX. When you log in to Web Maintenance Console for a PBX that is in its initialised, factory default state, the Easy Setup Wizard for that PBX will launch automatically.

  • Page 44: Software Interface

    2.1.5 Software Interface 2.1.5 Software Interface This section explains the functions of the various elements of the software interface. Main Window When you log in to Web Maintenance Console, the main window is displayed. For information about connecting to Web Maintenance Console and logging in, see 1.2.1 Starting Web Maintenance Console. The main window of Web Maintenance Console is divided into several areas, as shown below: Logged in Account Level The logged in account level is displayed.

  • Page 45

    2.1.5 Software Interface Button Description Clicking this button will display the Setup Screen tree view items. From the Setup Screen, you can: • Configure PBX hardware and virtual cards • Programme settings for extensions and call handling • Configure network settings and auxiliary PBX functions Setup Screen •...

  • Page 46

    2.1.5 Software Interface Item Primary Functions System Control • Download and update PBX software files • Manage music on hold (MOH) data • Reset or shutdown the system For details, see Section 5 System Control. Tool • Backup system data to a USB memory device •...

  • Page 47: Standard Buttons

    2.1.5 Software Interface Site Selection Menu When you are logged in to the Master unit of a One-look network and you are viewing programming screens in the tree view, a site selection drop-down menu is displayed with each PBX site’s name and ID number. You can select a PBX site in the One-look network from the drop-down menu to programme items for that site.

  • Page 48: Card Status

    2.1.6 Card Status 2.1.6 Card Status Certain tools, utilities and settings require that the target card be set to out-of-service (OUS) or in-service (INS) status before the operation is carried out. Where required, this is noted in the description of each item. Card status changes can be performed only in On-line mode (see Programming Modes in 1.1.2 Introduction).

  • Page 49: Extension Number Setting

    2.1.7 Extension Number Setting 2.1.7 Extension Number Setting Many screens within the Maintenance Console software allow you to select extensions as part of programming various features (for example, as members of a group). These screens use a standard window to make selecting multiple extensions easy, accessed by clicking a button.

  • Page 50: Logout

    2.2 Logout 2.2 Logout To logout of Web Maintenance Console, click the button to end the programming session and return to the Login screen. When this option is chosen, system data is automatically saved from the temporary memory (DRAM) of the PBX to the Storage Memory Card. To logout Click the button.

  • Page 51: Frequently Asked Questions (faq)

    2.3 Frequently Asked Questions (FAQ) 2.3 Frequently Asked Questions (FAQ) This section provides answers to some common questions about using the Maintenance Console software to programme the PBX. The information is divided into the following topics: Title Description Connection Connecting to the PBX using Maintenance Console. Maintenance Console Software Using the Maintenance Console software.

  • Page 52

    2.3 Frequently Asked Questions (FAQ) Card Status The status of a new card will not change to "INS". • With the new card installed, does the total number of extensions or trunks exceed the maximum supported by the PBX? • Is the type of card installed in the slot different from the card type set as "Pre-Install"...

  • Page 53

    2.3 Frequently Asked Questions (FAQ) • The Portable Station can be forcibly de-registered by following the procedure shown Forced De-registration of 9.31 PBX Configuration—[1-2] Configuration—Portable Station. I changed the extension number of a Portable Station, but the display of the Portable Station still shows the old extension number.

  • Page 54

    2.3 Frequently Asked Questions (FAQ) • Select 3-digits for default value of Numbering Plan in the Easy Setup Wizard. If you want to change to a 3-digit extension numbering plan after the PBX system is already running using a 4-digit extension numbering plan, follow the procedure below. There are 2 methods of creating a 3-digit numbering plan, using 10.6.1 PBX Configuration—[2-6-1] System—Numbering Plan—Main: Set the leading number to be 2 digits, with one additional digit.

  • Page 55

    2.3 Frequently Asked Questions (FAQ) When modifying the Numbering Plan, how do I set a 1-digit extension number? • Perform the following steps: Clear the Leading Number cell. Click Apply. No. of Additional Digits to "None". Click Apply. Enter the desired value in the Leading Number cell.

  • Page 56

    2.3 Frequently Asked Questions (FAQ) • It is not possible to use the same number for 2 items. The number you are trying to store cannot be used if it is already being used by: • A feature number • An extension •...

  • Page 57: Setting Features

    2.3 Frequently Asked Questions (FAQ) • The following setting data is not saved to the Storage Memory Card, so will be deleted when the PBX is initialised. This data is stored in the PBX’s battery backup memory. • Advice of Charge (AOC) •...

  • Page 58

    2.3 Frequently Asked Questions (FAQ) • Trunk calls made by extensions can be restricted from the 10.7.2 PBX Configuration—[2-7-2] System—Class of Service—External Call Block screen. Click in the relevant cells to select the trunk groups that cannot be used by extensions associated with a particular COS in each time mode.

  • Page 59

    2.3 Frequently Asked Questions (FAQ) • Perform the following steps: On the 11.5.1.1 PBX Configuration—[3-5-1] Group—Incoming Call Distribution Group—Group Settings—Member List screen, from the ICD Group No. drop-down list, select the group you want to modify. The ICD group must have an extension number set. Enter the extension number of the extension you want to add in a blank cell of the Extension Number column.

  • Page 60

    2.3 Frequently Asked Questions (FAQ) PC Programming Manual...

  • Page 61: Web Maintenance Console Home Screen

    Section 3 Web Maintenance Console Home Screen This section explains how to setup the main PBX and other connected PBXs from the Home Screen of Web Maintenance Console. PC Programming Manual...

  • Page 62: Home Screen

    3.1 Home Screen 3.1 Home Screen The Home Screen of Web Maintenance Console provides an overall view of your One-look network, and allows you select a PBX to perform programming, or add a PBX to your One-look network. The Home Screen is displayed when you login to Web Maintenance Console.

  • Page 63

    3.1 Home Screen Icon Description List View Click this button to view the following information in a list format: • System Capacity Selection This field indicates the type that is selected for System Capacity Selection in Easy Setup Wizard. For details, refer to "5.4.1 Easy Setup Wizard" in the Installation Manual.

  • Page 64

    3.1 Home Screen These 15 icons represent Slave unit PBXs under the control of the Master unit PBX. Units that have been registered display a unit name and are coloured in. Remaining available unit positions are shown as greyed out. You can right-click a registered PBX and select Maintenance, Setup, or Direct Login for that PBX. Selecting Direct Login will display the Login screen for that PBX.

  • Page 65: Home Screen—add Site Wizard

    3.1.1 Home Screen—Add Site Wizard 3.1.1 Home Screen—Add Site Wizard The Add Site Wizard, which is run from the Home Screen, will add KX-NS1000 PBXs to your One-look network as Slave units. Note • The PBX to be added must have been configured as a Slave unit using the Easy Setup Wizard. See 2.1.4 Easy Setup Wizard.

  • Page 66

    3.1.1 Home Screen—Add Site Wizard A removal status screen will be displayed. Each selected PBX will be removed one at a time. After each successful removal, a confirmation message will appear. Click Continue to proceed to the next PBX to remove.

  • Page 67: Status

    Section 4 Status This section serves as reference operating instructions for the Status menu of the Maintenance screen of Web Maintenance Console. PC Programming Manual...

  • Page 68: Status—equipment Status

    From the drop-down list, select the amount of remaining battery level for when to initiate PBX shutdown procedures. For more information about setting up a UPS system, refer to "4.13 Starting the KX-NS1000—Connecting an Uninterruptible Power Supply (UPS)" in the Installation Manual.

  • Page 69: Status—equipment Status—cs Information

    4.1.2 Status—Equipment Status—CS Information 4.1.2 Status—Equipment Status—CS Information Displays information stored by the PBX regarding each Cell Station (CS). This option is only available for the Installer level account in On-line mode and requires that the target V-IPCS4 card be set to INS status. The displayed items are as follows: Item Description...

  • Page 70: Status—equipment Status—ps Information

    4.1.3 Status—Equipment Status—PS Information 4.1.3 Status—Equipment Status—PS Information Displays Portable Station (PS) registration information, including the associated Cell Station (CS). This option is only available for the Installer level account in On-line mode. The displayed items are as follows: Item Description PS No.

  • Page 71: Status—equipment Status—um Port Status

    4.1.4 Status—Equipment Status—UM Port status 4.1.4 Status—Equipment Status—UM Port status The UM Port status screen displays each port’s status and number for the Unified Messaging system. The screen will be updated every 30 seconds. Each port’s status will be displayed in one of the following ways: •...

  • Page 72: Status—equipment Status—usb

    4.1.5 Status—Equipment Status—USB 4.1.5 Status—Equipment Status—USB USB Mount Status indicates if a USB memory device is connected to the PBX. There is also an Unmount button. • Mounted: A USB memory device is connected to the PBX. Before removing the USB memory device from the PBX, click Unmount.

  • Page 73: System Control

    Section 5 System Control This section serves as reference operating instructions for the System Control menu of the Maintenance screen when programming using Web Maintenance Console. PC Programming Manual...

  • Page 74: System Control—program Update

    The programme files for the following hardware components can be updated with the Program Update feature. Each file must be named as indicated in the table to be recognised by the KX-NS1000. Hardware that can be updated using Program Update...

  • Page 75

    5.1 System Control—Program Update Programme Type Target of Update File Name Firmware for PFPGA PFPGA KX-NS1000 PAPMIRNR PAPMIRNR PARMVDNR PARMVDNR PARMIREP PARMIREP PARMVDEP PARMVDEP PC300NR PC300NR PC300EP PC300EP PC300DAG PC300DAG Unified Messaging PFAX PFAX (UM) Programme CS Programmes (PS CS using a CSIF card for DECT Portable Station...

  • Page 76: System Control—program Update—download Program File

    • When using an FTP server with this feature, the programme files to be downloaded to the KX-NS1000 PBX must be named on the FTP server in a specific way that includes the version number. Example: "PNT300_xxx_xxx_xxx" ("xxx_xxx_xxx" is the version number.)

  • Page 77

    5.1.1 System Control—Program Update—Download Program File Automatic The Master unit is set to automatically check an FTP server for updated programme files. If an update is available, the Master unit will download the data. The downloaded software is then sent over the One-look network from the Master unit to all Slave units.

  • Page 78: System Control—program Update—update Program File

    5.1.2 System Control—Program Update—Update Program File 5.1.2 System Control—Program Update—Update Program File Once updated programme files have been downloaded and are stored on a PBX, they can be used to update the system files of the PBX. The update process can be set to be automatically performed at a specified time, or the update process can be carried out manually.

  • Page 79

    5.1.2 System Control—Program Update—Update Program File Click Execute. The programme files are updated to the specified PBXs. Note • Updated PBXs reset when the update is complete. • If this operation is performed when logged in to a Slave unit only the PBX mother board and hardware specifically registered to the Slave unit may be updated.

  • Page 80: System Control—program Update—plug And Update

    5.1.3 System Control—Program Update—Plug and Update 5.1.3 System Control—Program Update—Plug and Update The Plug and Update feature allows IP-PTs, IP-CSs, and certain PSs to be automatically updated to the latest software version when they are registered to the PBX. When Plug and Update is enabled, the version number of the system software stored on the Master unit is compared to the system software currently in the device, after the device has been registered to the PBX.

  • Page 81: System Control—moh

    5.2.1 System Control—MOH—Install 5.2 System Control—MOH 5.2.1 System Control—MOH—Install Sound files on the programmer’s PC can be installed to each PBX for use as Music on Hold (MOH). This screen can be accessed only in On-line mode. Click Browse and select a WAV file to install as an MOH file. Only one file may be installed at a time. In the Select column, specify which PBX sites will install the sound file as an MOH file.

  • Page 82: System Control—moh—delete

    5.2.2 System Control—MOH—Delete 5.2.2 System Control—MOH—Delete MOH files that are occupying BGM numbers can be deleted. This screen can be accessed only in On-line mode. In BGM No., specify the BGM numbers to delete MOH files from. Specify "All" to delete the data saved in all BGM numbers.

  • Page 83: System Control—moh—status / Backup

    5.2.3 System Control—MOH—Status / Backup 5.2.3 System Control—MOH—Status / Backup MOH files stored on a PBX can be downloaded to the user’s PC. This screen can be accessed only in On-line mode. From Site No., select a PBX from which to download MOH files. The MOH files saved to the PBX will be listed.

  • Page 84: System Control—fax Card

    5.3 System Control—FAX Card 5.3 System Control—FAX Card This function is used to restart the optional FAX Card after it is installed in the PBX. For details about installing the FAX Card, refer to "4.3.4 FAX Card (KX-NS0106)" in the Installation Manual. This screen can be accessed only in On-line mode.

  • Page 85: System Control—system Reset

    5.4 System Control—System Reset 5.4 System Control—System Reset When programming changes or other changes to PBX settings require a system reset, this command allows a reset to be performed remotely from Web Maintenance Console. When the system is reset, any settings not saved to the Storage Memory Card are lost. A backup should be performed before the reset to ensure no data is lost.

  • Page 86: System Control—system Shutdown

    5.5 System Control—System Shutdown 5.5 System Control—System Shutdown In order to turn off the power to a PBX, it must first be issued a shutdown command using Web Maintenance Console. Follow the procedure below to prepare a PBX for system shutdown. When the system is shut down, any settings not saved to the Storage Memory Card are lost.

  • Page 87: Tool

    Section 6 Tool This section serves as reference for the Tool menu of the Maintenance screen of Web Maintenance Console. PC Programming Manual...

  • Page 88: Tool—system Data Backup

    USB cable must first be removed, then reconnected after the backup to USB has been completed. For details about the connection between the UPS and the PBX, refer to "4.13 Starting the KX-NS1000—Connecting an Uninterruptible Power Supply (UPS)" in the Installation Manual. Select the system data items to backup.

  • Page 89: Tool—system Data Backup—backup To Nas

    6.1.2 Tool—System Data Backup—Backup to NAS • The data on the USB memory device has become corrupted. • The USB memory device is removed from the USB port of the PBX during the restoration process. To minimise the potential of a failed backup, connect the USB memory device to a PC to confirm the USB memory device is operational and that the backup data is intact before starting this restore process.

  • Page 90: Tool—bri Automatic Configuration

    6.2 Tool—BRI Automatic Configuration 6.2 Tool—BRI Automatic Configuration Automatically configures the network settings of the BRI card. This option is only available at Installer level in On-line mode. This tool automatically inputs values into the fields L1 Mode, L2 Mode, Access Mode, and Mode, on the Network tab of the 9.27 PBX Configuration—[1-1] Configuration—Slot—Port Property - BRI Port screen.

  • Page 91: Tool—ndss Link Data Clear

    6.3 Tool—NDSS Link Data Clear 6.3 Tool—NDSS Link Data Clear Clears NDSS Link Data stored in the connected PBX. While this tool clears both monitor extension and monitored extension data, it only clears it at the connected PBX. To clear this data at other PBXs in the QSIG network, it is necessary to run this tool at those PBXs.

  • Page 92: Tool—call Pickup For My Group

    6.4 Tool—Call Pickup for My Group 6.4 Tool—Call Pickup for My Group Allows you to automatically configure settings in 10.6.2 PBX Configuration—[2-6-2] System—Numbering Plan—Quick Dial and 12.1.3 PBX Configuration—[4-1-3] Extension—Wired Extension—Speed Dial so that users can answer calls to their Call Pickup Group by pressing " 0". To activate this tool When this tree menu item is selected, a confirmation screen will be displayed.

  • Page 93: Tool—extension List View

    6.5 Tool—Extension List View 6.5 Tool—Extension List View Displays a list of all programmed extension numbers and types. It is possible to sort the information according to Extension Number, Type, Extension Name, Site, Shelf, Slot, or Port. There is also a key-word searching feature.

  • Page 94: Tool—import

    6.6 Tool—Import 6.6 Tool—Import Allows several types of system data files or tables to be imported. Except for Speed Dial and Caller ID, this option is only available at Installer level. The files from which data can be imported are files that were previously saved at this or another PBX using the Export tool (see 6.7 Tool—Export), or comma-separated value (CSV) files.

  • Page 95

    6.6 Tool—Import ARS - Leading Digit Data Type Import Destination Location Location Leading Number Leading Digit Additional Number of Digits Additional Dial Digits Routing Plan Number Route Plan Number Related programming: 16.2 PBX Configuration—[8-2] ARS—Leading Number ARS - Except Code Data Type Import Destination Location...

  • Page 96

    Location Dial Dial Phone Number Phone Number Related programming: 10.6.2 PBX Configuration—[2-6-2] System—Numbering Plan—Quick Dial *: Refer to Notices Regarding Importing Data from KX-TDE/KX-NCP PBXs to the KX-NS1000 below. SIP Extension Data Type Import Destination Location Extension Number Extension Number...

  • Page 97

    6.6 Tool—Import Data Type Import Destination Payload Type Payload Type T38 FAX Max Datagram T38 FAX Max Datagram T38 FAX UDPTL Error Correction – T38 FAX UDPTL Error Correction – Redundancy Redundancy T38 FAX UDPTL Redundancy count T38 FAX UDPTL Redundancy count for T.30 messages for T.30 messages T38 FAX UDPTL Redundancy count T38 FAX UDPTL Redundancy count for data...

  • Page 98

    Notices Regarding Importing Data from KX-TDE/KX-NCP PBXs to the KX-NS1000 Quick Dial The KX-NS1000 only supports an 8-digit Quick Dial format. Therefore, KX-TDE/KX-NCP Quick Dial data in the 4-digit format cannot be imported to the KX-NS1000. SIP Extension – Password KX-TDE/KX-NCP PBXs allow 3-digit passwords, but KX-NS1000 PBXs require password with 4 digits or more.

  • Page 99: Tool—export

    6.7 Tool—Export 6.7 Tool—Export Allows several types of system data to be exported to files. These files can be used with the Import tool (see 6.6 Tool—Import) to update another PBX. Except for ARS - Routing Plan, tables are exported as comma-separated value (CSV) files. Except for Speed Dial and Caller ID, this option is only available at Installer level.

  • Page 100: Tool—screen Customise

    6.8 Tool—Screen Customise 6.8 Tool—Screen Customise Allows you to specify which Setup and Maintenance screens can be accessed in the User (Administrator) account level. This option is only available at Installer level. Selected check boxes will be displayed in the tree menus of Web Maintenance Console to users with the User (Administrator) account level.

  • Page 101: Tool—um Data Backup

    6.9 Tool—UM Data Backup 6.9 Tool—UM Data Backup The UM Data Backup tool can be used to backup and restore Unified Messaging (UM) data. This screen can be accessed only in On-line mode. The following voice data can be backed up or restored as individual files. The data can be backed up to a USB memory device connected to the PBX or a NAS.

  • Page 102: Tool—um Data Backup—manual Backup

    6.9.1 Tool—UM Data Backup—Manual Backup 6.9.1 Tool—UM Data Backup—Manual Backup Use this procedure to manually back up Unified Messaging system data. For details on the items that can be backed up, see 6.9 Tool—UM Data Backup. To back up system prompts, select the check box next to System Prompts and select the check boxes of the items you want to back up.

  • Page 103: Tool—um Data Backup—scheduled Backup

    6.9.2 Tool—UM Data Backup—Scheduled Backup 6.9.2 Tool—UM Data Backup—Scheduled Backup You can schedule backups in advance. The Unified Messaging system will automatically back up the selected data at the scheduled times to a USB memory device or NAS connected to the PBX. (Scheduled backups cannot be made to a local PC.) For details on the items that can be backed up, see 6.9 Tool—UM Data Backup.

  • Page 104: Tool—um Data Restore

    6.10 Tool—UM Data Restore 6.10 Tool—UM Data Restore Follow the procedure below to restore data backed up using the UM Data Backup tool. This screen can be accessed only in On-line mode. For more information about the UM Data Backup tool, see 6.9 Tool—UM Data Backup. You can restore data from a USB memory device connected to the PBX or from a file on your local PC.

  • Page 105

    Voice data recorded by users in a KX-TVM series VPS can be converted and used as voice data in the KX-NS1000’s Unified Messaging system. For details, refer to "5.3 Starting Web Maintenance Console—KX-TVM System Prompt and Mailbox Data Import" in the Installation Manual.

  • Page 106: Tool—um Backup History

    6.11 Tool—UM Backup History 6.11 Tool—UM Backup History The following records for backup that have been performed can be checked on this screen: • Description • Parameters • Completion Status • Date & Time • Total Elapsed Time (HH:MM:SS) This screen can be accessed only in On-line mode. PC Programming Manual...

  • Page 107: Tool—dxdp All Ous

    6.12 Tool—DXDP All OUS 6.12 Tool—DXDP All OUS Sets the status of all DXDP/XDP extension ports to "OUS" simultaneously for the currently selected site. To set all DXDP/XDP ports to OUS for the currently selected site Access Tool—DXDP All OUS from the Maintenance Screen tree view. Click OK.

  • Page 108: Tool—contact Information

    6.13 Tool—Contact information 6.13 Tool—Contact information Dealers can set contact information for the user of the PBX here. When users select this tree menu item, this information will be displayed for the user’s reference. Input the following information, and then click OK. •...

  • Page 109: Tool—ut Option Setting

    6.14 Tool—UT Option Setting 6.14 Tool—UT Option Setting Option settings can be specified for KX-UT series SIP phones on a system-wide level. Note The following apply when programming in On-line mode only: • To apply changes made to these settings for KX-UT series SIP phones connected to Slave unit PBXs in a One-look network, be sure to click the icon after programming.

  • Page 110: Tool—url Information

    6.15 Tool—URL Information 6.15 Tool—URL Information The URL addresses for downloading the IMAP tool and the Fax Driver can be specified on this screen. These URL addresses will be used for the Unified Messaging Plug in and Fax Driver Tool download buttons displayed to users when they view the Unified Message tab of their profile in the User menu.

  • Page 111: Utility

    Section 7 Utility This section serves as reference operating instructions for the Utility menu of the Maintenance screen of Web Maintenance Console. PC Programming Manual...

  • Page 112: Utility—diagnosis

    PBX. Test Type Available Cards Local loop back diagnosis KX-NS1000 PBXs: SLC2, LCOT2, BRI4, PRI Legacy Gateways: DHLC, DLC, SLC8, SLC16, MSLC16, ESLC16, EMSLC16, CSLC16, MCSLC16, ECSLC24, MCSLC24, CSIF, LCOT8, LCOT16, ELCOT, T1, E1, BRI2, BRI4, BRI8, PRI, OPB, E&M, DID...

  • Page 113

    CS-INF loop back diagnosis* CSIF Super frame synchronization CSIF diagnosis* Caller ID card loop back diagnosis KX-NS1000 PBXs: LCOT2 Legacy Gateways: LCOT, ELCOT Extension mode setting test To perform a card test Click on the Status cell of the card to be tested, and set it to "OUS".

  • Page 114

    7.1.1 Utility—Diagnosis—Card Diagnosis Note • Cards installed in KX-NS1000 PBXs and legacy gateway KX-NCP PBXs cannot be tested using this utility. • The cards to be used for testing must be installed in the same legacy gateway PBX. The tests that are performed are as follows: Line current OFF (Ext->CO)

  • Page 115: Utility—diagnosis—ping

    7.1.2 Utility—Diagnosis—Ping 7.1.2 Utility—Diagnosis—Ping Performs a connection test on network devices. This function sends echo requests to a particular IP address across an IP network, and displays the result of responses and round-trip time. This screen can be accessed only in On-line mode. To perform a Ping test Enter a specific IP address in the IP Address box.

  • Page 116: Utility—file

    7.2.1 Utility—File—File Transfer PC to PBX 7.2 Utility—File 7.2.1 Utility—File—File Transfer PC to PBX Copies PBX system data files from the connected PC to the Storage Memory Card installed in the PBX. Pre-existing files on the Storage Memory Card are overwritten. This option is only available at Installer level when programming in On-line mode.

  • Page 117: Utility—file—file Transfer Pbx To Pc

    7.2.2 Utility—File—File Transfer PBX to PC 7.2.2 Utility—File—File Transfer PBX to PC Copies system data files from the Storage Memory Card installed in the PBX to the connected PC. This option is only available at Installer level when programming in On-line mode. The files that can be downloaded from the Storage Memory Card are as follows: File Name File Type...

  • Page 118: Utility—file—file View

    7.2.3 Utility—File—File View 7.2.3 Utility—File—File View Displays a list of files on the Storage Memory Card. This screen can be accessed only in On-line mode. The name, date and time of creation, and size of files are displayed. This utility can also display information on activation key files stored in the Storage Memory Card. The effective date, PCMPR-ID, activation key type, number of activation keys, and expiration date of activation keys are displayed on the Detail screen.

  • Page 119: Utility—file—file Delete

    7.2.4 Utility—File—File Delete 7.2.4 Utility—File—File Delete Allows you to delete files from the Storage Memory Card. This option is only available at Installer level in On-line mode. The DCSYS system file cannot be deleted by this utility. Note Programme files cannot be deleted if the Program Update feature’s timed update is set, or if an update is currently being performed.

  • Page 120: Utility—file—message File Transfer Pc To Pbx

    7.2.5 Utility—File—Message File Transfer PC to PBX 7.2.5 Utility—File—Message File Transfer PC to PBX Transfers Outgoing Message (OGM) files from the PC to the Storage Memory Card. This option is only available at Installer level when programming in On-line mode. Uploaded files are automatically renamed as necessary.

  • Page 121: Utility—file—message File Transfer Pbx To Pc

    7.2.6 Utility—File—Message File Transfer PBX to PC 7.2.6 Utility—File—Message File Transfer PBX to PC Transfers Outgoing Message (OGM) files from the Storage Memory Card to the PC. This option is only available at Installer level when programming in On-line mode. To transfer OGMs to the PC From the lower drop-down list, select the messages to transfer.

  • Page 122: Utility—log

    7.3.1 Utility—Log—Error Log 7.3 Utility—Log 7.3.1 Utility—Log—Error Log Collects and displays system error information. Whenever there is a system failure, the PBX stores the error code generated. The connected PC collects all of these codes, along with other information, and displays an explanatory error message. This screen can be accessed only in On-line mode.

  • Page 123

    Corresponds to site numbers of PBXs in the One-look network (1 to 16) Slot Type For physical slots (including physical slots of legacy gateway PBXs) – " " (blank) For KX-NS1000 virtual slots – "*" (asterisk) Shelf Number • –...

  • Page 124

    7.3.1 Utility—Log—Error Log Sub Code Description Slot Number When X is not 4 or 5 Physical shelf Mother board slot: 00 Regular slots: 01–05 Legacy gateway STACK-S card: 00 Optional physical service card slots: – KX-TDE600/KX-TDA600: 01–10 – KX-TDE620/KX-TDA620: 01–11 –...

  • Page 125: Utility—log—syslog

    7.3.2 Utility—Log—Syslog 7.3.2 Utility—Log—Syslog Displays a log of system events. Each entry in the log includes the following information: • Type: Describes the type of system event. • Date: The date and time the system event occurred. • Message: Details about the system event. This screen can be accessed only in On-line mode.

  • Page 126: Utility—log—web-mc Event Log

    7.3.3 Utility—Log—Web-MC Event Log 7.3.3 Utility—Log—Web-MC Event Log The Web-MC Event Log retains information about user interaction with Web Maintenance Console. This screen can be accessed only in On-line mode. The items displayed on screen are as follows: Item Description Date The date of the event.

  • Page 127: Utility—log—um System Log

    7.3.4 Utility—Log—UM System Log 7.3.4 Utility—Log—UM System Log You can export a log of events from the Unified Messaging system for troubleshooting purposes. This screen can be accessed only in On-line mode. Click OK to export a UM System Log file. Click Save to save the data to a local file.

  • Page 128: Utility—monitor/trace

    From the Site-Shelf-Slot No. drop-down list, select the target slot. Each card will be preceded by the pattern "X-Y-Z" as follows: • X: Site number (1–16) • Y: Shelf number (1–3) – 1: KX-NS1000 physical shelf – 2: Legacy Gateway 1 – 3: Legacy Gateway 2 • Z: Slot number (1–11) From the Trace Data Type drop-down list, select the type of data to view.

  • Page 129: Utility—monitor/trace—v-ipgw16 Protocol Trace

    7.4.2 Utility—Monitor/Trace—V-IPGW16 Protocol Trace 7.4.2 Utility—Monitor/Trace—V-IPGW16 Protocol Trace This utility collects trace data of protocol activity from V-IPGW16 card. This option is only available at Installer level in On-line mode, and requires that the target V-IPGW16 card be set to INS status. To save trace data to the Storage Memory Card From the Utility menu, select V-IPGW16 Protocol Trace.

  • Page 130: Utility—monitor/trace—v-sipgw16 Protocol Trace

    7.4.3 Utility—Monitor/Trace—V-SIPGW16 Protocol Trace 7.4.3 Utility—Monitor/Trace—V-SIPGW16 Protocol Trace The trace data of protocol activity can be collected from the V-SIPGW16 card and saved to a PC using the V-SIPGW16 Protocol Trace. This option requires that the target V-SIPGW16 card be set to INS status. This option is only available at Installer level in On-line mode.

  • Page 131: Utility—monitor/trace—air Sync Group

    7.4.4 Utility—Monitor/Trace—Air Sync Group 7.4.4 Utility—Monitor/Trace—Air Sync Group This utility monitors the status of CSs being synchronised with air synchronisation. CSs receive data from other CSs that they are currently synchronised with. Current Sync CS information is displayed for IP-CSs that are in INS status.

  • Page 132: Utility—monitor/trace—lan Sync Group

    7.4.5 Utility—Monitor/Trace—LAN Sync Group 7.4.5 Utility—Monitor/Trace—LAN Sync Group This utility monitors the status of CSs being synchronised with LAN synchronisation (KX-NS0154 only). CSs receive data from other CSs that they are currently synchronised with. Information is displayed for IP-CSs that are in INS status.

  • Page 133

    7.4.5 Utility—Monitor/Trace—LAN Sync Group Navigate to the folder in which you want to save the file. Enter a file name. Click Save. The dialogue box will close. PC Programming Manual...

  • Page 134: Utility—monitor/trace—fax - Protocol Trace

    7.4.6 Utility—Monitor/Trace—Fax - Protocol Trace 7.4.6 Utility—Monitor/Trace—Fax - Protocol Trace This screen displays trace information for faxes sent and received by the PBX’s FAX Card. This screen can be accessed only in On-line mode. The following information is recorded for each fax sent or received: •...

  • Page 135: Utility—monitor/trace—fax - Task Sequence Trace

    7.4.7 Utility—Monitor/Trace—Fax - Task sequence Trace 7.4.7 Utility—Monitor/Trace—Fax - Task sequence Trace This screen displays a log of events related to fax activity. This screen can be accessed only in On-line mode. To save a copy of the log, click Save Trace and follow the prompts. PC Programming Manual...

  • Page 136: Utility—monitor/trace—um System Trace (internal)

    7.4.8 Utility—Monitor/Trace—UM System Trace (Internal) 7.4.8 Utility—Monitor/Trace—UM System Trace (Internal) Unified Messaging (UM) system processes can be monitored and logged. This screen can be accessed only in On-line mode. The following data can be traced and logged for each UM port, or all UM ports: •...

  • Page 137: Utility—monitor/trace—t1/e1 Signalling Bit Monitor

    7.4.9 Utility—Monitor/Trace—T1/E1 Signalling Bit Monitor 7.4.9 Utility—Monitor/Trace—T1/E1 Signalling Bit Monitor Displays reference signalling bit information for all channels of a T1 or E1 card that is installed in a legacy gateway by monitoring sent and received A, B, C and D bits. This utility is intended for use by dealers. For information about legacy gateways, see 9.29 PBX Configuration—[1-1] Configuration—Slot—Legacy-GW1/Legacy-GW2.

  • Page 138: Utility—monitor/trace—t1/e1 Line Trace

    7.4.10 Utility—Monitor/Trace—T1/E1 Line Trace 7.4.10 Utility—Monitor/Trace—T1/E1 Line Trace Traces the sent and received signalling bits and dial numbers on the specified channel of the T1 or E1 line of a card installed in a legacy gateway. This utility is intended for use by dealers. For information about legacy gateways, see 9.29 PBX Configuration—[1-1] Configuration—Slot—Legacy-GW1/Legacy-GW2.

  • Page 139: Utility—report

    7.5.1 Utility—Report—Digital Trunk Error Report 7.5 Utility—Report 7.5.1 Utility—Report—Digital Trunk Error Report Displays accumulated information on various types of errors occurring on digital trunks. This option is only available at Installer level in On-line mode. The value displayed for each error item is the number of times that each error occurred during the time period selected.

  • Page 140: Utility—report—ip Extension Statistical Information

    7.5.2 Utility—Report—IP Extension Statistical Information 7.5.2 Utility—Report—IP Extension Statistical Information Displays accumulated statistical information on IP extensions, IP-CSs (KX-NS0154 only), V-IPEXT32 cards, V-IPCS4 cards, and the DSP card. This screen can be accessed only in On-line mode. The displayed items are as follows: Item Description Collection Started Time...

  • Page 141: Utility—report—um View Reports

    7.5.3 Utility—Report—UM View Reports 7.5.3 Utility—Report—UM View Reports Unified Messaging (UM) system reports can be generated in order to monitor voice mail operations. Reports can be displayed on a PC, printed, or exported. This screen can be accessed only in On-line mode. To view a report In the View Report tab, select the desired report from the Report Parameters drop-down list.

  • Page 142

    7.5.3 Utility—Report—UM View Reports Report Type Description Call Account Report The call account report displays information about outgoing call activity. Information can be shown by UM port or by mailbox. The report includes date, starting time, used port, connection time, called telephone number, call type, exit status of each callout, total callouts number and the connection time for local or long distance call, and total number of outgoing calls.

  • Page 143

    7.5.3 Utility—Report—UM View Reports Report Type Description Security Information Report The security information report displays information about mailbox accesses. The report includes the date of the last change and last access, number of total accesses, login, and failed accesses. Hourly Statistics Report The hourly statistics report displays information about the number of incoming or outgoing calls, the connected time per hour, etc.

  • Page 144: Utility—report—e-mail Report

    7.5.4 Utility—Report—E-mail Report 7.5.4 Utility—Report—E-mail Report A log of information about e-mail messages sent using the functions of the PBX can be viewed in the E-mail Report. This screen can be accessed only in On-line mode. The information in the report includes the following items for each e-mail message sent: •...

  • Page 145: Utility—report—ip-cs Information

    7.5.5 Utility—Report—IP-CS Information 7.5.5 Utility—Report—IP-CS Information 7.5.5.1 Utility—Report—IP-CS Information—IP-CS Statistical Information Displays accumulated statistical information on the usage of wireless channels and air synchronisation of IP-CSs. This screen can be accessed only in On-line mode. The displayed items are as follows: Item Description Date...

  • Page 146: Utility—report—ip-cs Information—lan Sync Information

    7.5.5 Utility—Report—IP-CS Information 7.5.5.2 Utility—Report—IP-CS Information—LAN Sync Information Displays accumulated statistical information on the performance of CSs being synchronised using LAN synchronisation. On this screen, you can view the performance of wireless devices on the LAN, which is useful for troubleshooting and determining whether the number of channels needs to be increased. This screen can be accessed only in On-line mode.

  • Page 147

    7.5.5 Utility—Report—IP-CS Information Item Description Short Term Diag The short term (within the previous 1 hour) diagnosis for LAN synchronisation. • Indeterminable: Status cannot be determined. • Indeterminable (IGPM Querier not found): Status cannot be determined because the IGPM querier could not be found. •...

  • Page 148: Utility—report—ip-cs Information—ps Call Disconnect Log

    7.5.5 Utility—Report—IP-CS Information 7.5.5.3 Utility—Report—IP-CS Information—PS Call Disconnect Log Displays a list of PS calls that have been disconnected at the CS selected on the parent screen. This log can be saved as a text file. This screen can be accessed by clicking the "PS Call Disconnect Log" link on either the IP-CS Statistical Information screen or the LAN Sync Information screen.

  • Page 149: Utility—activation Key Installation

    7.6 Utility—Activation Key Installation 7.6 Utility—Activation Key Installation Activation keys for various features of the PBX can be installed using this screen. Activation key files are copied from a PC to the PBX and activated. Use the below procedure to install activation key files to a PBX. This screen can be accessed only in On-line mode.

  • Page 150: Utility—email Notification

    7.7.1 Utility—Email Notification—Alert 7.7 Utility—Email Notification 7.7.1 Utility—Email Notification—Alert You can specify e-mail addresses that will receive messages regarding the PBX’s status. System Alarm An e-mail message will be sent to the specified address when there is a system alarm. The e-mail message will contain details about the alarm.

  • Page 151

    7.7.1 Utility—Email Notification—Alert • Poltys CCRecord Analogue A.L. (12 ports) • Poltys CCRecord Analogue A.L. (16 ports) • Poltys CCRecord Analogue A.L. (24 ports) • Poltys CCRecord Digital A.L. (8 ports) • Poltys CCRecord Digital A.L. (16 ports) • Poltys CCRecord Digital A.L. (24 ports) •...

  • Page 152: Utility—email Notification—system Analysis

    7.7.2 Utility—Email Notification—System Analysis 7.7.2 Utility—Email Notification—System Analysis Send a specific log file to the designated e-mail address(es). This screen can be accessed only in On-line mode. Check the Log File Type drop-down menu, select a log file to send to the e-mail address. Enter up to 2 e-mail addresses in Email Address 1 and Email Address 2.

  • Page 153: Utility—email Notification—test Email

    7.7.3 Utility—Email Notification—Test Email 7.7.3 Utility—Email Notification—Test Email Send a test e-mail to confirm e-mail sending settings are correctly configured. This screen can be accessed only in On-line mode. Enter up to 2 e-mail addresses in Email Address 1 and Email Address 2. In Subject, enter text to be used as the subject line of the e-mail sent.

  • Page 154: Utility—command

    7.8.2 Utility—Command—Router Command 7.8 Utility—Command 7.8.1 Utility—Command—UM Command System commands can be sent directly to the Unified Messaging system using the Commands dialogue. This screen can be accessed only in On-line mode. Follow the steps below to use the Commands dialogue: Enter the desired command, then click RUN.

  • Page 155: Utility—um – System Prompts Customisation

    7.9 Utility—UM – System Prompts Customisation 7.9 Utility—UM – System Prompts Customisation The System Prompts customisation screen is used to view, play, add, or delete system prompts. The programmer can also check the prompt number and text for these prompts. This screen can be accessed only in On-line mode.

  • Page 156

    7.9 Utility—UM – System Prompts Customisation Starting and Stopping System Prompt Playback Select the desired system prompts. Click Play/Record. Click Play or Stop. PC Programming Manual...

  • Page 157: Utility—automatic Two-way Recording

    7.10.1 Utility—Automatic Two-way Recording—Supervisor Setting 7.10 Utility—Automatic Two-way Recording 7.10.1 Utility—Automatic Two-way Recording—Supervisor Setting Specify the extensions of supervisors that will control the Automatic Two-way Recording feature for agent extensions. These settings may be changed by a programmer with a User (Administrator) account. Click Add/Delete.

  • Page 158: Utility—automatic Two-way Recording—extension Setting

    7.10.2 Utility—Automatic Two-way Recording—Extension Setting 7.10.2 Utility—Automatic Two-way Recording—Extension Setting Specify the Automatic Two-way Recording settings for each supervisor. These settings may be changed by a programmer with a User (Administrator) account. From the Select a Supervisor drop-down list, select a supervisor (specified in 7.10.1 Utility—Automatic Two-way Recording—Supervisor Setting).

  • Page 159: Utility—automatic Two-way Recording—extension Setting List

    7.10.3 Utility—Automatic Two-way Recording—Extension Setting List 7.10.3 Utility—Automatic Two-way Recording—Extension Setting List In this list you can view the settings of extensions that are programmed to have calls recorded by the Automatic Two-way Recording feature. Information for each extension, including the extension’s supervisor, UM Group number, and Automatic Two-way Recording destination mailbox is displayed.

  • Page 160: External Call

    7.10.3 Utility—Automatic Two-way Recording—Extension Setting List Maintenance Console Location 7.10.3 Utility—Automatic Two-way Recording—Extension Setting List Feature Guide References 3.2.1.4 Automatic Two-way Recording for Manager External Call Specifies whether trunk calls for the extension are automatically recorded. Value Range On, Off Maintenance Console Location 7.10.3 Utility—Automatic Two-way Recording—Extension Setting List Feature Guide References...

  • Page 161: Mailbox Number

    7.10.3 Utility—Automatic Two-way Recording—Extension Setting List PC Programming Manual References 7.10.1 Utility—Automatic Two-way Recording—Supervisor Setting Feature Guide References 3.2.1.4 Automatic Two-way Recording for Manager UM Group No. Indicates the UM group number in which the two-way recording will be performed (reference only). Value Range Group number and group name Maintenance Console Location...

  • Page 162: Utility—automatic Two-way Recording—maintenance

    7.10.4 Utility—Automatic Two-way Recording—Maintenance 7.10.4 Utility—Automatic Two-way Recording—Maintenance Automatic Two-way Recording can be enabled or disabled, or set to record until a specified date and time by a programmer with a User (Administrator) account. To start Automatic Two-way Recording, click Start. The button will change to display Stop. Two-way recording for all designated extensions will continue until one of the following occurs: •...

  • Page 163: Utility—um - System Maintenance

    7.11 Utility—UM - System Maintenance 7.11 Utility—UM - System Maintenance Programme settings for Unified Messaging (UM) system maintenance. System Maintenance Mode Specifies whether to enable or disable System Maintenance Mode. System Maintenance Start Time Specifies the System Maintenance start time. After specifying the settings on this screen, click OK.

  • Page 164: Utility—cs-web Connection

    7.12 Utility—CS-Web Connection 7.12 Utility—CS-Web Connection You can specify the URL of the Super Master CS for your system, which will be used for accessing online CS-Web system programming. For details about the Super Master CS and setting up SIP-CSs, refer to the SIP-CS Installation Guide.

  • Page 165: User

    Section 8 Users This section serves as reference operating instructions for the Users menu of the Setup screen of Web Maintenance Console. PC Programming Manual...

  • Page 166: Users—user Profiles

    8.1 Users—User Profiles 8.1 Users—User Profiles Manage PBX settings on a per-user level. Information for each user account is displayed and can be added, edited, or and deleted by a User (Administrator) or Installer level account. Note • For User (Administrator) accounts to change User (User) account settings, the Installer account must use the Screen Customise tool to allow User (Administrator) accounts to view the Users—User Profiles screen.

  • Page 167: User Controls

    8.1 Users—User Profiles Item Description FWD setting - call from CO Specifies the FWD destination for calls from trunks. Destination FWD/DND setting - call from Ext. Specifies the FWD/DND setting for calls from extensions. Mode FWD setting - call from Ext. Specifies the FWD destination for calls from extensions.

  • Page 168

    8.1 Users—User Profiles If these items are greyed out, click Direct Login to log in directly to the PBX associated with the UM Group of your mailbox to make changes to these items. • , and buttons are not visible for User (User) level accounts. PC Programming Manual...

  • Page 169: Users—user Profiles—advanced Setting

    8.1.1 Users—User Profiles—Advanced setting 8.1.1 Users—User Profiles—Advanced setting When User (User) level accounts access their user profiles, they may view and edit items for their account as explained in 8.2.1 Users—Add User—Single User. In addition, some advanced settings can also be programmed by users.

  • Page 170

    8.1.1 Users—User Profiles—Advanced setting Maintenance Console Location 8.1.1 Users—User Profiles—Advanced setting Feature Guide References 3.2.2.7 Call Transfer Scenario Call Transfer Status—VIP Filter Specifies whether calls from certain telephone numbers will be transferred directly to a specified extension or telephone number. Note This setting can only be set to "Enable"...

  • Page 171

    8.1.1 Users—User Profiles—Advanced setting Maintenance Console Location 8.1.1 Users—User Profiles—Advanced setting Feature Guide References 3.2.2.7 Call Transfer Scenario Call Transfer Status—Transfer to specified Custom Service Menu Select a Custom Service from the drop-down menu if "Transfer to specified Custom Service Menu" is selected Call Transfer Status—Selection.

  • Page 172

    8.1.1 Users—User Profiles—Advanced setting Call Transfer Status—Transfer to specified telephone number 2, 3, 4, 5 (Selection/Other) If "None" or "Call screening" is selected for Call Transfer Status—Selection, and the call could not be transferred to the number specified in Call Transfer Status—Transfer to specified telephone number - 1, the call will be transferred according to these settings for this scenario, in numerical order of priority.

  • Page 173

    8.1.1 Users—User Profiles—Advanced setting Note More than one option can be selected. Value Range Leave a Message: Allows the caller to record a message. Transfer to a covering extension: Transfers the caller to a covering extension. Page the mailbox owner by intercom paging: Pages the subscriber by intercom. Transfer to operator: Transfers the caller to an operator.

  • Page 174: Users—add User

    8.2.1 Users—Add User—Single User 8.2 Users—Add User 8.2.1 Users—Add User—Single User The Add User—Single User screen provides a method to create user accounts and establish PBX settings on a per-user level. When adding a user, the following settings can be specified. This screen will also be displayed with information already entered when editing an existing user.

  • Page 175

    8.2.1 Users—Add User—Single User • The First Name and Last Name are copied to the corresponding First Name and Last Name on the following screen for the specified mailbox number. C. 20.1.2 UM Configuration—[1-2] Mailbox Settings—Full Setting—Mailbox Parameters • Changing the name settings in the Extension Settings or Mailbox Settings screens listed above will not change the First Name or Last Name on this screen (the copying function is one-way).

  • Page 176

    8.2.1 Users—Add User—Single User Unified Message Item Description UM Group No. Select a UM group for the user from the drop-down list. Mailbox Number Enter the UM mailbox for the user. Class of Service Select a COS for the user from the drop-down list. (COS) Prompt Registration* Click Prompt Registration to open the User Prompt Registration screen.

  • Page 177

    8.2.1 Users—Add User—Single User Item Description Mailbox Password Click to specify the messaging client password for the mailbox. (Message Client)* Note This setting requires the installation of an Activation Key for Unified Messaging E-mail Notification (KX-NSU2xx) for the number of users that will be accessing their UM mailbox using a client software programme.

  • Page 178

    8.2.1 Users—Add User—Single User Note If the user changes any of their own settings, they will be applied to the user the next time they log into Web Maintenance Console. PC Programming Manual...

  • Page 179: Users—add User—multiple Users

    8.2.2 Users—Add User—Multiple Users 8.2.2 Users—Add User—Multiple Users The Add User—Multiple Users screen provides a method to create multiple user profiles for a range of extensions at one time. In the From and To fields, specify the range of extensions to create profiles for. Select the Create mailboxes with the same number as the extensions check box if you want to create Unified Messaging mailboxes whose mailbox numbers are the same as the assigned extension numbers.

  • Page 180: Users—automatic Two-way Recording

    8.3.1 Users—Automatic Two-way Recording—Edit a Recording 8.3 Users—Automatic Two-way Recording This screen is accessible only by users designated as Automatic Two-way Recording supervisors. See 7.10.1 Utility—Automatic Two-way Recording—Supervisor Setting. This screen can be accessed only in On-line mode. 8.3.1 Users—Automatic Two-way Recording—Edit a Recording On this screen, a user designated as a supervisor may change Automatic Two-way Recording settings for extensions they are supervising.

  • Page 181: Users—automatic Two-way Recording—record List

    8.3.2 Users—Automatic Two-way Recording—Record List 8.3.2 Users—Automatic Two-way Recording—Record List Users designated as supervisors can view and play messages recorded using the Automatic Two-way Recording feature. Select a UM group number from the Select a Destination UM-Group No. drop-down list. Click List View to display a list of the Automatic Two-way Recording mailboxes of the selected UM group.

  • Page 182: Users—icdg Management

    8.4.1 Users—ICDG Management—Group Monitor 8.4 Users—ICDG Management This screen is accessible only by users designated as an ACD supervisor. This screen can be accessed only in On-line mode. 8.4.1 Users—ICDG Management—Group Monitor Description Users designated as an ACD supervisor can specify an ICD group to monitor, set monitoring conditions, and begin monitoring.

  • Page 183

    8.4.1 Users—ICDG Management—Group Monitor Maintenance Console Location 8.4.1 Users—ICDG Management—Group Monitor Feature Guide References 2.2.2.9 Supervisory Feature (ACD) Basic Settings—Select ICD Group Selects the ICD groups to be managed by the ACD supervisor, from a drop-down list. Value Range ICD groups Maintenance Console Location 8.4.1 Users—ICDG Management—Group Monitor Feature Guide References...

  • Page 184

    8.4.1 Users—ICDG Management—Group Monitor Feature Guide References 2.2.2.9 Supervisory Feature (ACD) Options—Highlighted Display Settings—Waiting Time (0-10 min/10 sec) Specifies the waiting time after which calls are highlighted on the monitor screen. When this setting is set to "0", all waiting calls are highlighted. Value Range 0–10’00 Maintenance Console Location...

  • Page 185: Users—icdg Management—acd Report

    8.4.2 Users—ICDG Management—ACD Report 8.4.2 Users—ICDG Management—ACD Report Description On this screen, users designated as an ACD supervisor can create ACD reports on ICD groups after filtering according to group, agent, or call. Filtering types are separated by tabs. Supervisor selection Selects the ACD supervisor from a drop-down list.

  • Page 186

    8.4.2 Users—ICDG Management—ACD Report Feature Guide References 2.2.2.9 Supervisory Feature (ACD) Group Group—View Report To display a report according to groups, follow the procedure below. This feature requires the Call Centre Feature Enhancement activation key. If this activation key is not installed, the View Report button is greyed out.

  • Page 187

    8.4.2 Users—ICDG Management—ACD Report Item Description Max. Waiting Calls The maximum number of calls waiting in the queue of the target ICD group. Reports can be outputted in the following 3 ways. • Graph: Click the Graph button to display the report in graph form on the ACD Report - Group Graph screen.

  • Page 188

    8.4.2 Users—ICDG Management—ACD Report Feature Guide References 2.2.2.9 Supervisory Feature (ACD) Group—Filter Settings—Select Period Specifies the target period for the report. Value Range Yesterday, Last Week, Last Month, Today, This Week, This Month, Custom Period If Custom Period is selected, set Start Date/Start Time/End Date/End Time also. Maintenance Console Location 8.4.2 Users—ICDG Management—ACD Report Feature Guide References...

  • Page 189

    8.4.2 Users—ICDG Management—ACD Report Maintenance Console Location 8.4.2 Users—ICDG Management—ACD Report Feature Guide References 2.2.2.9 Supervisory Feature (ACD) Agent—Filter Settings—View Mode Selects the monitoring view mode from a drop-down list. Value Range Agent, Hour , Day, Date, Month If Hour is selected, set the monitoring range for the target group (0:00–23:59). Maintenance Console Location 8.4.2 Users—ICDG Management—ACD Report Feature Guide References...

  • Page 190

    8.4.2 Users—ICDG Management—ACD Report Maintenance Console Location 8.4.2 Users—ICDG Management—ACD Report Feature Guide References 2.2.2.9 Supervisory Feature (ACD) Call Call—View Report To display a report according to calls, follow the procedure below. This feature requires the Call Centre Feature Enhancement activation key. If this activation key is not installed, the View Report button is greyed out. Enter the report output conditions and click the View Report button.

  • Page 191

    8.4.2 Users—ICDG Management—ACD Report Call—Filter Settings—Select Group Follow the procedure below to select the target group for creating a report. Click the Select button. Click the ICD group name you want to analyse from the ICD group names displayed on the Available Group for ACD Report window.

  • Page 192

    8.4.2 Users—ICDG Management—ACD Report Maintenance Console Location 8.4.2 Users—ICDG Management—ACD Report Feature Guide References 2.2.2.9 Supervisory Feature (ACD) PC Programming Manual...

  • Page 193: Pbx Configuration—[1] Configuration

    Section 9 PBX Configuration—[1] Configuration This section serves as reference operating instructions for the Configuration menu of the PBX Configuration menu of the Setup screen of Web Maintenance Console. PC Programming Manual...

  • Page 194: Pbx Configuration—[1-1] Configuration—slot

    9.1 PBX Configuration—[1-1] Configuration—Slot 9.1 PBX Configuration—[1-1] Configuration—Slot The operating characteristics associated with each service card can be programmed. Move the mouse pointer over an installed card to display the menu of options for that card. To view a summary of status and versions for all cards installed in the PBX, click the Summary button (see 9.2 PBX Configuration—[1-1] Configuration—Slot—Summary).

  • Page 195

    Install the STACK-M card and connect the legacy gateway PBX to the STACK-M card using the supplied stacking cable. For details, refer to 4.6 Stacking Cards in the KX-NS1000 Installation Manual. In the Configuration—Slot physical shelf screen, click on the STACK-M card in the list on the right.

  • Page 196

    Legacy-GW1 or Legacy-GW2 on the slot screen to programme the PBXs connected to the STACK-M card. • For information about hardware configuration restrictions and conditions for legacy gateways, refer to Conditions for Connecting Legacy Gateways in 4.6 Stacking Cards in the KX-NS1000 Installation Manual. Supported Card Types Card...

  • Page 197

    Indicates the physical or virtual shelf where the card, extension, or device is located in the PBX. • Shelf "1" is the physical shelf of the KX-NS1000 PBX. • Shelf "2" corresponds to the physical shelf of the PBX connected to Legacy Gateway 1.

  • Page 198: Pbx Configuration—[1-1] Configuration—slot—summary

    9.2 PBX Configuration—[1-1] Configuration—Slot—Summary 9.2 PBX Configuration—[1-1] Configuration—Slot—Summary Summary information is displayed for all cards installed in the PBX. Click one of the following buttons to view a summary of the shelf in the PBX: • Physical: View the physical card shelf. •...

  • Page 199

    9.2 PBX Configuration—[1-1] Configuration—Slot—Summary IDLE: No card is installed in the slot. Maintenance Console Location 9.2 PBX Configuration—[1-1] Configuration—Slot—Summary PC Programming Manual References 9.1 PBX Configuration—[1-1] Configuration—Slot Version Indicates the software version of the installed card (reference only). Value Range Version number Maintenance Console Location 9.2 PBX Configuration—[1-1] Configuration—Slot—Summary...

  • Page 200

    9.2 PBX Configuration—[1-1] Configuration—Slot—Summary Maintenance Console Location 9.2 PBX Configuration—[1-1] Configuration—Slot—Summary PC Programming Manual References 9.1 PBX Configuration—[1-1] Configuration—Slot Status Indicates the card status (reference only). Value Range INS: The card is in service. OUS: The card is out of service. Fault: The card is not communicating with the network.

  • Page 201

    9.2 PBX Configuration—[1-1] Configuration—Slot—Summary OUS: The card is out of service. Fault: The card is not communicating with the network. Pre-Install: A card has been added to the slot. Maintenance Console Location 9.2 PBX Configuration—[1-1] Configuration—Slot—Summary PC Programming Manual References 9.1 PBX Configuration—[1-1] Configuration—Slot Version Indicates the software version of the installed card (reference only).

  • Page 202: Pbx Configuration—[1-1] Configuration—slot—activation Key Status

    9.3 PBX Configuration—[1-1] Configuration—Slot—Activation Key Status 9.3 PBX Configuration—[1-1] Configuration—Slot—Activation Key Status Refreshes and displays information about activation keys provided by any activation key files on the Storage Memory Card and by pre-installed activation keys on the mother board. To access this screen, click the Activation Key button on the Configuration—Slot main screen.

  • Page 203

    IP Proprietary Telephone (ch): Activate IP-PT/SIP-MLT SIP Extension (ch): Activate SIP-Phone for 3rd party /IP Conference Phone IP-CS channel expansion: IP-CS channel expansion to 8ch One-look Network: Multi site connection with KX-NS1000 PBXs QSIG Network: QSIG Networking Built-in Router: Built-in Router function IPsec (VPN) (16 sessions): IP-VPN (IPsec) for Built-in Router Recording Time Expansion: Recording time 2h ®...

  • Page 204

    9.3 PBX Configuration—[1-1] Configuration—Slot—Activation Key Status Call Centre Feature Enhancement: Built-in ACD Report, Announcement of waiting number for queuing Poltys C. Bridge: Communication Bridge server Poltys CA RCS-Start (user): Mobile UC client (RCS) 1year licence Poltys CA RCS-Extend (user): Mobile UC client (RCS) 1year extension licence Poltys CCAccounting: CCAccounting Poltys CCAccounting A.L.: CCAccounting (annual licence) Poltys CCAcc.

  • Page 205

    9.3 PBX Configuration—[1-1] Configuration—Slot—Activation Key Status Value Range Not applicable. Maintenance Console Location 9.3 PBX Configuration—[1-1] Configuration—Slot—Activation Key Status Features in total Indicates the total number of channels (or CA users) provided by the mother board and activation key files on the Storage Memory Card (reference only).

  • Page 206: Pbx Configuration—[1-1] Configuration—slot—system Property

    9.4 PBX Configuration—[1-1] Configuration—Slot—System Property 9.4 PBX Configuration—[1-1] Configuration—Slot—System Property The properties of the PBX system can be specified. Main DSP CODEC G.711 only (SIP extension) Specifies whether or not to only use the G.711 codec for SIP extension calls. Value Range Enable, Disable Maintenance Console Location...

  • Page 207: System Status, Memory Usage

    9.4 PBX Configuration—[1-1] Configuration—Slot—System Property Maintenance Console Location 9.4 PBX Configuration—[1-1] Configuration—Slot—System Property PC Programming Manual References 9.21 PBX Configuration—[1-1] Configuration—Slot—V-UTEXT32—Port Property—Option— System Speed Dial Download System Status CPU Usage Displays the system CPU’s current processor load, expressed as a percentage of total capacity (reference only).

  • Page 208

    9.4 PBX Configuration—[1-1] Configuration—Slot—System Property Value Range Inband, Outband (RFC2833), Outband (H.245) Maintenance Console Location 9.4 PBX Configuration—[1-1] Configuration—Slot—System Property Payload Type Specifies the payload type for DTMF tones using RFC2833. Programming this parameter is only necessary if DTMF is set to Outband (RFC2833). Value Range 96–127 Maintenance Console Location...

  • Page 209

    9.4 PBX Configuration—[1-1] Configuration—Slot—System Property Value Range 1024–65534 Maintenance Console Location 9.4 PBX Configuration—[1-1] Configuration—Slot—System Property Multisite message UDP port number Specifies the UDP port to be used for Type 2 message communication between the Master unit and Slave units. Value Range 1024–65535 Maintenance Console Location...

  • Page 210

    9.4 PBX Configuration—[1-1] Configuration—Slot—System Property Maintenance Console Location 9.4 PBX Configuration—[1-1] Configuration—Slot—System Property Gatekeeper Connection Checking Interval (*60s) Specifies the time between periodic checks of connection to the gatekeeper. Value Range 0 (disabled), 1–1440 Maintenance Console Location 9.4 PBX Configuration—[1-1] Configuration—Slot—System Property Terminal type to Gatekeeper Specifies the connection service type notified to the gatekeeper.

  • Page 211

    9.4 PBX Configuration—[1-1] Configuration—Slot—System Property Value Range 1.0.0.0–223.255.255.255 Maintenance Console Location 9.4 PBX Configuration—[1-1] Configuration—Slot—System Property Primary Gatekeeper Port Number Specifies the port number of the primary gatekeeper. Value Range 1–65535 Maintenance Console Location 9.4 PBX Configuration—[1-1] Configuration—Slot—System Property Secondary Gatekeeper IP Address Specifies the IP address of the secondary gatekeeper.

  • Page 212

    9.4 PBX Configuration—[1-1] Configuration—Slot—System Property RAS Port Number Specifies the port number for the H.225 protocol (RAS) in an H.323 protocol suite. Value Range 1–65535 Maintenance Console Location 9.4 PBX Configuration—[1-1] Configuration—Slot—System Property QSIG Connectionless Tunneling TCP Port Number Specifies the TCP port number for connectionless tunnelling between gateway devices at different locations in a QSIG network.

  • Page 213

    9.4 PBX Configuration—[1-1] Configuration—Slot—System Property Value Range Max. 20 characters Maintenance Console Location 9.4 PBX Configuration—[1-1] Configuration—Slot—System Property GW IP Address Specifies the IP address of the destination gateway device. Value Range 1.0.0.0–223.255.255.255 Maintenance Console Location 9.4 PBX Configuration—[1-1] Configuration—Slot—System Property GW Group Specifies the number of the gateway group to which the gateway entry belongs.

  • Page 214

    9.4 PBX Configuration—[1-1] Configuration—Slot—System Property Maintenance Console Location 9.4 PBX Configuration—[1-1] Configuration—Slot—System Property Progress Tone Send Mode Specifies whether to send call progress tones to the destination. When selecting External, call progress tones are audible at the destination. Value Range External, Internal Maintenance Console Location 9.4 PBX Configuration—[1-1] Configuration—Slot—System Property...

  • Page 215

    9.4 PBX Configuration—[1-1] Configuration—Slot—System Property Maintenance Console Location 9.4 PBX Configuration—[1-1] Configuration—Slot—System Property Packet Sampling Time (G.711Mu) Specifies the time interval between measurements (samples) of sound data during a conversation. The smaller this number, the higher the quality of the transmitted sound. Value Range 20 ms, 30 ms, 40 ms, 50 ms, 60 ms Maintenance Console Location...

  • Page 216

    9.4 PBX Configuration—[1-1] Configuration—Slot—System Property FAX Sending Method Specifies the method of transporting the fax signal. Value Range G.711 Inband, T.38 Maintenance Console Location 9.4 PBX Configuration—[1-1] Configuration—Slot—System Property Maximum Bit Rate Specifies the maximum bit rate of the fax signal. Value Range No Speed Limit, 2400 bps, 4800 bps, 7200 bps, 9600 bps, 12000 bps, 14400 bps Maintenance Console Location...

  • Page 217

    9.4 PBX Configuration—[1-1] Configuration—Slot—System Property Payload Type Specifies the payload type for DTMF tones using RFC2833. Programming this parameter is only necessary if DTMF is set to Outband (RFC2833). Value Range 96–127 Maintenance Console Location 9.4 PBX Configuration—[1-1] Configuration—Slot—System Property GW Settings–Option 3 GW Name Specifies the name of the destination gateway device for programming reference.

  • Page 218

    9.4 PBX Configuration—[1-1] Configuration—Slot—System Property Maintenance Console Location 9.4 PBX Configuration—[1-1] Configuration—Slot—System Property T38 FAX UDPTL Redundancy count for data Specifies the redundancy count for data when using the T.38 protocol. Value Range 0–3 Maintenance Console Location 9.4 PBX Configuration—[1-1] Configuration—Slot—System Property T38 FAX Rate Management Method Specifies the rate management method when using the T.38 protocol.

  • Page 219

    9.4 PBX Configuration—[1-1] Configuration—Slot—System Property GW No./GW Group Selection Specifies the type of destination when making calls: a gateway device or a gateway group. Value Range GW Group, GW No. Maintenance Console Location 9.4 PBX Configuration—[1-1] Configuration—Slot—System Property GW Group Specifies the number of the destination gateway group.

  • Page 220: Pbx Configuration—[1-1] Configuration—slot—site Property

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property The properties of the PBX site can be specified. When you place the mouse cursor over the Site Property button, Main, FAX Card, and NSVM buttons are displayed. Click a button to open that site property screen. 9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main Overall settings for the PBX site can be specified.

  • Page 221

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property PC Programming Manual References 1.2.3.1 One-look Networking Survivability Feature Guide References 4.2.3.1 Backup Master Mode and Isolated Mode P2P Group Specifies the peer-to-peer group of the site. Value Range 1–256 Maintenance Console Location...

  • Page 222

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property IP Terminal Registration Mode Specifies the IP terminal registration mode for registering IP telephones to the PBX. Value Range Manual, Full Automatic, Extension Input Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property Installation Manual References 5.4.1 Easy Setup Wizard...

  • Page 223

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main Echo Cancellation Ports Specifies the number of ports to be used for echo cancellation. Value Range 0–64 Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property Send Music On Hold to IP trunk (for P2P conversation) Enables the sending of hold music to an IP trunk during a P2P connection call between an IP extension and IP trunk.

  • Page 224

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property Jitter Buffer Delay Min. for Voice Specifies the minimum size of the jitter buffer for voice communications. Value Range 0–200 ms Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property Jitter Buffer Delay Max.

  • Page 225

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main Value Range 0–200 ms Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property Jitter Buffer Delay Max. for FAX Specifies the maximum size of the jitter buffer for fax communications. Value Range 0–200 ms Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property Jitter Buffer Delay Init.

  • Page 226

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main DTMF Detection Level for G.711Mu Specifies the level of DTMF detection for the G.711Mu codec. Value Range -39– -6 dB Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property CNG Signal Effective Detection Width 1 (ON) Specifies the length of time that the PBX detects the CNG signal.

  • Page 227

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property CED Signal Fixation Detection Time - SIP Extension Specifies the minimum length of time required for the CED (called station identification) signal to be detected by the PBX. Value Range 50 ´...

  • Page 228

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main CNG Signal Fixation Detection Pattern - SIP Extension Specifies the CNG signal pattern to be detected before the PBX proceeds the fax operation for SIP extensions. Value Range Off, On Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property CED Signal Fixation Detection Time - SIP Extension - SIP Extension Specifies the minimum length of time required for the CED (called station identification) signal to be detected by the PBX for SIP extensions.

  • Page 229

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main Value Range -13–2 dB Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property T38 FAX Transmit Level Mu-Law - SIP Extension Specifies the transmission level of G3 fax signals after being converted from T.38 protocol packets, when the codec used is G.711Mu for SIP extensions.

  • Page 230

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property EC Gain Specifies the Echo Canceller Gain. Value Range -14–6 dB Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property NLP Setting Specifies the NLP (Non-Linear Processor) setting to control echo sound quality. Value Range Disable, Weak, Normal, Strong Maintenance Console Location...

  • Page 231

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main Jitter Buffer Delay Min. for Voice Specifies the minimum size of the jitter buffer for voice communications. Value Range 0–200 ms Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property Jitter Buffer Delay Max. for Voice Specifies the maximum size of the jitter buffer for voice communications.

  • Page 232

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property Packet Sampling Time (G.711Mu) Specifies the time interval between measurements (samples) of sound data during a conversation. The smaller this number, the higher the quality of the transmitted sound. Value Range 20 ms, 30 ms, 40 ms, 50 ms, 60 ms Maintenance Console Location...

  • Page 233

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main For voice communications, an IP-PT uses 128 contiguous UDP ports, starting from the port number specified here. To change the value displayed here, click Common Settings and set the desired value. Value Range 1024–65535 Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property Feature Guide References 5.2.1 IP Proprietary Telephone (IP-PT)

  • Page 234

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property Feature Guide References 5.2.2.3 Simple Remote Connection Data Transmission Protocol (HTTP) Port No. for SIP-MLT Specifies the HTTP port of the PBX-side ACS for data communication with KX-UT series SIP phones. Value Range 0–65535 (Setting "0"...

  • Page 235: Lan Status

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main Value Range 1024–65535 Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property CTI Port Number Specifies the port number used to operate CTI via the LAN. Selecting "0" disables the 3rd Party CTI feature. Value Range 1024–65535 Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property...

  • Page 236

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main Value Range 1: Disconnect, 0: Connect Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property LINK for Maintenance Port Indicates the current connection status of the MNT port (reference only). Value Range 1: Disconnect, 0: Connect Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property Media Relay...

  • Page 237

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main IP Extension / IP-CS—NAT - MGCP Server Port No. for IP-CS Specifies the outside-facing MGCP port of the PBX-side network gateway for remote connections. Value Range 1–65535 Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property Feature Guide References 5.2.2.3 Simple Remote Connection IP Extension / IP-CS—Keep Alive Packet Type...

  • Page 238

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property Feature Guide References 5.2.2.3 Simple Remote Connection IP Extension / IP-CS—NAT - FTP Server Port No. Specifies the port number of FTP server for IP-CS (KX-NS0154 only). Value Range 1–65535 Maintenance Console Location...

  • Page 239

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main Value Range 1–65535 Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property Feature Guide References 5.2.2.3 Simple Remote Connection UT Extension—NAT - CWMP Server (HTTP) Port No. for Network Survivability Specifies the outside-facing HTTP port of the PBX-side network gateway for remote connections. This setting specifies the port number used for the secondary server for network survivability.

  • Page 240

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property Feature Guide References 5.2.2.3 Simple Remote Connection UT Extension—NAT - SIP-MLT Data Download Server (HTTPS) Port No. Specifies the outside-facing HTTPS port of the PBX-side network gateway for remote connections used for downloading data to KX-UT series SIP phones.

  • Page 241

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main Feature Guide References 5.2.2.3 Simple Remote Connection UT Extension—Keep Alive Packet Sending Interval Time (s) Specifies the time interval between transmissions of Keep Alive packets. Value Range 10–60 s Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property Feature Guide References 5.2.2.3 Simple Remote Connection UT Extension—SIP Register Expire Time (s)

  • Page 242

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main Value Range 30–3600 s Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property Feature Guide References 5.2.2.3 Simple Remote Connection Option—NAT - RTP IP Address Specifies the RTP server’s IP address. If using a separate IP address from Common—NAT - External IP Address, configure this setting.

  • Page 243

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property Feature Guide References 5.2.2.3 Simple Remote Connection Option—NAT - CWMP Server IP Address for Network Survivability Specifies the outside-facing IP address of the PBX-side network gateway for remote connections. This setting specifies the port number used for the secondary server for network survivability.

  • Page 244

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main Feature Guide References 5.2.2 SIP (Session Initiation Protocol) Extension SIP Location Hold Time Min. Specifies the minimum length of time that the PBX holds information on the location of SIP Extensions. Value Range 10–3600 s Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property Feature Guide References...

  • Page 245

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main Setting parameters assigned to Remote SIP-MLT—NAT - CWMP Server IP Address Specifies the outside-facing IP address or host name of the PBX-side network gateway for remote connections. Value Range 1.0.0.0–223.255.255.255 (IP address), Max. 100 characters (host name) Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property Feature Guide References...

  • Page 246

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main Setting parameters assigned to Remote SIP-MLT—NAT - SIP-MLT Data Download Server (HTTP) Port No. Specifies the outside-facing HTTP port of the PBX-side network gateway for remote connections used for downloading data to KX-UT series SIP phones. Value Range 1–65535 Maintenance Console Location...

  • Page 247

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main Setting parameters assigned to Remote SIP-MLT—NAT - SIP Proxy Server Port Specifies the outside-facing port of the network gateway connected to the SIP proxy server. Value Range 1–65535 Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property Feature Guide References 5.2.2.3 Simple Remote Connection Setting parameters assigned to Remote SIP-MLT—NAT - NTP Server IP Address...

  • Page 248

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main Value Range Register, Blank UDP, None Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property Feature Guide References 5.2.2.3 Simple Remote Connection Setting parameters assigned to Remote SIP-MLT—NAT - Keep Alive Packet Sending Interval Time (s) Specifies the time interval between transmissions of the Keep Alive packet.

  • Page 249

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main Setting parameters for Networking Survivability, assigned to Remote SIP-MLT—NAT - CWMP Server IP Address Specifies the outside-facing IP address or host name of the PBX-side network gateway for remote connections that is used when the gateway specified in Setting parameters assigned to Remote SIP-MLT is not available. Value Range 1.0.0.0–223.255.255.255 (IP address), Max.

  • Page 250: Echo Cancellation

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main Control Condition of Remote SIP-MLT—PERIODIC Ability Specifies whether alive monitoring is performed for connected remote extensions. Value Range Enable, Disable Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property Feature Guide References 5.2.2.3 Simple Remote Connection Control Condition of Remote SIP-MLT—PERIODIC Packet Sending Interval Time Specifies the polling interval for alive monitoring when PERIODIC Ability is set to "Enable".

  • Page 251

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property DSP Digital Gain (Up) Specifies the DSP Digital Gain for the up voice path. Value Range -14–6 dB Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property EC Gain Specifies the Echo Canceller Gain.

  • Page 252

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main DSP Digital Gain (Up) on V-SIPEXT side for conference Specifies the DSP Digital Gain for the up voice path for conference calls using an extension of a V-SIPEXT card. Value Range -14–6 dB Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property DSP Digital Gain (Up) on V-UTEXT side for conference Specifies the DSP Digital Gain for the up voice path for conference calls using an extension of a V-UTEXT...

  • Page 253

    9.5.1 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property DSP Digital Gain (Down) on TDM side for conference Specifies the DSP Digital Gain for the down voice path for conferencing using TDM circuit mode communication. Value Range -14–6 dB Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property...

  • Page 254: Pbx Configuration—[1-1] Configuration—slot—site Property—fax Card

    9.5.2 PBX Configuration—[1-1] Configuration—Slot—Site Property—FAX Card 9.5.2 PBX Configuration—[1-1] Configuration—Slot—Site Property—FAX Card Information and settings for the FAX Card for the PBX site can be confirmed and specified. Status Indicates if a FAX Card is installed in the PBX (reference only). Value Range Installed, None Maintenance Console Location...

  • Page 255: Pbx Configuration—[1-1] Configuration—slot—site Property—nsvm

    9.5.3 PBX Configuration—[1-1] Configuration—Slot—Site Property—NSVM 9.5.3 PBX Configuration—[1-1] Configuration—Slot—Site Property—NSVM Settings related to audio quality and sound detection for the PBX site can be specified. Echo Cancellation Ability Specifies the echo canceller ability time. Value Range OFF, 64 ms, 128 ms Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property DSP Digital Gain (Down)

  • Page 256

    9.5.3 PBX Configuration—[1-1] Configuration—Slot—Site Property—NSVM NLP Setting Specifies the NLP (Non-Linear Processor) setting to control echo sound quality. Value Range Disable, Weak, Normal, Strong Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property FAX Detection Ability Enables the use of the FAX Detection Ability feature. Since fax signals using a codec other than G.711 cannot be received accurately at the destination, this feature automatically switches the codec to G.711 to enable end-to-end fax signal relay over the network.

  • Page 257

    9.5.3 PBX Configuration—[1-1] Configuration—Slot—Site Property—NSVM Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property CNG Signal Fixation Detection Pattern Specifies the CNG signal pattern to be detected before the PBX proceeds the fax operation. Value Range OFF, ON Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property Maximum Silence Time Specifies the length of time of silence that the PBX will detect as the end of a call.

  • Page 258

    9.5.3 PBX Configuration—[1-1] Configuration—Slot—Site Property—NSVM Value Range 1000–60000 (ms) Maintenance Console Location 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property PC Programming Manual...

  • Page 259: Pbx Configuration—[1-1] Configuration—slot—um Card Property

    9.6 PBX Configuration—[1-1] Configuration—Slot—UM Card Property 9.6 PBX Configuration—[1-1] Configuration—Slot—UM Card Property The properties of the Unified Messaging (UM) system can be specified. Main Echo Cancellation Ability Specifies the echo canceller ability time. Value Range OFF, 64 ms, 128 ms Maintenance Console Location 9.6 PBX Configuration—[1-1] Configuration—Slot—UM Card Property DSP Digital Gain (Down)

  • Page 260

    9.6 PBX Configuration—[1-1] Configuration—Slot—UM Card Property NLP Setting Specifies the NLP (Non-Linear Processor) setting to control echo sound quality. Value Range Disable, Weak, Normal, Strong Maintenance Console Location 9.6 PBX Configuration—[1-1] Configuration—Slot—UM Card Property FAX Detection Ability Enables the use of the FAX Detection Ability feature. Since fax signals using a codec other than G.711 cannot be received accurately at the destination, this feature automatically switches the codec to G.711 to enable end-to-end fax signal relay over the network.

  • Page 261

    9.6 PBX Configuration—[1-1] Configuration—Slot—UM Card Property Maintenance Console Location 9.6 PBX Configuration—[1-1] Configuration—Slot—UM Card Property CNG Signal Fixation Detection Pattern Specifies whether or not the Unified Messaging system will respond to CNG signals. Value Range OFF, ON Maintenance Console Location 9.6 PBX Configuration—[1-1] Configuration—Slot—UM Card Property PC Programming Manual...

  • Page 262: Pbx Configuration—[1-1] Configuration—slot—um Port Property

    9.7 PBX Configuration—[1-1] Configuration—Slot—UM Port Property 9.7 PBX Configuration—[1-1] Configuration—Slot—UM Port Property The properties of the Unified Messaging (UM) system’s ports can be specified. Main The Port for each item is displayed for your reference. For details, see Common Programming Reference Items in 9.1 PBX Configuration—[1-1] Configuration—Slot Extension Number Specifies the extension number of the port.

  • Page 263: Pbx Configuration—[1-1] Configuration—slot—port Property—port Type View

    9.8 PBX Configuration—[1-1] Configuration—Slot—Port Property—Port Type View 9.8 PBX Configuration—[1-1] Configuration—Slot—Port Property—Port Type View Displays the number of connected telephones, devices, and Cell Stations (CSs). This screen can be accessed from the Port Property screen of any extension cards in use in the PBX system, including extension cards of legacy gateways.

  • Page 264: Pbx Configuration—[1-1] Configuration—slot—v-sipgw—shelf Property

    9.9 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Shelf Property 9.9 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Shelf Property Common settings for all of the V-SIPGW cards installed in the Virtual Shelf can be programmed. Icon Description In this section, the following icons show the different parameter type. Icon Description for Parameter Type Manual programming is compulsory under certain conditions.

  • Page 265

    9.9 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Shelf Property Maintenance Console Location 9.9 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Shelf Property NAT - Keep Alive Packet Sending Ability Specifies whether to send Keep Alive packets in order to maintain the NAT binding information. This setting may be compulsory depending on the network conditions. Value Range Disable, Enable Maintenance Console Location...

  • Page 266

    9.9 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Shelf Property STUN Ability Specifies whether to open a protocol port of the STUN server to enable STUN feature. Value Range Disable, Enable Maintenance Console Location 9.9 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Shelf Property STUN Client Port Number Specifies the port number of the PBX used for communications with the STUN server. Value Range 1–65535 Maintenance Console Location...

  • Page 267

    9.9 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Shelf Property Maintenance Console Location 9.9 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Shelf Property SIP Called Party Number Search Mode Specifies the search mode for the notified SIP Called Party Number information. Value Range Mode 1: Searches SIP accounts only. Mode 2: Searches SIP accounts, then DDI/DID numbers. Searches the SIP trunks of the tenant of the search-matched DDI/DID number, in ascending order (Low ®...

  • Page 268

    9.9 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Shelf Property Maintenance Console Location 9.9 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Shelf Property SIP QoS Ability Specifies the type of value to be stored in the ToS field in the IP header. Value Range ToS, DSCP, HEX Maintenance Console Location 9.9 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Shelf Property SIP QoS-ToS Priority Specifies the priority level in the ToS field when "ToS"...

  • Page 269

    9.9 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Shelf Property SIP T2 Specifies the retransmission interval time for INVITE responses and non-INVITE requests. Value Range 40–255 ´ 100 ms Maintenance Console Location 9.9 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Shelf Property PC Programming Manual...

  • Page 270: Pbx Configuration—[1-1] Configuration—slot—v-sipgw—card Property

    9.10 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Card Property 9.10 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Card Property Common card settings for all of the V-SIPGW cards installed in the Virtual Shelf can be programmed. DNS SRV Record Resolve Ability Specifies whether to request that the DNS server translates domain names into IP addresses using the DNS SRV record.

  • Page 271: Pbx Configuration—[1-1] Configuration—slot—v-sipgw—port Property

    9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property 9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Programming Port Properties Some of the parameters can be automatically programmed by selecting the desired SIP provider for each virtual SIP gateway port. Icon Description In this section, the following icons show the different parameter type. Icon Description for Parameter Type Programmed automatically by selecting the desired SIP provider in Select Provider.

  • Page 272

    9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Ensure that the Trunk Adaptor is connected to the network and a power supply, and that all ports to be set are OUS. Click Trunk Adaptor. The Trunk Adaptor List screen is displayed. Enter a name (20 characters or less) for the Trunk Adaptor in Trunk Adaptor Name. Enter the Trunk Adaptor’s IP address in Trunk Adaptor IP Address.

  • Page 273

    9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Value Range SIP Provider, Trunk Adaptor Maintenance Console Location 9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Feature Guide References 5.3.2 Trunk Adaptor Connection Trunk Property Specifies the networking type of each SIP trunk. Note Connection Attribute is set to "Trunk Adaptor" for the port, only "Public" will be available for this setting. Value Range Public, VPN Maintenance Console Location...

  • Page 274

    9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Value Range Max. 20 characters Maintenance Console Location 9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property SIP Server Name Specifies the domain name of the SIP proxy server. Note Specify the domain name of the outbound proxy server, if provided by the SIP provider. Value Range Max.

  • Page 275: Sip Service Domain

    9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Maintenance Console Location 9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property SIP Server Port Number Specifies the port number of the SIP proxy server. Value Range 1–65535 Maintenance Console Location 9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property SIP Service Domain Specifies the domain name provided by the SIP provider.

  • Page 276

    9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property PC Programming Manual References 1.2.3.1 One-look Networking Survivability Feature Guide References 4.2.3 One-look Networking Survivability P2P Group Specifies the peer-to-peer group of the IP-Trunk. Value Range 1–256 Maintenance Console Location 9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property PC Programming Manual References 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main—...

  • Page 277

    9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Connection Indicates the port status. To change the status of the port, click the desired cell in the column, and then select INS or OUS for the port. This option is only available in On-line mode. Value Range INS: The port is in service.

  • Page 278

    9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Connection Indicates the port status. To change the status of the port, click the desired cell in the column, and then select INS or OUS for the port. This option is only available in On-line mode. Value Range INS: The port is in service.

  • Page 279: Registrar Server Port Number

    9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Value Range Max. 100 characters Maintenance Console Location 9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Installation Manual References 8.6.5 DNS Client Registrar Server IP Address Specifies the IP address of the SIP server. This setting is compulsory when a register IP address is provided. Value Range 1.0.0.0–223.255.255.255 Maintenance Console Location...

  • Page 280

    9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Value Range 0-65535 s Maintenance Console Location 9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property The Shelf, Slot, and Port for each item are displayed for your reference. For details, see Common Programming Reference Items in 9.1 PBX Configuration—[1-1] Configuration—Slot. Connection Indicates the port status.

  • Page 281

    9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Maintenance Console Location 9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property STUN Server Port Number Specifies the port number of the STUN server. Value Range 1–65535 Maintenance Console Location 9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Option The Shelf, Slot, and Port for each item are displayed for your reference. For details, see Common Programming Reference Items in 9.1 PBX Configuration—[1-1] Configuration—Slot.

  • Page 282

    9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Value Range 90–3600 s Maintenance Console Location 9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Session Refresh Method Specifies the type of request that the PBX sends to periodically refresh SIP sessions. Value Range UPDATE, re-INVITE Maintenance Console Location 9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Session Incoming Refresher Request Specifies the type of method used for establishing the session interval.

  • Page 283

    9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Proxy-Require Option Specifies option tags in a Proxy-Require header field so that the SIP server is notified that the client is behind a router with NAT enabled and firewall. Value Range Max. 100 characters Maintenance Console Location 9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Failover Timer(INVITE) Specifies the amount of time to wait for a response for an INVITE request.

  • Page 284

    9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Value Range INS: The port is in service. OUS: The port is out of service. Fault: The port is not communicating with the network. Maintenance Console Location 9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Header Type Specifies the header of the SIP message in which the caller information is stored. Value Range From Header, P-Preferred-Identity Header Maintenance Console Location...

  • Page 285

    9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Maintenance Console Location 9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property P-Preferred-Identity Header—SIP-URI Specifies the complete SIP-URI address of the P-Preferred-Identity header. The configuration in P-Preferred-Identity Header—User Part will be invalid if this parameter is set. Value Range Max.

  • Page 286

    9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Anonymous format in "From" header Specifies the format of the "From" header when not sending caller ID. Value Range Display name and SIP-URI, Display name only Note If "Display name and SIP-URI" is selected, the display name part and the SIP-URI of the "From" header will be displayed as "Anonymous".

  • Page 287

    9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Maintenance Console Location 9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Number Format Specifies the format of an incoming call number. Value Range International, +International, National Maintenance Console Location 9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Type Specifies the header of the incoming SIP message in which the dialled number is stored. Value Range Request-URI, To header Maintenance Console Location...

  • Page 288

    9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Value Range Max. 7 digits (consisting of 0–9, *, and #) Maintenance Console Location 9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Voice/FAX The Shelf, Slot, and Port for each item are displayed for your reference. For details, see Common Programming Reference Items in 9.1 PBX Configuration—[1-1] Configuration—Slot.

  • Page 289

    9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Packet Sampling Time (G.711Mu) Specifies the time interval between measurements (samples) of sound data during a conversation. The smaller this number, the higher the quality of the transmitted sound. Value Range 20 ms, 30 ms, 40 ms, 50 ms, 60 ms Maintenance Console Location 9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Packet Sampling Time (G.729A)

  • Page 290

    9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property FAX Sending Method Specifies the method of transporting the fax signal. Value Range G.711 Inband, T.38 Maintenance Console Location 9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Maximum Bit Rate Specifies the maximum bit rate of the fax signal. Value Range No Speed Limit, 2400 bps, 4800 bps, 7200 bps, 9600 bps, 12000 bps, 14400 bps Maintenance Console Location...

  • Page 291

    9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Value Range 96–127 Maintenance Console Location 9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property RTP/RTCP The Shelf, Slot, and Port for each item are displayed for your reference. For details, see Common Programming Reference Items in 9.1 PBX Configuration—[1-1] Configuration—Slot. Connection Indicates the port status.

  • Page 292

    9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property RTP QoS-ToS Type Specifies the ToS type in the ToS field. Value Range Normal, Monetary Cost, Reliability, Throughput, Delay Maintenance Console Location 9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property RTP QoS-DSCP Specifies the value in the ToS field by a DSCP for DiffServ. Value Range 0–63 Maintenance Console Location...

  • Page 293

    9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Maintenance Console Location 9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Keep Alive Timer Specifies the length of time to send Keep Alive packets for the connection. Specifying "0 s" will disable the sending of Keep Alive packets. Value Range 0 s, 10 s, 20 s, 30 s, 40 s, 50 s, 60 s Maintenance Console Location...

  • Page 294

    9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Value Range Disable, Enable Maintenance Console Location 9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property T38 FAX UDPTL Redundancy count for T.30 messages Specifies the redundancy count for T.30 messages when using the T.38 protocol. Value Range 0–7 Maintenance Console Location 9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property T38 FAX UDPTL Redundancy count for data...

  • Page 295

    9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property T.38 FAX NAT Traversal Specifies the NAT Traversal packet type when sending or receiving faxes using the T.38 protocol. Value Range Disable, Blank UDP Maintenance Console Location 9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property T.38 Option The Shelf, Slot, and Port for each item are displayed for your reference. For details, see Common Programming Reference Items in 9.1 PBX Configuration—[1-1] Configuration—Slot.

  • Page 296

    9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property T38 FAX QoS-ToS Type Specifies the ToS type in the ToS field when using the T.38 protocol. Value Range Normal, Monetary Cost, Reliability, Throughput, Delay Maintenance Console Location 9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property T38 FAX QoS-DSCP Specifies the value in the ToS field by a DSCP for DiffServ when using the T.38 protocol.

  • Page 297

    9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Maintenance Console Location 9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Echo Canceller Ability Specifies the echo canceller ability time. Value Range OFF, 64 ms, 128 ms Maintenance Console Location 9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property DSP Digital Gain (Down) Specifies the DSP Digital Gain for the down voice path.

  • Page 298

    9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Value Range Disable, Weak, Normal, Strong Maintenance Console Location 9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Supplementary Service The Shelf, Slot, and Port for each item are displayed for your reference. For details, see Common Programming Reference Items in 9.1 PBX Configuration—[1-1] Configuration—Slot. Connection Indicates the port status.

  • Page 299

    9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Maintenance Console Location 9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property CNIP (Send) Specifies whether to send the caller’s name to be displayed on the called party’s telephone when making a SIP trunk call. Value Range Yes, No Maintenance Console Location 9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property CNIP (Receive)

  • Page 300

    9.11 PBX Configuration—[1-1] Configuration—Slot—V-SIPGW—Port Property Advanced The Shelf, Slot, and Port for each item are displayed for your reference. For details, see Common Programming Reference Items in 9.1 PBX Configuration—[1-1] Configuration—Slot. Connection Indicates the port status. To change the status of the port, click the desired cell in the column, and then select INS or OUS for the port.

  • Page 301: Pbx Configuration—[1-1] Configuration—slot—v-ipgw16—shelf Property

    9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property 9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property Common settings for all of the V-IPGW cards installed in the Virtual Shelf can be programmed. Main Gatekeeper Available Specifies whether to use a gatekeeper. This setting can only be changed when all V-IPGW cards are set to OUS.

  • Page 302

    9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property RTP QoS-ToS Priority Specifies the priority level in the ToS field. Value Range 0–7 Maintenance Console Location 9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property RTP QoS-ToS Type Specifies the ToS type in the ToS field. Value Range Normal, Monetary Cost, Reliability, Throughput, Delay Maintenance Console Location 9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property...

  • Page 303

    9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property Maintenance Console Location 9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property T38 FAX QoS-ToS Priority Specifies the priority level in the ToS field when using the T.38 protocol. Value Range 0–7 Maintenance Console Location 9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property T38 FAX QoS-ToS Type Specifies the ToS type in the ToS field when using the T.38 protocol.

  • Page 304

    9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property Echo Canceller Ability Specifies the echo canceller ability time. Value Range OFF, 64 ms, 128 ms Maintenance Console Location 9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property Feature Guide References 5.2.1 IP Proprietary Telephone (IP-PT) DSP Digital Gain (Down) Specifies the DSP Digital Gain for the down voice path.

  • Page 305

    9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property Maintenance Console Location 9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property Feature Guide References 5.2.1 IP Proprietary Telephone (IP-PT) NLP Setting Specifies the NLP (Non-Linear Processor) setting to control echo sound quality. Value Range Disable, Weak, Normal, Strong Maintenance Console Location 9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property Feature Guide References...

  • Page 306: Outgoing Call, Incoming Call

    9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property Trunk Property Indicates the networking type of each trunk. Value Range Public, Private, VPN Maintenance Console Location 9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property Outgoing Call First-digit Timer (T302-1) Specifies the length of time within which the first digit of a dial number must be dialled after seizing a virtual IP trunk.

  • Page 307

    9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property Value Range Disable, Enable Maintenance Console Location 9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property Voice Codec Priority 1st Specifies the highest priority codec type. For fax communications, it is necessary to specify G.711A or G. 711Mu for this parameter. Value Range G.711A, G.711Mu, G.729A Maintenance Console Location...

  • Page 308

    9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property Maintenance Console Location 9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property Packet Sampling Time for G.711Mu Specifies the time interval between measurements (samples) of sound data during a conversation. The smaller this number, the higher the quality of the transmitted sound. Value Range 20 ms, 30 ms, 40 ms, 50 ms, 60 ms Maintenance Console Location...

  • Page 309

    9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property Maintenance Console Location 9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property Maximum Bit Rate Specifies the maximum bit rate of the fax signal. Value Range No Speed Limit, 2400 bps, 4800 bps, 7200 bps, 9600 bps, 12000 bps, 14400 bps Maintenance Console Location 9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property DTMF...

  • Page 310

    9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property Value Range Disable, Enable Maintenance Console Location 9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property T38 FAX UDPTL Redundancy count for T.30 messages Specifies the redundancy count for T.30 messages when using the T.38 protocol. Value Range 0–7 Maintenance Console Location 9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property T38 FAX UDPTL Redundancy count for data...

  • Page 311

    9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property Maintenance Console Location 9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property T302 Specifies the maximum time allowed between each digit on an incoming call. Applies to overlap receiving. Value Range 0–600 ´ 100 ms Maintenance Console Location 9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property T303 Specifies the maximum time that the PBX waits for a reply after sending the SETUP (call setting) message.

  • Page 312

    9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property Value Range 0–600 ´ 100 ms Maintenance Console Location 9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property T309 Specifies the length of time after which the PBX tries to disconnect the data link, before disconnecting the call. Value Range 0–3000 ´...

  • Page 313

    9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property T318 Specifies the maximum time that the PBX waits for a reply after sending the Resume message. Value Range 0–600 ´ 100 ms Maintenance Console Location 9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property T319 Specifies the maximum time that the PBX waits for a reply after sending the Suspend message. Value Range 0–600 ´...

  • Page 314

    9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property Maintenance Console Location 9.12 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property PC Programming Manual...

  • Page 315: Pbx Configuration—[1-1] Configuration—slot—v-ipgw16—shelf Property—gk Settings

    9.12.1 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property—GK Settings 9.12.1 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property—GK Settings Gatekeeper registration information can be programmed. Destination Number Specifies a telephone number to register with a gatekeeper. Value Range Max. 30 digits (consisting of 0–9) Maintenance Console Location 9.12.1 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Shelf Property—GK Settings Device Name Specifies the name of the device for programming reference.

  • Page 316: Pbx Configuration—[1-1] Configuration—slot—shelf Property - Virtual Ip Gateway—hunt Pattern

    9.12.2 PBX Configuration—[1-1] Configuration—Slot—Shelf Property - Virtual IP Gateway—Hunt Pattern 9.12.2 PBX Configuration—[1-1] Configuration—Slot—Shelf Property - Virtual IP Gateway—Hunt Pattern The related settings of hunt patterns can be programmed. The hunt pattern determines how to route incoming calls through virtual IP trunks to the PBX. A maximum of 32 hunt patterns can be programmed.

  • Page 317: Pbx Configuration—[1-1] Configuration—slot—v-ipgw16—port Property

    9.13 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Port Property 9.13 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Port Property Various settings can be programmed for each virtual IP Gateway port. The Site, Shelf, Slot, and Port for each item are displayed for your reference. For details, see Common Programming Reference Items in 9.1 PBX Configuration—[1-1] Configuration—Slot. Trunk Adaptor To connect to a Trunk Adaptor, follow the steps below.

  • Page 318: Call Distribution Port Group

    9.13 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Port Property Call Distribution Port Group Specifies a call distribution port group to which incoming trunk calls are directed through the virtual VoIP gateway port. Value Range 1–48 Maintenance Console Location 9.13 PBX Configuration—[1-1] Configuration—Slot—V-IPGW16—Port Property Feature Guide References 4.3.2.3 Call Distribution Port Group PC Programming Manual...

  • Page 319: Pbx Configuration—[1-1] Configuration—slot—v-ipext32—card Property

    The properties of the V-IPEXT card can be specified. Signalling (PTAP) UDP Port No. (Server) Specifies the UDP port used by the V-IPEXT card to transmit and receive PTAP (Panasonic Telephony Administration Protocol) data. This must be changed if another network application is using the same port.

  • Page 320

    5.2.1 IP Proprietary Telephone (IP-PT) First Resending Time (PTAP) Specifies the length of time that the PBX waits before starting to resend PTAP (Panasonic Telephony Administration Protocol) data. To change the value displayed here, click Common Settings and set the desired value.

  • Page 321

    9.14 PBX Configuration—[1-1] Configuration—Slot—V-IPEXT32—Card Property Maintenance Console Location 9.14 PBX Configuration—[1-1] Configuration—Slot—V-IPEXT32—Card Property Feature Guide References 5.2.1 IP Proprietary Telephone (IP-PT) First Resending Time (MGCP) Specifies the length of time that the PBX waits before starting to resend MGCP (Media Gateway Control Protocol) data.

  • Page 322

    9.14 PBX Configuration—[1-1] Configuration—Slot—V-IPEXT32—Card Property Maintenance Console Location 9.14 PBX Configuration—[1-1] Configuration—Slot—V-IPEXT32—Card Property Feature Guide References 5.2.1 IP Proprietary Telephone (IP-PT) DSP Digital Gain (Down) Specifies the DSP Digital Gain for the down voice path. Note For KX-NT500 series phones, in place of this setting, the setting for DSP Digital Gain (Down) in 9.20 PBX Configuration—[1-1] Configuration—Slot—V-UTEXT32—Card Property—Main is applied.

  • Page 323

    9.14 PBX Configuration—[1-1] Configuration—Slot—V-IPEXT32—Card Property Value Range -14–6 dB Maintenance Console Location 9.14 PBX Configuration—[1-1] Configuration—Slot—V-IPEXT32—Card Property Feature Guide References 5.2.1 IP Proprietary Telephone (IP-PT) NLP Setting Specifies the NLP (Non-Linear Processor) setting to control echo sound quality. Note For KX-NT500 series phones, in place of this setting, the setting for NLP Setting in 9.20 PBX Configuration—[1-1] Configuration—Slot—V-UTEXT32—Card Property—Main is applied.

  • Page 324: Pbx Configuration—[1-1] Configuration—slot—v-ipext32—port Property

    9.15 PBX Configuration—[1-1] Configuration—Slot—V-IPEXT32—Port Property 9.15 PBX Configuration—[1-1] Configuration—Slot—V-IPEXT32—Port Property Various settings can be programmed for each virtual IP extension port. IP-PT Registration and De-registration An IP-PT must be registered to the PBX by programming the PBX and IP-PT before it can be used. Programming instructions for the PBX are given below.

  • Page 325

    9.15 PBX Configuration—[1-1] Configuration—Slot—V-IPEXT32—Port Property Click Forced De-registration. A dialogue box will appear. Registered extension numbers and names are displayed on the left. Highlight numbers and names and click the right arrow to select them for forced de-registration. Click Next. A dialogue box will appear.

  • Page 326

    9.15 PBX Configuration—[1-1] Configuration—Slot—V-IPEXT32—Port Property Connection Indicates the port status. To change the status of the port, click the desired cell in the column, and then select INS or OUS for the port. This option is only available in On-line mode. Value Range INS: The port is in service.

  • Page 327

    9.15 PBX Configuration—[1-1] Configuration—Slot—V-IPEXT32—Port Property Current IP Address Indicates the current IP address of the IP-PT (reference only). Value Range 1.0.0.0–223.255.255.255 Maintenance Console Location 9.15 PBX Configuration—[1-1] Configuration—Slot—V-IPEXT32—Port Property Feature Guide References 5.2.1 IP Proprietary Telephone (IP-PT) Program Ver. Indicates the programme software file version of the IP-PT (reference only). Value Range Version number Maintenance Console Location...

  • Page 328

    9.15 PBX Configuration—[1-1] Configuration—Slot—V-IPEXT32—Port Property Value Range P2P Group Name Maintenance Console Location 9.15 PBX Configuration—[1-1] Configuration—Slot—V-IPEXT32—Port Property PC Programming Manual References 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main— P2P Group Feature Guide References 5.2.3 Peer-to-Peer (P2P) Connection Option The Shelf, Slot, and Port for each item are displayed for your reference. For details, see Common Programming Reference Items in 9.1 PBX Configuration—[1-1] Configuration—Slot.

  • Page 329

    9.15 PBX Configuration—[1-1] Configuration—Slot—V-IPEXT32—Port Property Connection Indicates the port status. To change the status of the port, click the desired cell in the column, and then select INS or OUS for the port. This option is only available in On-line mode. Value Range INS: The port is in service.

  • Page 330: Ringing Tone

    9.15 PBX Configuration—[1-1] Configuration—Slot—V-IPEXT32—Port Property Ringing Tone Selects the dual-tone switching pattern of the ring tone for incoming calls. Value Range A: 64 ms (697 Hz), 64 ms (852 Hz) B: 32 ms (697 Hz), 32 ms (852 Hz) C: 128 ms (697 Hz), 128 ms (852 Hz) D: 32 ms (697 Hz), 96 ms (852 Hz) Maintenance Console Location 9.15 PBX Configuration—[1-1] Configuration—Slot—V-IPEXT32—Port Property...

  • Page 331

    9.15 PBX Configuration—[1-1] Configuration—Slot—V-IPEXT32—Port Property Packet Sampling Time (G.729A) Specifies the time interval between measurements (samples) of sound data during a conversation. The smaller this number, the higher the quality of the transmitted sound. Value Range 20 ms, 30 ms, 40 ms, 60 ms Maintenance Console Location 9.15 PBX Configuration—[1-1] Configuration—Slot—V-IPEXT32—Port Property Feature Guide References...

  • Page 332

    9.15 PBX Configuration—[1-1] Configuration—Slot—V-IPEXT32—Port Property Feature Guide References 5.2.1 IP Proprietary Telephone (IP-PT) Extension Name Specifies the extension name of the port. Note This setting cannot be changed on this screen until the port has been assigned as a secondary port using the Set Secondary command.

  • Page 333

    9.15 PBX Configuration—[1-1] Configuration—Slot—V-IPEXT32—Port Property Feature Guide References 5.2.1 IP Proprietary Telephone (IP-PT) Payload Type Specifies the payload type for DTMF tones using RFC2833. Programming this parameter is only necessary if DTMF is set to Outband (RFC2833). Value Range 96–127 Maintenance Console Location 9.15 PBX Configuration—[1-1] Configuration—Slot—V-IPEXT32—Port Property Feature Guide References...

  • Page 334

    9.15 PBX Configuration—[1-1] Configuration—Slot—V-IPEXT32—Port Property Removing Secondary Port Settings Follow the steps below to remove secondary port settings for IP extensions. Click Remove Secondary. A dialogue box will appear. Primary ports of extensions that have secondary ports assigned are displayed on the left. Select the extensions whose secondary setting you want to remove, and then click the right arrow.

  • Page 335

    9.15 PBX Configuration—[1-1] Configuration—Slot—V-IPEXT32—Port Property This option is only available in On-line mode. Value Range INS: The port is in service. OUS: The port is out of service. Fault: The port is not communicating with the network. Maintenance Console Location 9.15 PBX Configuration—[1-1] Configuration—Slot—V-IPEXT32—Port Property Feature Guide References 5.2.1 IP Proprietary Telephone (IP-PT)

  • Page 336

    9.15 PBX Configuration—[1-1] Configuration—Slot—V-IPEXT32—Port Property Pair Slot Indicates the number of the virtual card slot in the site where the assigned secondary port is located (reference only). Note A value will be displayed here only after the Set Secondary command has been executed (see above). Value Range Virtual slot number Maintenance Console Location...

  • Page 337

    9.15 PBX Configuration—[1-1] Configuration—Slot—V-IPEXT32—Port Property Maintenance Console Location 9.15 PBX Configuration—[1-1] Configuration—Slot—V-IPEXT32—Port Property Feature Guide References 5.2.1 IP Proprietary Telephone (IP-PT) Extension Name Specifies the extension name of the port. Note This setting cannot be changed on this screen until the port has been assigned as a secondary port using the Set Secondary command.

  • Page 338

    9.15 PBX Configuration—[1-1] Configuration—Slot—V-IPEXT32—Port Property Maintenance Console Location 9.15 PBX Configuration—[1-1] Configuration—Slot—V-IPEXT32—Port Property Feature Guide References 5.2.1 IP Proprietary Telephone (IP-PT) PC Programming Manual...

  • Page 339: Pbx Configuration—[1-1] Configuration—slot—v-sipext32—card Property

    9.16 PBX Configuration—[1-1] Configuration—Slot—V-SIPEXT32—Card Property 9.16 PBX Configuration—[1-1] Configuration—Slot—V-SIPEXT32—Card Property The properties of the virtual SIP Extension card can be specified. To change the value displayed here, click Common Settings and set the desired value. Echo Canceller Ability Specifies the echo canceller ability time. Value Range OFF, 64 ms, 128 ms Maintenance Console Location...

  • Page 340

    9.16 PBX Configuration—[1-1] Configuration—Slot—V-SIPEXT32—Card Property EC Gain Specifies the Echo Canceller Gain. Value Range -14–6 dB Maintenance Console Location 9.16 PBX Configuration—[1-1] Configuration—Slot—V-SIPEXT32—Card Property Feature Guide References 5.2.2 SIP (Session Initiation Protocol) Extension NLP Setting Specifies the NLP (Non-Linear Processor) setting to control echo sound quality. Value Range Disable, Weak, Normal, Strong Maintenance Console Location...

  • Page 341: Pbx Configuration—[1-1] Configuration—slot—v-sipext32—port Property

    9.17 PBX Configuration—[1-1] Configuration—Slot—V-SIPEXT32—Port Property 9.17 PBX Configuration—[1-1] Configuration—Slot—V-SIPEXT32—Port Property Various settings can be programmed for each virtual SIP extension port. The Site, Shelf, Slot, and Port for each item are displayed for your reference. For details, see Common Programming Reference Items in 9.1 PBX Configuration—[1-1] Configuration—Slot. Main Extension Number Specifies the extension number of the port.

  • Page 342

    9.17 PBX Configuration—[1-1] Configuration—Slot—V-SIPEXT32—Port Property Fault: The port is not communicating with the network. Maintenance Console Location 9.17 PBX Configuration—[1-1] Configuration—Slot—V-SIPEXT32—Port Property Feature Guide References 5.2.2 SIP (Session Initiation Protocol) Extension Current IP Address Indicates the current IP address of the SIP Extension (reference only). Value Range 1.0.0.0–223.255.255.255 Maintenance Console Location...

  • Page 343

    9.17 PBX Configuration—[1-1] Configuration—Slot—V-SIPEXT32—Port Property Maintenance Console Location 9.17 PBX Configuration—[1-1] Configuration—Slot—V-SIPEXT32—Port Property PC Programming Manual References 9.5 PBX Configuration—[1-1] Configuration—Slot—Site Property—Main— P2P Group 11.10 PBX Configuration—[3-10] Group—P2P Group Feature Guide References 5.2.3 Peer-to-Peer (P2P) Connection MWI Method Selects the method of receiving Message Waiting Indications for SIP extensions. Value Range Standard, Unsolicited Note...

  • Page 344

    9.17 PBX Configuration—[1-1] Configuration—Slot—V-SIPEXT32—Port Property Password Specifies the password used for registering a SIP Extension to the PBX. While it is possible to enter a password manually for each SIP Extension, you can copy the value for Extension Number to Password by clicking the Copy to button.

  • Page 345

    9.17 PBX Configuration—[1-1] Configuration—Slot—V-SIPEXT32—Port Property Packet Sampling Time (G.711/G.722) Specifies the time interval between measurements (samples) of sound data during a conversation. The smaller this number, the higher the quality of the transmitted sound. Value Range 20 ms, 30 ms, 40 ms, 50 ms, 60 ms Maintenance Console Location 9.17 PBX Configuration—[1-1] Configuration—Slot—V-SIPEXT32—Port Property Feature Guide References...

  • Page 346

    9.17 PBX Configuration—[1-1] Configuration—Slot—V-SIPEXT32—Port Property Password Specifies the password used for registering a SIP Extension to the PBX. While it is possible to enter a password manually for each SIP Extension, you can copy the value for Extension Number to Password by clicking the Copy to button.

  • Page 347

    9.17 PBX Configuration—[1-1] Configuration—Slot—V-SIPEXT32—Port Property FAX/T.38 The Shelf, Slot, and Port for each item are displayed for your reference. For details, see Common Programming Reference Items in 9.1 PBX Configuration—[1-1] Configuration—Slot. Extension Number Specifies the extension number of the port. Value Range Max.

  • Page 348

    9.17 PBX Configuration—[1-1] Configuration—Slot—V-SIPEXT32—Port Property Feature Guide References 5.2.2 SIP (Session Initiation Protocol) Extension FAX Detection Ability Enables the use of the FAX Detection Ability feature. Value Range Disable, Enable Maintenance Console Location 9.17 PBX Configuration—[1-1] Configuration—Slot—V-SIPEXT32—Port Property Feature Guide References 5.2.2 SIP (Session Initiation Protocol) Extension FAX Sending Method Specifies the method of transporting the fax signal.

  • Page 349

    9.17 PBX Configuration—[1-1] Configuration—Slot—V-SIPEXT32—Port Property Value Range 272–512 Maintenance Console Location 9.17 PBX Configuration—[1-1] Configuration—Slot—V-SIPEXT32—Port Property Feature Guide References 5.2.2 SIP (Session Initiation Protocol) Extension T38 FAX UDPTL Error Correction – Redundancy Specifies whether to enable the redundancy feature when using the T.38 protocol. Value Range Disable, Enable Maintenance Console Location...

  • Page 350

    9.17 PBX Configuration—[1-1] Configuration—Slot—V-SIPEXT32—Port Property Feature Guide References 5.2.2 SIP (Session Initiation Protocol) Extension T38 FAX Rate Management Method Specifies the rate management method when using the T.38 protocol. Value Range Transferred TCF, Local TCF Maintenance Console Location 9.17 PBX Configuration—[1-1] Configuration—Slot—V-SIPEXT32—Port Property Feature Guide References 5.2.2 SIP (Session Initiation Protocol) Extension PC Programming Manual...

  • Page 351: Pbx Configuration—[1-1] Configuration—slot—v-ipcs4—card Property

    The properties of the V-IPCS card can be specified. Signalling (PTAP) UDP Port No. (Server) Specifies the UDP port used by the V-IPCS card to transmit and receive PTAP (Panasonic Telephony Administration Protocol) data. This must be changed if another network application is using the same port.

  • Page 352

    9.18 PBX Configuration—[1-1] Configuration—Slot—V-IPCS4—Card Property First Resending Time (PTAP) Specifies the length of time that the PBX waits before starting to resend PTAP (Panasonic Telephony Administration Protocol) data. To change the value displayed here, click Common Settings and set the desired value.

  • Page 353

    9.18 PBX Configuration—[1-1] Configuration—Slot—V-IPCS4—Card Property First Resending Time (MGCP) Specifies the length of time that the PBX waits before starting to resend MGCP (Media Gateway Control Protocol) data. To change the value displayed here, click Common Settings and set the desired value. Value Range 500 ´...

  • Page 354: Pbx Configuration—[1-1] Configuration—slot—v-ipcs4—port Property

    9.19 PBX Configuration—[1-1] Configuration—Slot—V-IPCS4—Port Property 9.19 PBX Configuration—[1-1] Configuration—Slot—V-IPCS4—Port Property Various settings can be programmed for each virtual IP-CS port. IP-CS Registration and De-registration An IP-CS must be registered to the PBX by programming the PBX and IP-CS before it can be used. Programming instructions for the PBX are given below.

  • Page 355

    9.19 PBX Configuration—[1-1] Configuration—Slot—V-IPCS4—Port Property Highlight IP-CSs and click the right arrow to select them for forced de-registration. Click Next. A dialogue box will appear. Click OK. A dialogue box will appear. Click Confirm. If the de-registration is successful, the dialogue box will show "Forced De-registration Succeed". Click Close.

  • Page 356

    9.19 PBX Configuration—[1-1] Configuration—Slot—V-IPCS4—Port Property Channel expansion Specifies whether to expand the number of channels for the IP-CS. This setting is available only for KX-NS0154 IP-CSs. This setting will be greyed out if the IP-CS’s port is not set to OUS, or a non-supported type of IP-CS (e.g., KX-NCP0158) is connected to the port.

  • Page 357

    9.19 PBX Configuration—[1-1] Configuration—Slot—V-IPCS4—Port Property Value Range None, 1–16 Maintenance Console Location 9.19 PBX Configuration—[1-1] Configuration—Slot—V-IPCS4—Port Property PC Programming Manual References 19.2.1 PBX Configuration—[11-2-1] Maintenance—CS Synchronisation—Air Synchronisation LAN Sync Group No. Specifies the LAN sync group number when using an IP-CS (KX-NS0154 only) in a LAN sync group. A maximum of 64 IP-CSs can be assigned to one group.

  • Page 358

    9.19 PBX Configuration—[1-1] Configuration—Slot—V-IPCS4—Port Property Maintenance Console Location 9.19 PBX Configuration—[1-1] Configuration—Slot—V-IPCS4—Port Property IP Codec Priority Specifies the codec used for compression and decompression of transmitted data. Value Range G.711, G.729A Maintenance Console Location 9.19 PBX Configuration—[1-1] Configuration—Slot—V-IPCS4—Port Property Packet Sampling Time (G.711) Specifies the time interval between measurements (samples) of sound data during a conversation.

  • Page 359

    9.19 PBX Configuration—[1-1] Configuration—Slot—V-IPCS4—Port Property Announce Mode Specifies if the IP-CS’s (KX-NS0154 only) built-in ANNOUNCE feature is enabled. An IP-CS (KX-NS0154 only) in a remote location with ANNOUNCE enabled can provide the PBX’s IP Address information to other terminals in the remote location in place of manually programming the PBX’s IP address at each terminal. Value Range Disable, Enable Maintenance Console Location...

  • Page 360

    9.19 PBX Configuration—[1-1] Configuration—Slot—V-IPCS4—Port Property CS Name Specifies the IP-CS (KX-NS0154 only) name of the port. Note This setting cannot be changed on this screen until the port has been assigned as a secondary port using the Set Secondary command. See Setting Secondary Ports above for details. Value Range Max.

  • Page 361

    9.19 PBX Configuration—[1-1] Configuration—Slot—V-IPCS4—Port Property Note A value will be displayed here only after the Set Secondary command has been executed (see above). Value Range Site number and name Maintenance Console Location 9.19 PBX Configuration—[1-1] Configuration—Slot—V-IPCS4—Port Property Feature Guide References 4.2.3.2 Automatic Rerouting to Secondary PBX Pair Slot Indicates the slot number of the assigned secondary port (reference only).
