Quick Reference Guide
Communication Assistant Server
KX-NCP/KX-TDE Series
Model No.

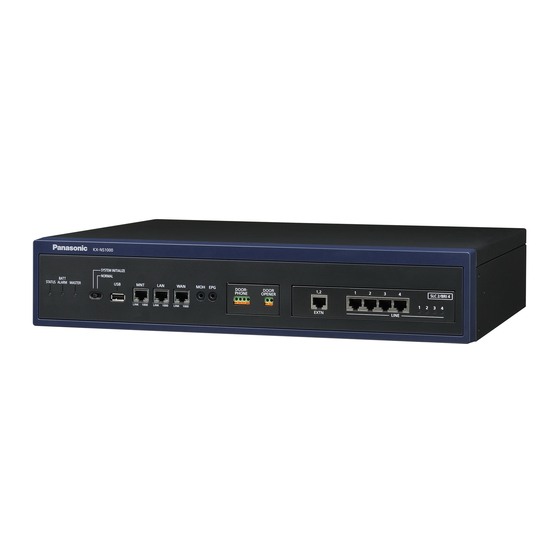

KX-NS1000
Thank you for purchasing this Panasonic product.
Please read this manual carefully before using this product and save this manual for future use.
Communication Assistant: Version 4.0 or later
In this manual, the suffix of each model number is omitted (e.g., KX-NCP500NE).

Advertisement

   Summary of Contents for Panasonic KX-NS1000

  • Page 1

    KX-NCP/KX-TDE Series Model No. KX-NS1000 Thank you for purchasing this Panasonic product. Please read this manual carefully before using this product and save this manual for future use. Communication Assistant: Version 4.0 or later In this manual, the suffix of each model number is omitted (e.g., KX-NCP500NE).

  • Page 2

    Introduction Introduction Communication Assistant (CA) Server is a program to manage users and the operation of CA Client. CA Web Manager is a Web client used to control CA Server settings from any computer on the PBX’s network. About the Quick Reference Guide This Quick Reference Guide is designed to serve as an overview of the features, setup and installation of CA Server and CA Web Manager.

  • Page 3

    Introduction • Intel, Intel Core, Celeron and Pentium are trademarks of Intel Corporation in the U.S. and other countries. • Mozilla and Firefox are registered trademarks of the Mozilla Foundation. • All other trademarks identified herein are the property of their respective owners. •...

  • Page 4: Table Of Contents

    Table of Contents Table of Contents 1 Specifications ...................5 Overview ..........................5 CA Web Manager Features ....................8 1.2.1 Integrating Microsoft Exchange with CA Server .............11 2 System Connection Diagram ..............13 3 System Requirements ................14 4 Starting CA Server .................16 Installing CA Server ......................16 Starting CA Web Manager ....................20 Uninstalling CA Server ....................22 5 Open Source Software Licences ............23...

  • Page 5: Specifications

    Connecting CA Server to a One-look network of KX-NS1000 PBXs A One-look network is where multiple KX-NS1000 PBXs in multiple locations are connected and managed over an IP network. One PBX serves as the Master unit, which controls one or more PBXs, known as Slave...

  • Page 6

    PBX in real-time, and make or receive calls with them. CA Client users can also transfer calls or initiate a chat. A network activation key is required to use these network features. Example network with multiple PBXs IP Network (One-look network) KX-NS1000 Master Unit CA Server CA Server CA Server...

  • Page 7

    1.1 Overview One computer running CA Server can connect to up to 4 PBXs at the same time. In the example above, PBX 2 and PBX 3 are both connected to one computer running CA Server. A One-look network requires only a single connection when connecting to CA Server.

  • Page 8: Ca Web Manager Features

    1.2 CA Web Manager Features 1.2 CA Web Manager Features All CA Server functions are controlled through CA Web Manager, a client program that can be accessed by a networked computer’s Web browser once CA Server is installed. For information on how to access CA Web Manager, see 4.2 Starting CA Web Manager.

  • Page 9

    1.2 CA Web Manager Features • Dial Modification You can set dial modification for dialled phone numbers, such as adding to or removing dialled digits. • LDAP Setting You can set the server, account name and password of an LDAP directory service. •...

  • Page 10

    1.2 CA Web Manager Features If the CA Web Manager administrator password becomes locked, it can by reset from the CA Server, through the CA Server options menu. Right-click on the CA Server icon in the task tray and choose Administrator Password Lock Reset.

  • Page 11: Integrating Microsoft Exchange With Ca Server

    Input the Exchange Server user account of the administrator. Format: [user name]@[domain name] Example: If the administrator's user account name is "admin", and the domain for the Exchange server is "test.panasonic.com", enter "admin@test.panasonic.com". • Exchange administrator password Enter keywords and select associated presences from the drop-down list.

  • Page 12

    In the user account's field for Exchange User Account, enter the user's Exchange account name. Format: [user name]@[domain name] Example: If the user account name is "user123", and the domain for the exchange server is "test.panasonic.com", enter "user123@test.panasonic.com". Click OK. Repeat this procedure for each user profile.

  • Page 13: System Connection Diagram

    The figure below illustrates an example network setup using CA Server. LAN/VPN Other Connections Telephone Company Panasonic PBX CA Server Panasonic Network Camera Voice Processing System (KX-NCP/KX-TDE series PBXs only) PC running CA Client Proprietary Telephone or Single Line Telephone Doorphone and Door Opener IP Proprietary Telephone or SIP Phone...

  • Page 14: System Requirements

    3 System Requirements The information below summarises the minimum system requirements for running CA Server. PC and Network Specifications PC Specifications When running 1 CA Server When running more than 1 CA Server 2.0 GHz Intel Pentium /Celeron 2.0 GHz Intel Core™ 2 Duo processor or ®...

  • Page 15

    PMMPR Software File Version 4.1000 or later KX-TDE600 PGMPR Software File Version 4.1000 or later KX-NS1000 PCMPR Software File Version 001.00000 or later Activation Keys Activation keys are files that need to be registered to your PBX with the PC Maintenance Console. For details on how to install activation keys, refer to your PBX’s Installation Manual.

  • Page 16: Starting Ca Server

    4.1 Installing CA Server 4 Starting CA Server 4.1 Installing CA Server Double-click the setup program according to your operating system configuration: • 32-bit version: Setup(World).exe • 64-bit version: Setup64(World).exe Follow the on-screen guidance to install CA Server. Notice CA Server installs a Web server program onto the computer. If another Web server program is already installed on the computer, it may cause a conflict with CA Server.

  • Page 17

    Backup Database or Restore Database functions. Be sure to record this information for later reference. • When setting up CA Server for use with a One-look network of KX-NS1000 PBXs, specify the IP address and port number of the Master unit. Quick Reference Guide...

  • Page 18

    4.1 Installing CA Server From the server selection window, click to connect to the PBX. You can also edit the settings of another server. Once a server connection is active, you can click to stop it if necessary. CA Server Status Once CA Server is running and started on your computer, an icon will appear on the computer’s task tray: : CA Server is connected to the PBX and running.

  • Page 19

    Allow CA Server to run until the specified time has passed and a backup file will be saved in the location specified in Backup to. The default location is: "C:\Program Files\Panasonic\Communication Assistant\CA Server\Database\Backup". The backup file is saved with the file name "CAServerDatabase_Backup_yyyymmddhhmm.db". Copy this file to the computer running the latest version of CA Server.

  • Page 20: Starting Ca Web Manager

    4.2 Starting CA Web Manager Log in to CA Web Manager for a server set in step 4. Navigate to Restore Database, select Specified backup database file, and specify the location of the backup file created in step 1. Once the file is specified, click OK to restore and upgrade the database to use with the latest version of CA Server.

  • Page 21

    4.2 Starting CA Web Manager Note • The server connection must be active to make changes to most CA Web Manager settings. If a server connection is not active, click to start it before logging in. • Depending how you access CA Web Manager, on the login screen you may need to specify which CA Server (1 through 4, as in the server selection window) to log in to.

  • Page 22: Uninstalling Ca Server

    4.3 Uninstalling CA Server To uninstall CA Server, perform one of the following procedures: • From the Start menu, point to All Programs ® Panasonic ® Communication Assistant ® CA Server, and select Uninstall. • From the Control Panel, double-click Add or Remove Programs, select CA Server, and then click Remove.

  • Page 23: Open Source Software Licences

    5 Open Source Software Licences This software includes certain file licensed under the a) revised BSD license, b) OpenSSL license, c) SSLayer license, d) PHP License, e) Zend Engine License, f) GNU General Public License. a) Copyright (c) 2004, Jan Kneschke, incremental. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: - Redistributions of source code must retain the above copyright notice, this list of conditions and the...

  • Page 24

    permission of the OpenSSL Project. * 6. Redistributions of any form whatsoever must retain the following acknowledgment: "This product includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/)" * THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT ``AS IS'' AND ANY * EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE * IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR * PURPOSE ARE DISCLAIMED.

  • Page 25

    notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution. * 3. All advertising materials mentioning features or use of this software must display the following acknowledgement: "This product includes cryptographic software written by Eric Young (eay@cryptsoft.com)"...

  • Page 26

    conjunction with PHP by saying "Foo for PHP" instead of calling it "PHP Foo" or "phpfoo" 5. The PHP Group may publish revised and/or new versions of the license from time to time. Each version will be given a distinguishing version number. Once covered code has been published under a particular version of the license, you may always continue to use it under the terms of that version.

  • Page 27

    4. Zend Technologies Ltd. may publish revised and/or new versions of the license from time to time. Each version will be given a distinguishing version number. Once covered code has been published under a particular version of the license, you may always continue to use it under the terms of that version.

  • Page 28

    1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan Panasonic System Networks Co., Ltd. 2010 PSQX5053VA KK0709DV4121...
