3.27.2 Vector Display at POSN1

The COG vector (vector of the vessel's motion over the ground), HDG vector (vector of the vessel's
motion through the water) can be displayed for your ship's symbol.
The COG and HDG vectors can be displayed at lengths proportional to the ship's current speed in
minutes. For example, if the vector length is set as 10 minutes, the tip of the vector is the expected
position in 10 minutes assuming that the ship sails at the current speed.
Vector length
Vector time mark
1) In the normal menu
Select [MENU] - [(4) Ownship/Track] - [(0) Setting] in that order.
The "Own Ship Setting" panel is displayed.
2) Set each item on the "Vector" area.
To display the heading line ON/OFF, left-click the [Display Ground-Referenced Velocity] on the
[Display Ground-Water-Referenced Velocity]. Then, left-click the [OK] on the "Own Ship
Setting" panel. Then, the panel will close.
ｚ
3 Basic Operation of ECDIS

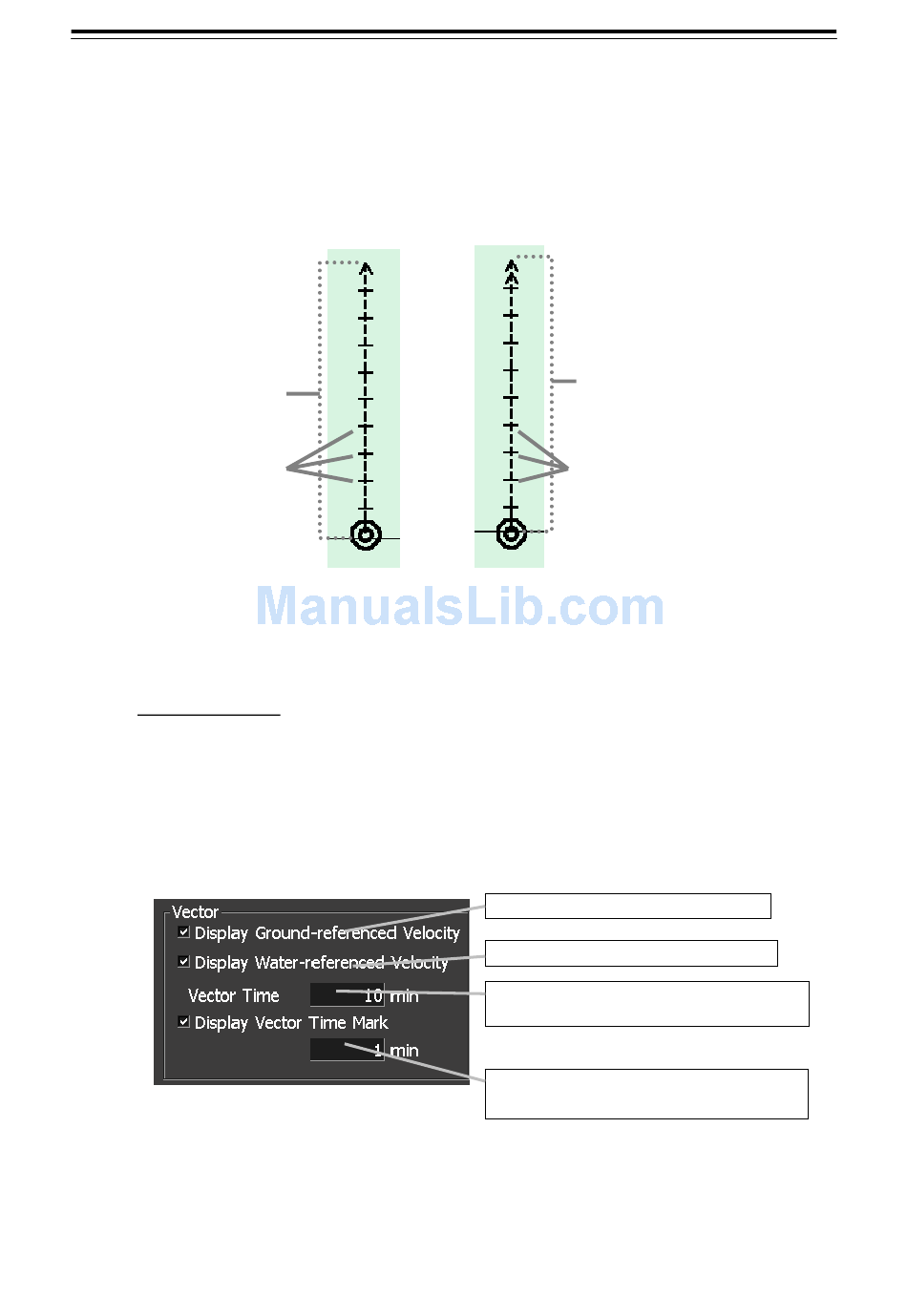

HDG vector COG vector
[Vector Display and Heading line]
COG/HDG vector time until the ship reaches
the expected position. (Min.1min,Max. 60 min.)
Turns ON/OFF the Vector Time Mark display.
(Min.1min,Max.6min)
3-154
Vector length
Vector time mark
Turns ON/OFF the COG vector display.
Turns ON/OFF the HDG vector display.
