Fan Module LED

Part
2
3
4
5
Related Information
"Determine Which Fan Module Is Faulty" on page 146
■
"Remove a Fan Module" on page 147
■
"Install a Fan Module" on page 149
■
"Verify a Fan Module" on page 150
■
Fan Module LED

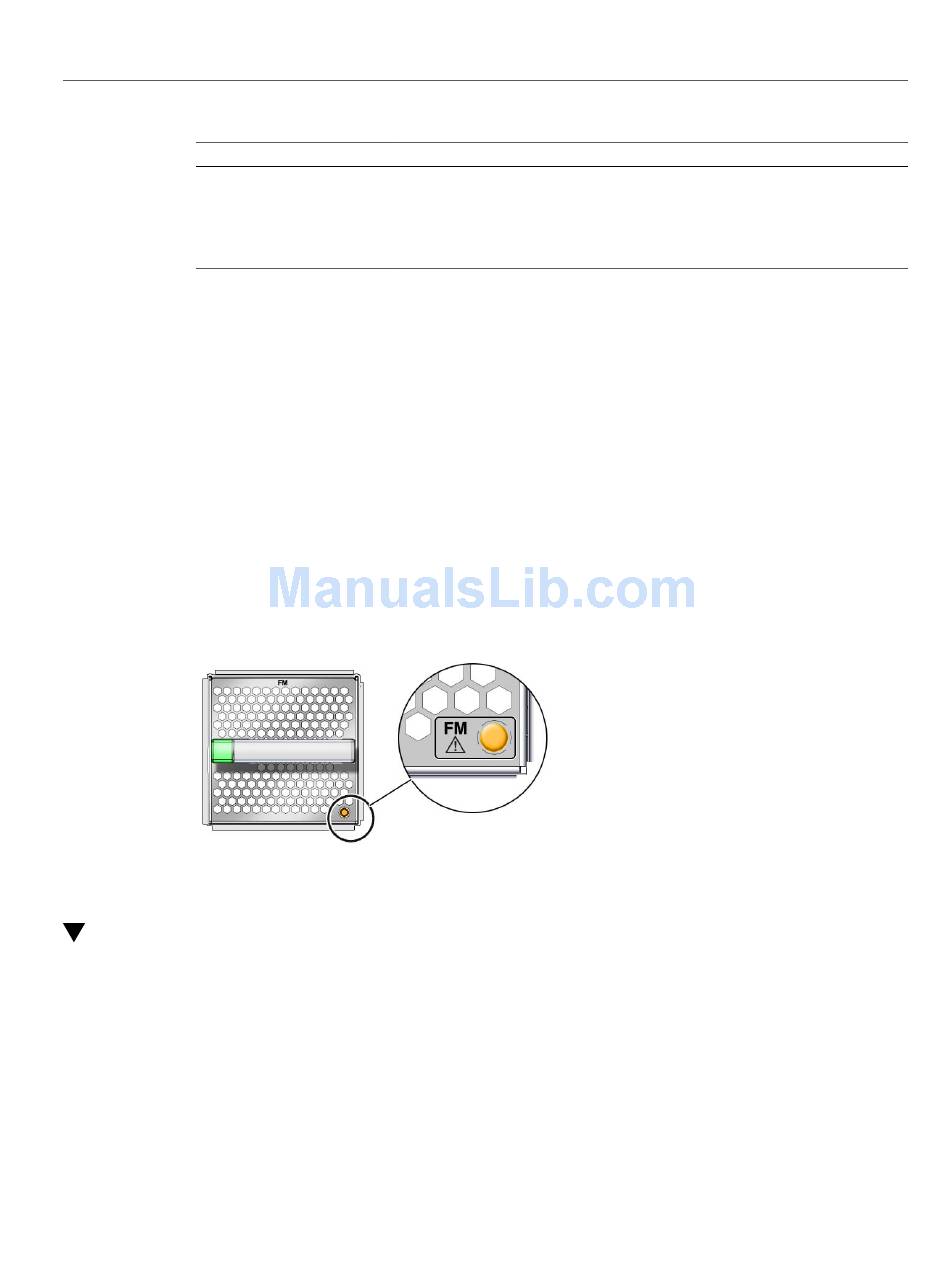

Each fan module has a single Service Required LED.

Determine Which Fan Module Is Faulty

The following LEDs are illuminated when a fan module fault is detected:
System Service Required LEDs on the front panel and rear I/O module
■
Server Fan Fail LED on the front panel
■
Service Required LED on the faulty fan module
■
Determine if the System Service Required LEDs are illuminated on the front
1.
panel or the rear I/O module.
146 SPARC T5-4 Server Service Manual • July 2016
Description
Fan module 1
Fan module 2
Fan module 3
Fan module 4
