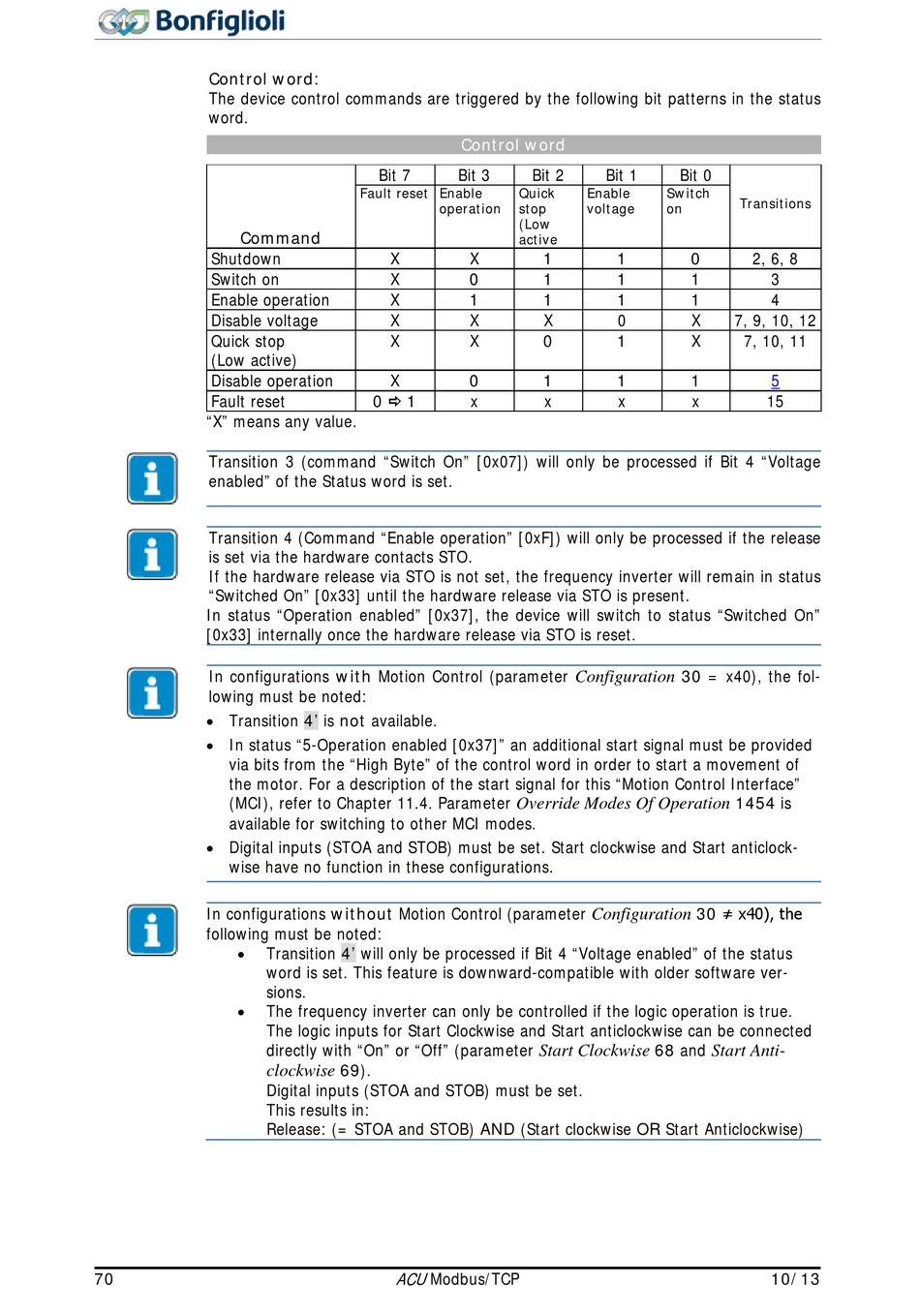

BONFIGLIOLI Active cube Operation Manual page 72

Control word:
The device control commands are triggered by the following bit patterns in the status
word.
Command
Shutdown
Switch on
Enable operation
Disable voltage
Quick stop
(Low active)
Disable operation
Fault reset
"X" means any value.
Transition 3 (command "Switch On" [0x07]) will only be processed if Bit 4 "Voltage
enabled" of the Status word is set.
Transition 4 (Command "Enable operation" [0xF]) will only be processed if the release
is set via the hardware contacts STO.
If the hardware release via STO is not set, the frequency inverter will remain in status
"Switched On" [0x33] until the hardware release via STO is present.
In status "Operation enabled" [0x37], the device will switch to status "Switched On"
[0x33] internally once the hardware release via STO is reset.
In configurations with Motion Control (parameter
lowing must be noted:
• Transition 4' is not available.
• In status "5-Operation enabled [0x37]" an additional start signal must be provided
via bits from the "High Byte" of the control word in order to start a movement of
the motor. For a description of the start signal for this "Motion Control Interface"
(MCI), refer to Chapter 11.4. Parameter
available for switching to other MCI modes.
• Digital inputs (STOA and STOB) must be set. Start clockwise and Start anticlock-
wise have no function in these configurations.
In configurations without Motion Control (parameter
following must be noted:
Transition 4' will only be processed if Bit 4 "Voltage enabled" of the status
•
word is set. This feature is downward-compatible with older software ver-
sions.
• The frequency inverter can only be controlled if the logic operation is true.
The logic inputs for Start Clockwise and Start anticlockwise can be connected
directly with "On" or "Off" (parameter
clockwise
Digital inputs (STOA and STOB) must be set.
This results in:
Release: (= STOA and STOB) AND (Start clockwise OR Start Anticlockwise)
70
Control word
Bit 7 Bit 3
Fault reset Enable
operation
X X
X 0
1
X
X X
X X
0
X
0  1
x
69).
ACU
Modbus/TCP
Bit 2 Bit 1 Bit 0
Quick Enable Switch
stop voltage on
(Low
active
1 1
1 1
1 1
X 0
0 1
1 1
x x
30 = x40), the fol-
Configuration
Override Modes Of Operation
Configuration
68 and
Start Clockwise
Transitions
0
2, 6, 8
1 3
1
4
X 7, 9, 10, 12
X 7, 10, 11
1
5
x 15
1454 is
30 ≠ x40), the
Start Anti-
10/13
