BONFIGLIOLI Active cube Operation Manual page 70

15 14 13 12 11 10 9
Bit 14 is not used.
Status word bits 12 and 13 "Operation mode specific" are only used in positioning con-
trol configurations (Parameter
ACTIVE CUBE frequency inverters support an external 24 V power supply for the in-
verter control electronics. Even when mains voltage is disconnected, communication
between the controller (PLC) and the frequency inverter is still possible.
Bit 4 "Voltage enabled" of the status word shows the current mains power supply sta-
tus:
Bit 4 Voltage enabled" = 0 signals "No mains voltage", starting of drive not possible.
Bit 4 "Voltage enabled" = 1 signals "Mains voltage on", drive ready for start.
68

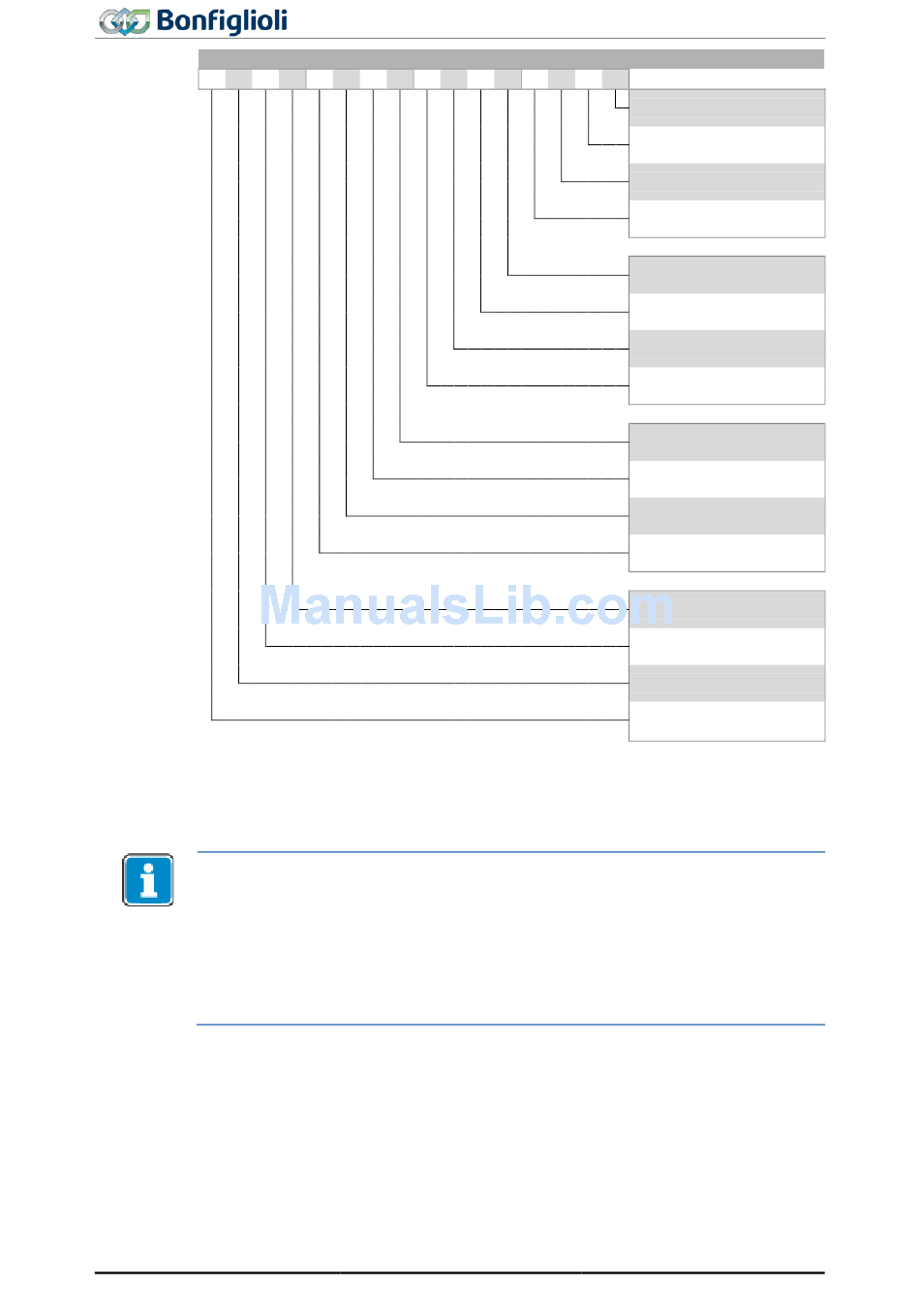

Status word
8 7 6 5 4 3 2
30 = x40).
Configuration
ACU
Modbus/TCP
1 0 Bit
0 Ready to switch on
1
Switched on
2
Operation enabled
3
Fault
4 Voltage enabled
5 Quick stop (Low active)
6 Switch on disabled
7 Warning
8
Manufacturer specific
9
Remote
10 Target reached
11 Internal limit active
12 Operation mode specific
13
Operation mode specific
14
Manufacturer specific
Manufacturer specific
15
Warning 2
10/13
