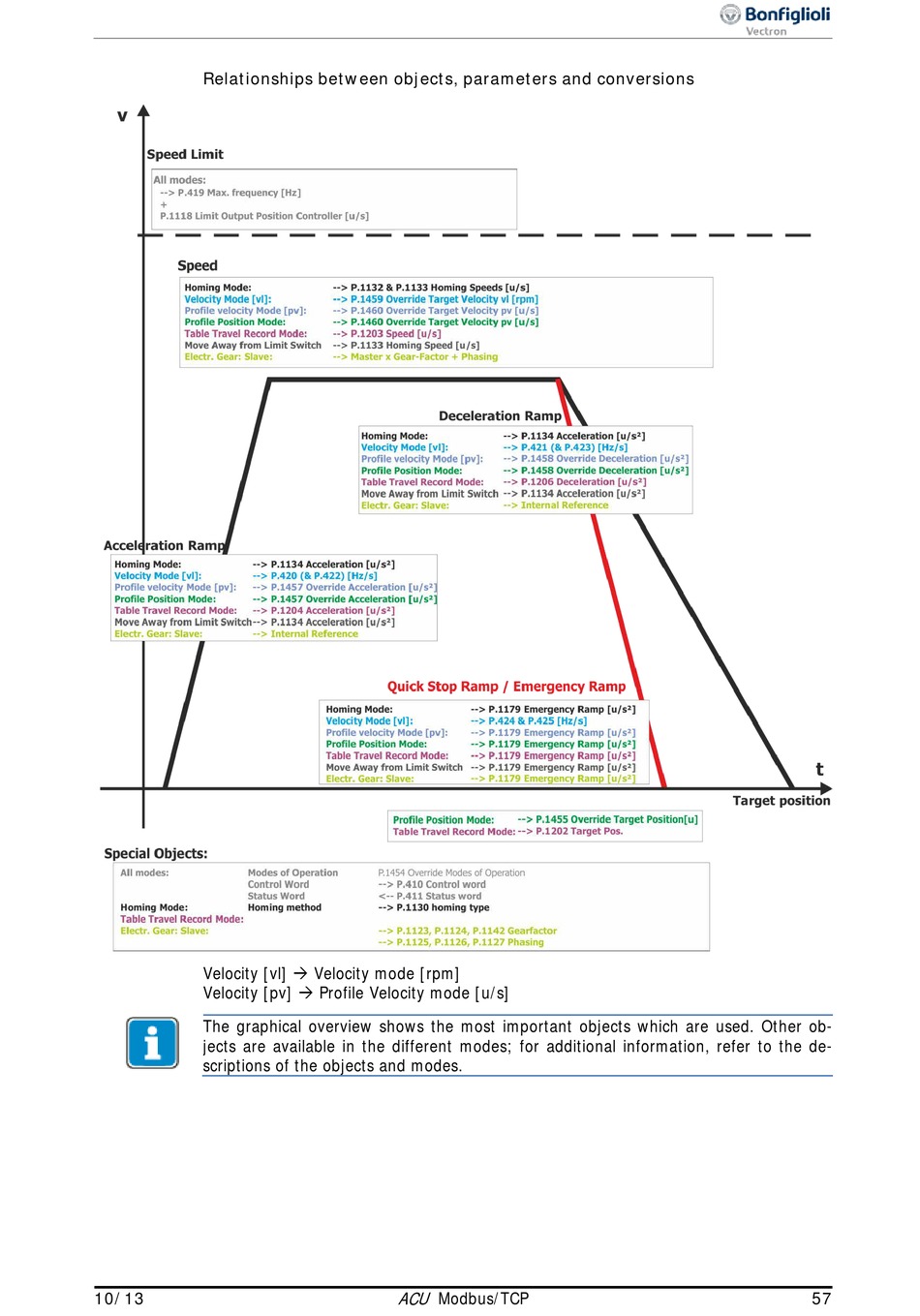

Relationships between objects, parameters and conversions
Velocity [vl] Velocity mode [rpm]
Velocity [pv] Profile Velocity mode [u/s]
The graphical overview shows the most important objects which are used. Other ob-
jects are available in the different modes; for additional information, refer to the de-
scriptions of the objects and modes.
10/13
ACU
57
Modbus/TCP
