15 14 13 12 11 10 9
If operation mode "Control via remote contacts" is used, controller release must be
turned on at STOA (Terminal X210A.3) and STOB (Terminal X210B.2) and Bit 0 of the
control word must be set in order to be able to start the drive.
Operation modes "Control via contracts" and "Control via remote contacts" only sup-
modes of operation
port
ACTIVE CUBE frequency inverters support an external 24 V power supply for the fre-
quency inverter control electronics. Even when mains voltage is disconnected, com-
munication between the controller (PLC) and the frequency inverter is still possible.
Bit 4 "Power supply – enabled" of the status word shows the current mains power
supply status:
Bit 4 "Power supply – enabled" = 0 signals "No mains voltage", starting of drive not
possible.
Bit 4 "Power supply – enabled" = 1 signals "Mains voltage on", drive ready for start-
ing.
10/13

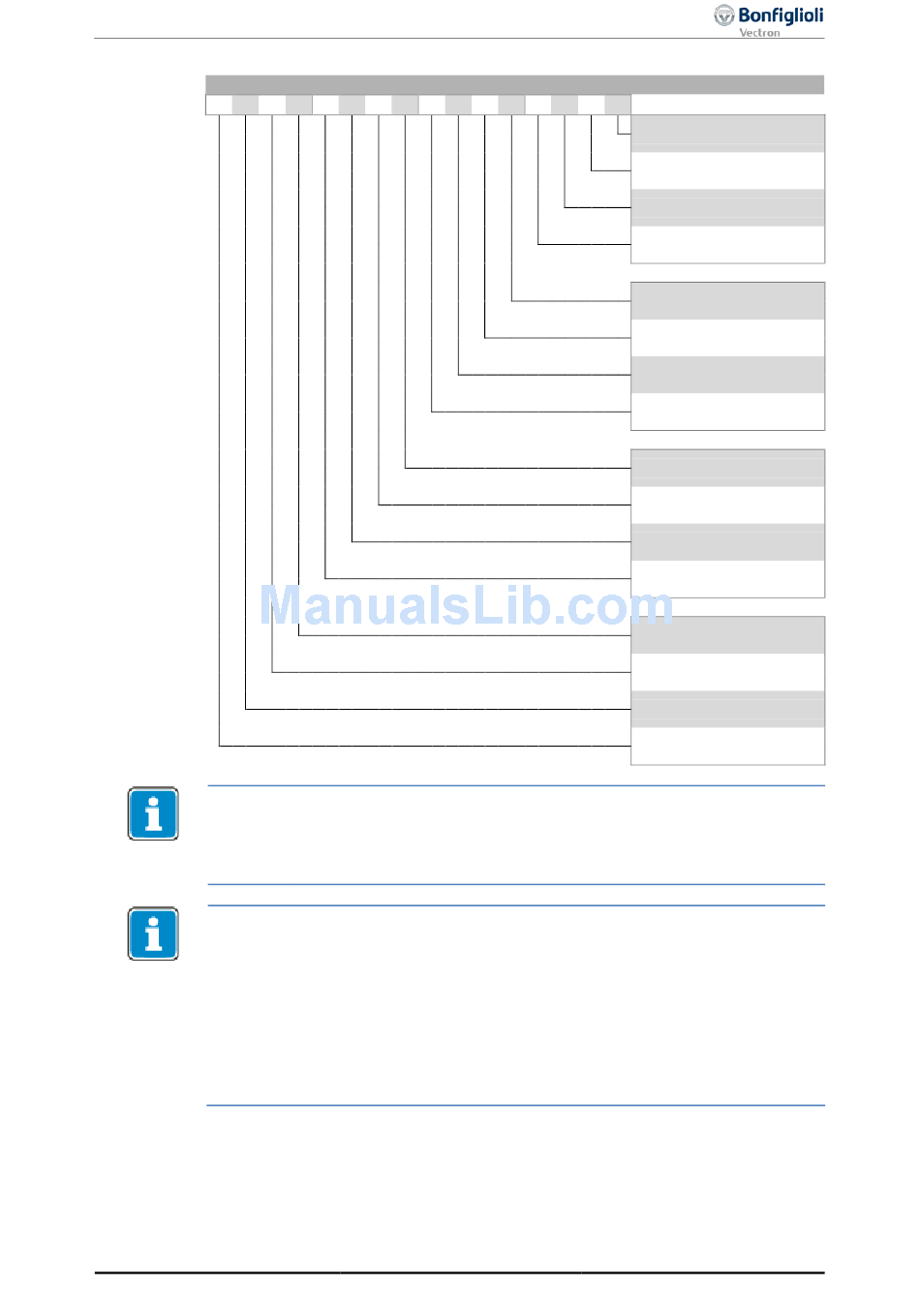

Status word
8 7 6 5 4 3 2
= "velocity mode".
ACU
Modbus/TCP
1 0 Bit
0 Ready to switch on
1 Switched on
2 Operation enabled
3 Fault
4
Voltage enabled
5
Quick stop (Low active)
6 Switch on disabled
7 Warning
8 -
9
Remote
10
Target reached
11
Internal limit active
12 -
13 -
14 -
15 Warning 2
65
