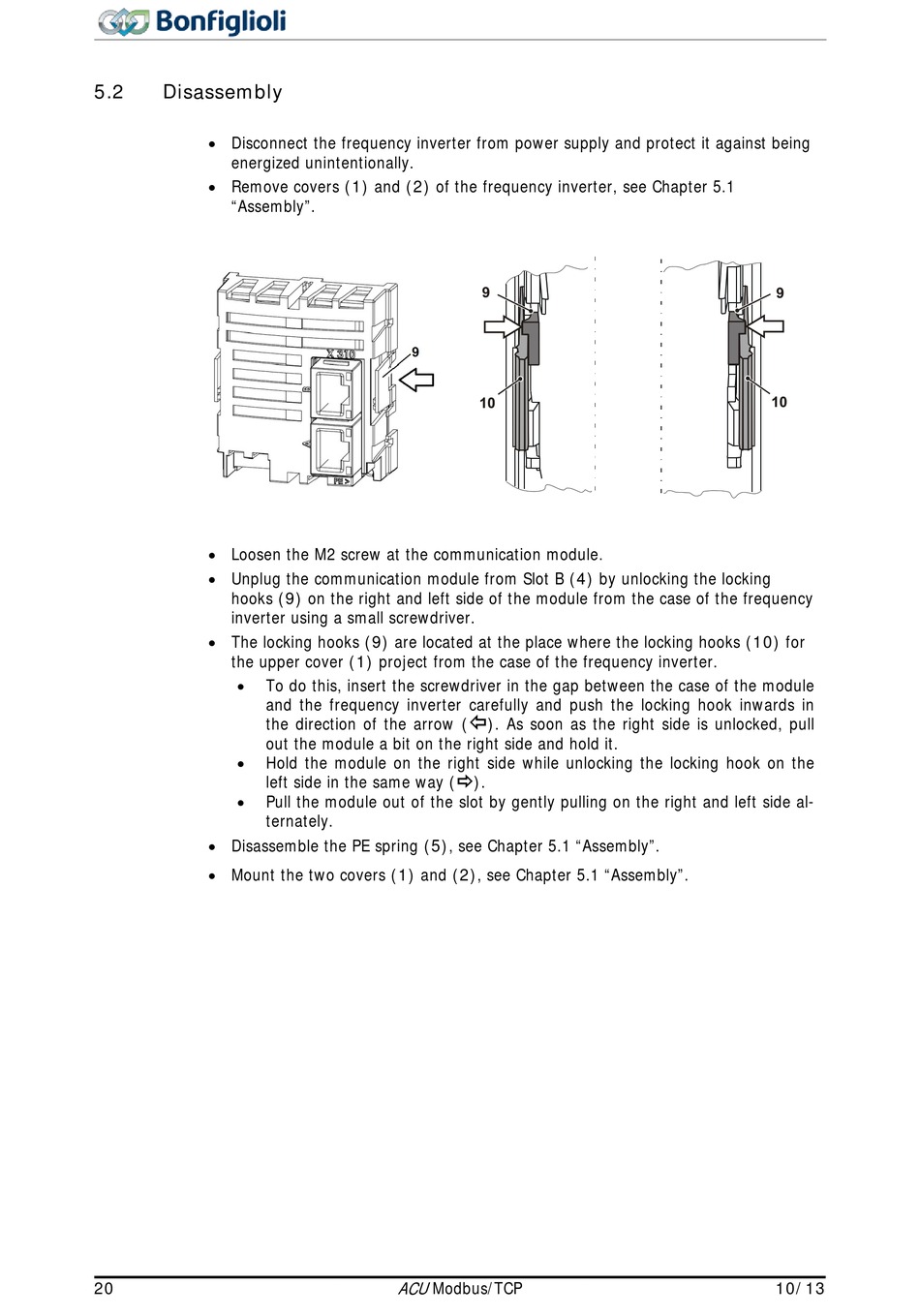

5.2

Disassembly

• Disconnect the frequency inverter from power supply and protect it against being
energized unintentionally.
• Remove covers (1) and (2) of the frequency inverter, see Chapter 5.1
"Assembly".
• Loosen the M2 screw at the communication module.
• Unplug the communication module from Slot B (4) by unlocking the locking
hooks (9) on the right and left side of the module from the case of the frequency
inverter using a small screwdriver.
• The locking hooks (9) are located at the place where the locking hooks (10) for
the upper cover (1) project from the case of the frequency inverter.
To do this, insert the screwdriver in the gap between the case of the module
•
and the frequency inverter carefully and push the locking hook inwards in
the direction of the arrow (
out the module a bit on the right side and hold it.
Hold the module on the right side while unlocking the locking hook on the
•
left side in the same way (
Pull the module out of the slot by gently pulling on the right and left side al-
•
ternately.
• Disassemble the PE spring (5), see Chapter 5.1 "Assembly".
• Mount the two covers (1) and (2), see Chapter 5.1 "Assembly".
20

). As soon as the right side is unlocked, pull

).
