9.2.5

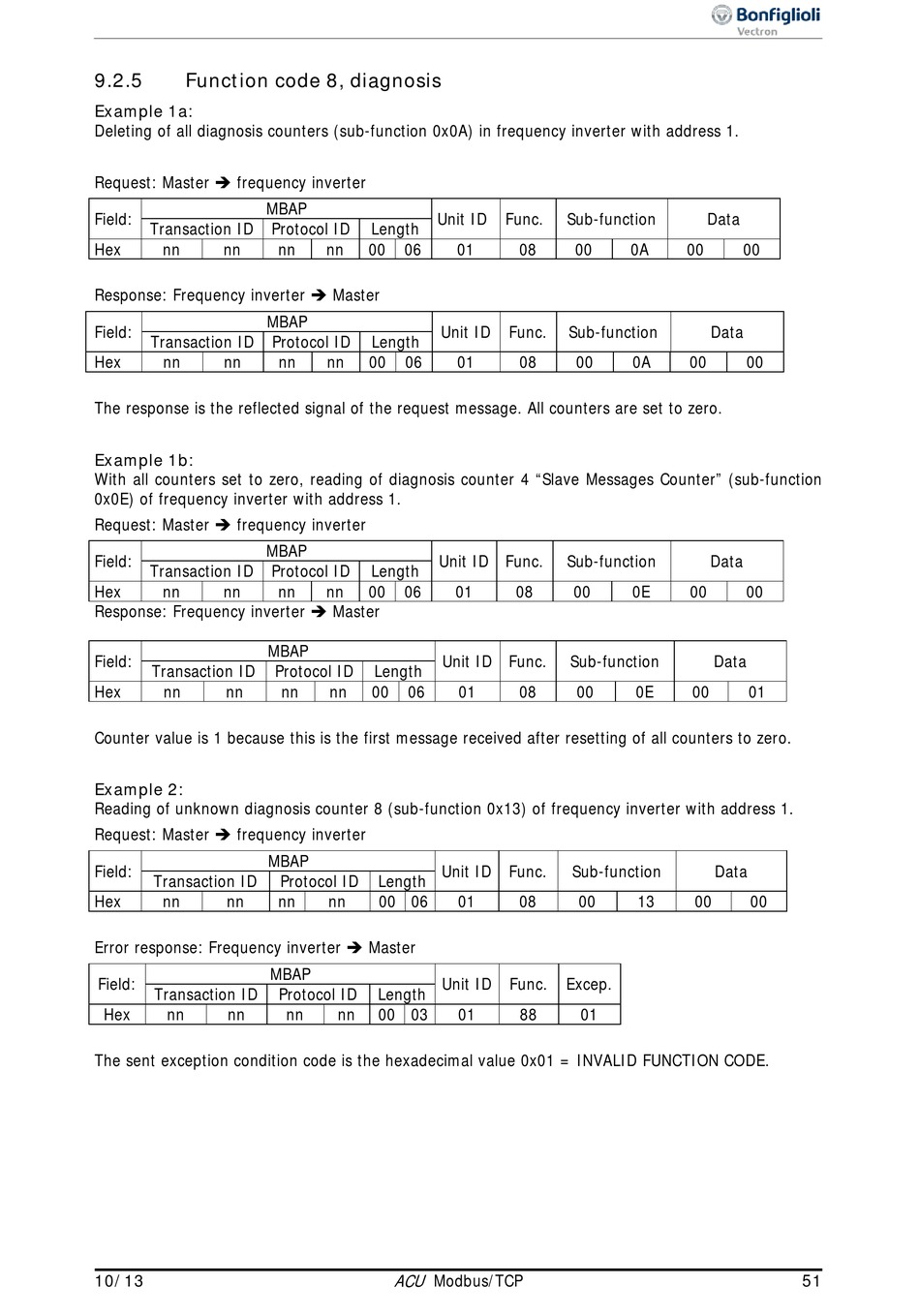

Function code 8, diagnosis

Example 1a:
Deleting of all diagnosis counters (sub-function 0x0A) in frequency inverter with address 1.
Request: Master  frequency inverter
MBAP
Field:
Transaction ID
Hex nn nn
Response: Frequency inverter  Master
MBAP
Field:
Transaction ID
Hex nn nn
The response is the reflected signal of the request message. All counters are set to zero.
Example 1b:
With all counters set to zero, reading of diagnosis counter 4 "Slave Messages Counter" (sub-function
0x0E) of frequency inverter with address 1.
Request: Master  frequency inverter
MBAP
Field:
Transaction ID
Hex nn nn
Response: Frequency inverter  Master
Field:
Transaction ID
Hex nn nn
Counter value is 1 because this is the first message received after resetting of all counters to zero.
Example 2:
Reading of unknown diagnosis counter 8 (sub-function 0x13) of frequency inverter with address 1.
Request: Master  frequency inverter
Field:
Transaction ID
Hex nn nn
Error response: Frequency inverter  Master
Field:
Transaction ID
Hex nn nn
The sent exception condition code is the hexadecimal value 0x01 = INVALID FUNCTION CODE.
