Remove Server From the Rack

Caution – The server weighs 65 lb (29.54 kg). If necessary, use two people to
dismount and carry the chassis.
1. Disconnect all the cables and power cords from the server.
2. Extend the server to the maintenance position.
See
3. Press the metal lever that is located on the inner side of the rail to disconnect
the cable management arm (CMA) from the rail assembly (
The CMA is still attached to the cabinet, but the server chassis is now
disconnected from the CMA.
FIGURE 2-13
4. From the front of the server, pull the release tabs forward and pull the server
forward until it is free of the rack rails (
A release tab is located on each rail.
2-28 Sun Fire X4270 M2 Server Service Manual • May 2011
Section 2.6.1, "Extend the Server to the Maintenance Position" on page

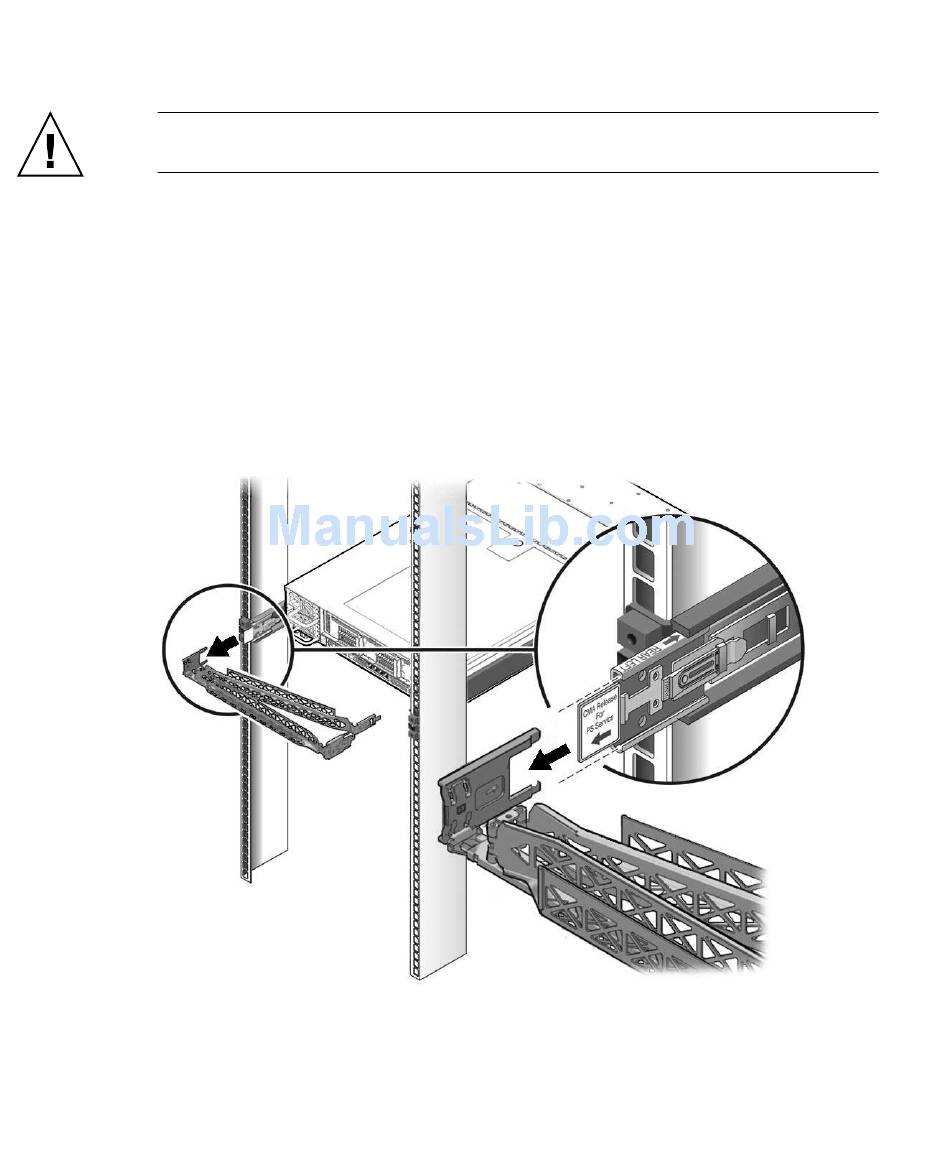

Metal Lever and Cable Management Arm
FIGURE 2-13
).
FIGURE 2-14
2-26.
).
