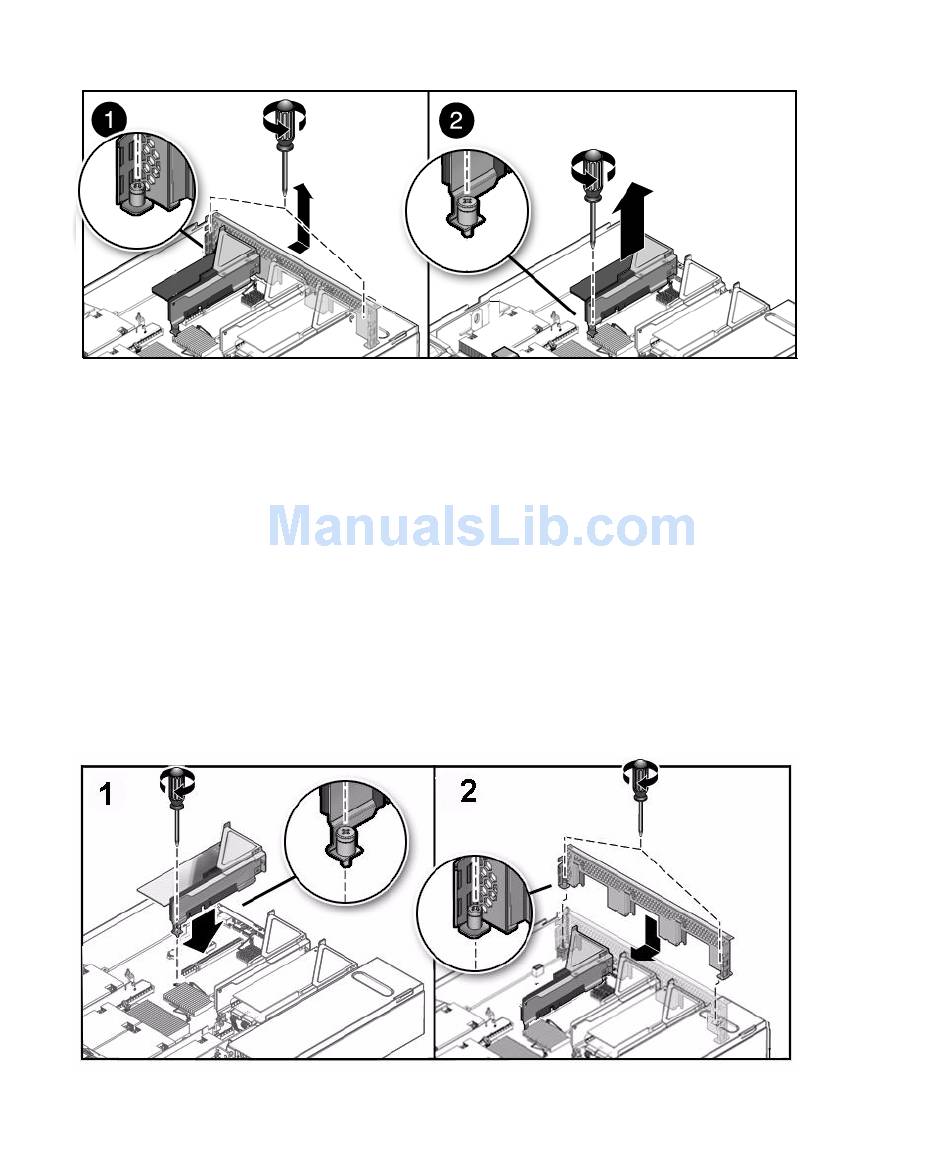

Removing a PCIe Riser
FIGURE 4-9
4.4.2

Install PCIe Riser

1. Lower the PCIe riser and any cards attached to it into the system (
[1]).
Slide the back of the riser into the motherboard back panel stiffener.
2. Tighten the screw that secures the riser to the motherboard [1].
3. Install the back panel PCI crossbar [2].
Slide the crossbar down over the PCIe risers. Secure the PCI crossbar to the chassis
with two captive Phillips screws.
Installing a PCIe Riser
FIGURE 4-10
Chapter 4 Servicing Motherboard Components
FIGURE 4-10
4-19
