A.5

Gigabit Ethernet Connectors

Four RJ-45 Gigabit Ethernet connectors (NET0, NET1, NET2, NET3) are located on
the system motherboard and can be accessed from the back panel. The Ethernet
interfaces operate at 10 Mbit/sec, 100 Mbit/sec, and 1000 Mbit/sec.

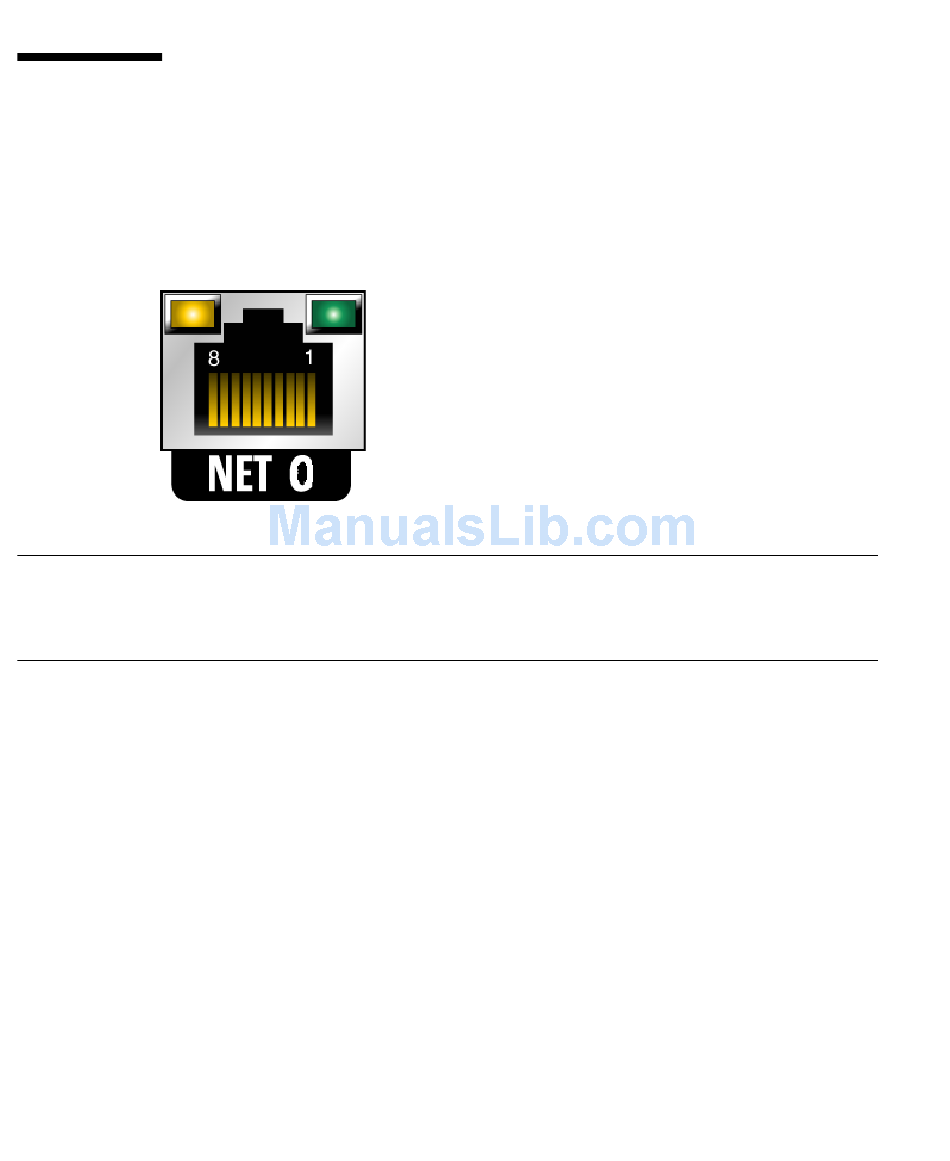

FIGURE A-5
Figure Legend
1 Transmit/Receive Data 0 +
2 Transmit/Receive Data 0 –
3 Transmit/Receive Data 1 +
4 Transmit/Receive Data 2 +
A-6 Sun Fire X4270 M2 Server Service Manual • May 2011
Gigabit Ethernet Connector Diagram
5 Transmit/Receive Data 2 –
6 Transmit/Receive Data 1 –
7 Transmit/Receive Data 3 +
8 Transmit/Receive Data 3 –
