Install Fan Board - Sun Oracle Sun Fire X4270 M2 Service Manual

e. Place the fan board on an antistatic mat.
Removing the Fan Board

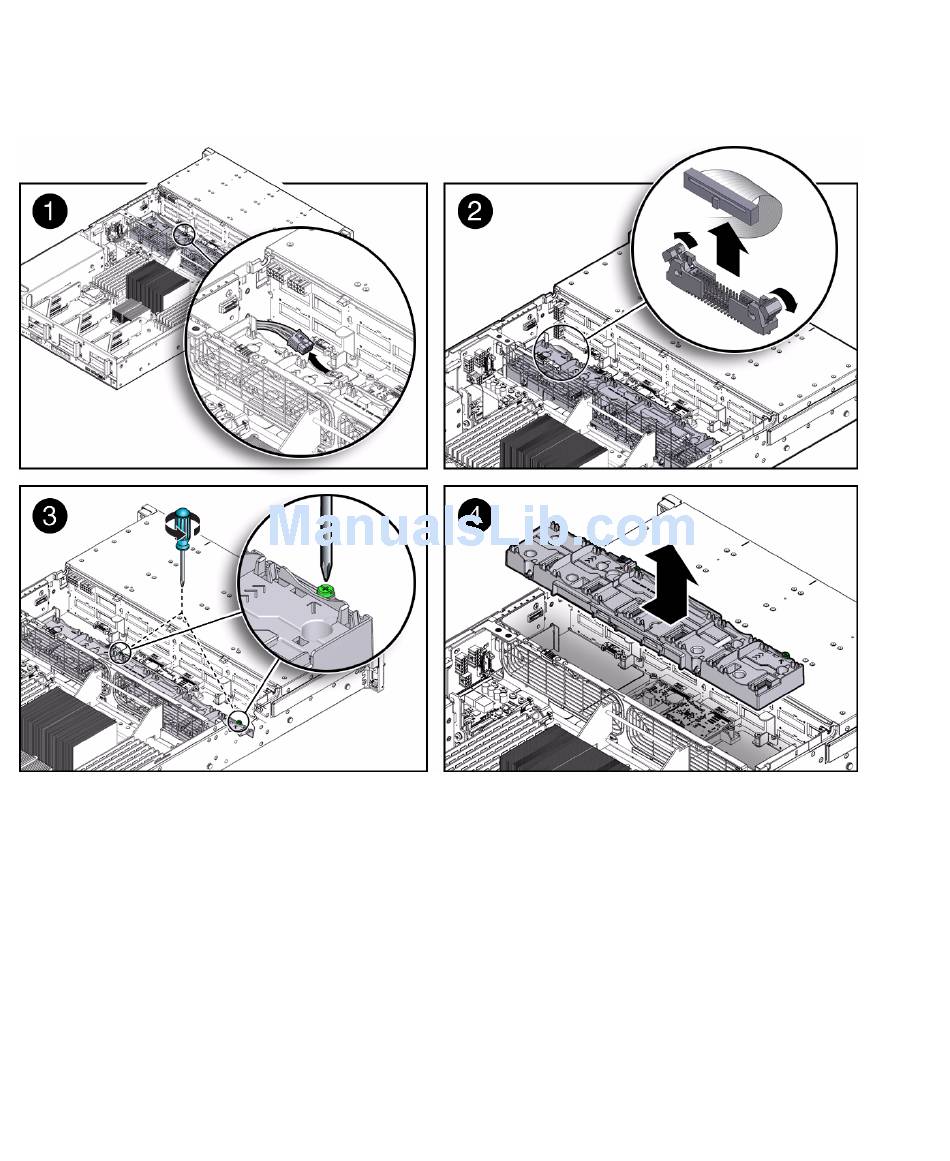

FIGURE 5-3
5.3.2

Install Fan Board

1. Install the fan board (
a. Lower the fan board into place in the chassis floor and slide it toward the rear
b. Secure the fan board to the chassis with the two green captive screws [2].
5-8 Sun Fire X4270 M2 Server Service Manual • May 2011
FIGURE 5-3
of the server to engage the mushroom standoffs [4].
).
